Maxton UC1A - THREAD TO GROOVED ADAPTER 2”, PORT ADAPTER 2” TO 3;4”

1728 Orbit Way - Minden, Nevada 89423 P: 775-782-1700 F: 775-782-1701 info@maxtonvalve.com www.maxtonvalve.com

99
\\SERVER\CATALOG2019\2019CatalogRev2


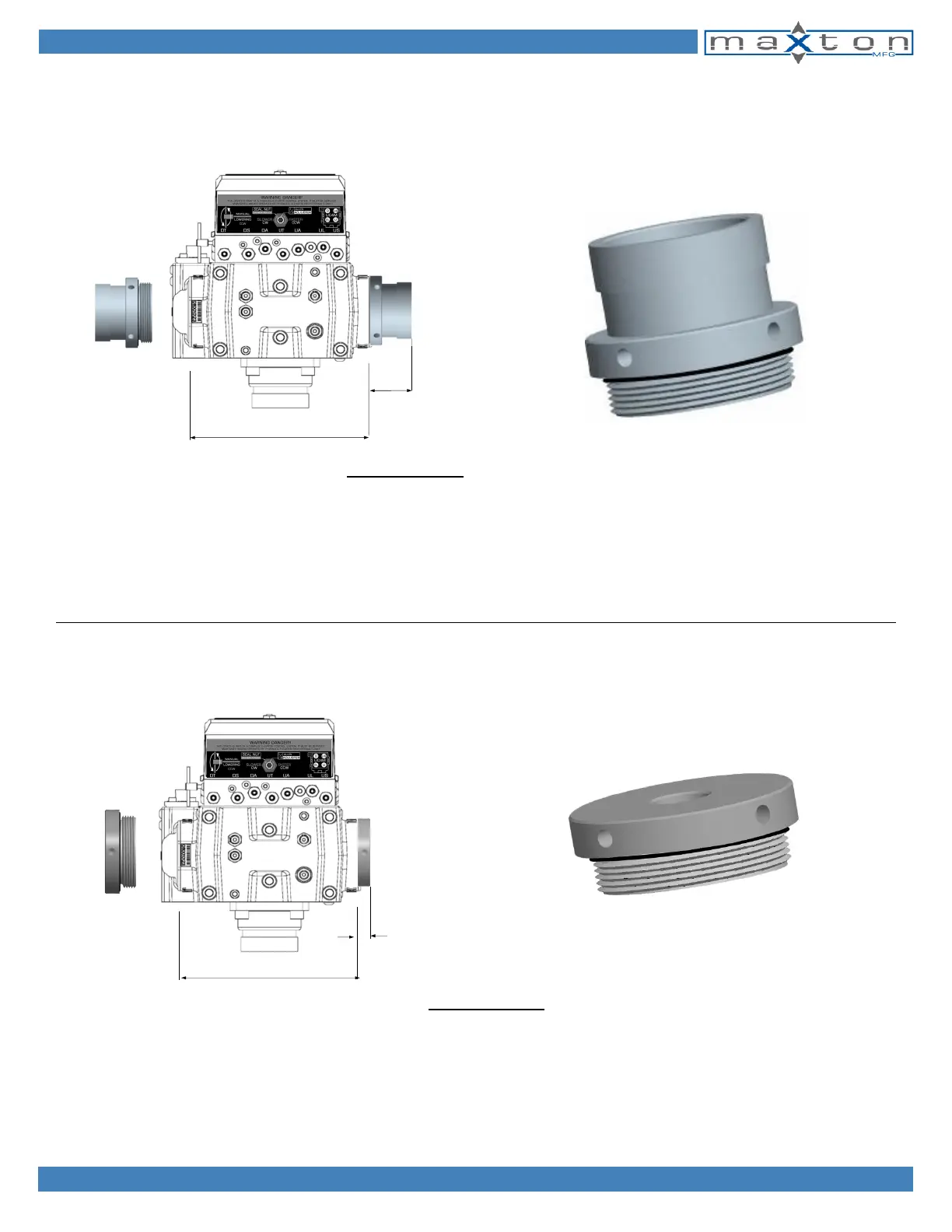

Maxton Thread to Grooved Adapters are another quality Maxton product that allows the UC4, UC4M, and UC4MR valve models to
be easily adapted for installation by providing the choice between threaded or Grooved connections on the jack and tank ports. The
seal ring design eliminates the need for sealant while providing a liquid and air tight seal.
DL
D
B
A
BPS
R
1 3/4"
(44mm)
7 5/8” (194mm)
(UC4M SHOWN)
Specifications
Standard Rated Contract Flow 185 gpm (700 I /min)
Max Operating Pressure 800 psi (55 bar)
Line Connections 2” Grooved
Max Operating Temperature 150° F (65° C)
Oil Type Hydraulic Fluid
Overall Dimensions Dia: 3 inches, Height: 2 ¼ inches, Weight: 1.1 lbs.
Maxton 2" to 3/4" Port Adapter Flange was designed for Residential/LULA or low flow hydraulic elevator applications using the UC4,
UC4M Series of Maxton Valves. These easy to install flanges use a seal ring design to insure proper sealing of the 2" side against
the Maxton valve while the 3/4" NPT side allows for the easy conversion of the valve to fit most Residential/LULA applications.
DL
D
B
A
BPS
R
75/8”(194mm)
1/2"
(13mm)
Specifications
Standard Rated Contract Flow 24 gpm (90.8 I /min)
Max Operating Pressure 800 psi (55 bar)
Line Connections 3/4" NPT
Max Operating Temperature 150° F (65° C)
Oil Type Hydraulic Fluid
Overall Dimensions Dia: 3 inches, Height: 1 inches, Weight: 1.25 lbs.
THREAD TO GROOVED ADAPTER 2”, PORT ADAPTER 2” TO 3/4”
