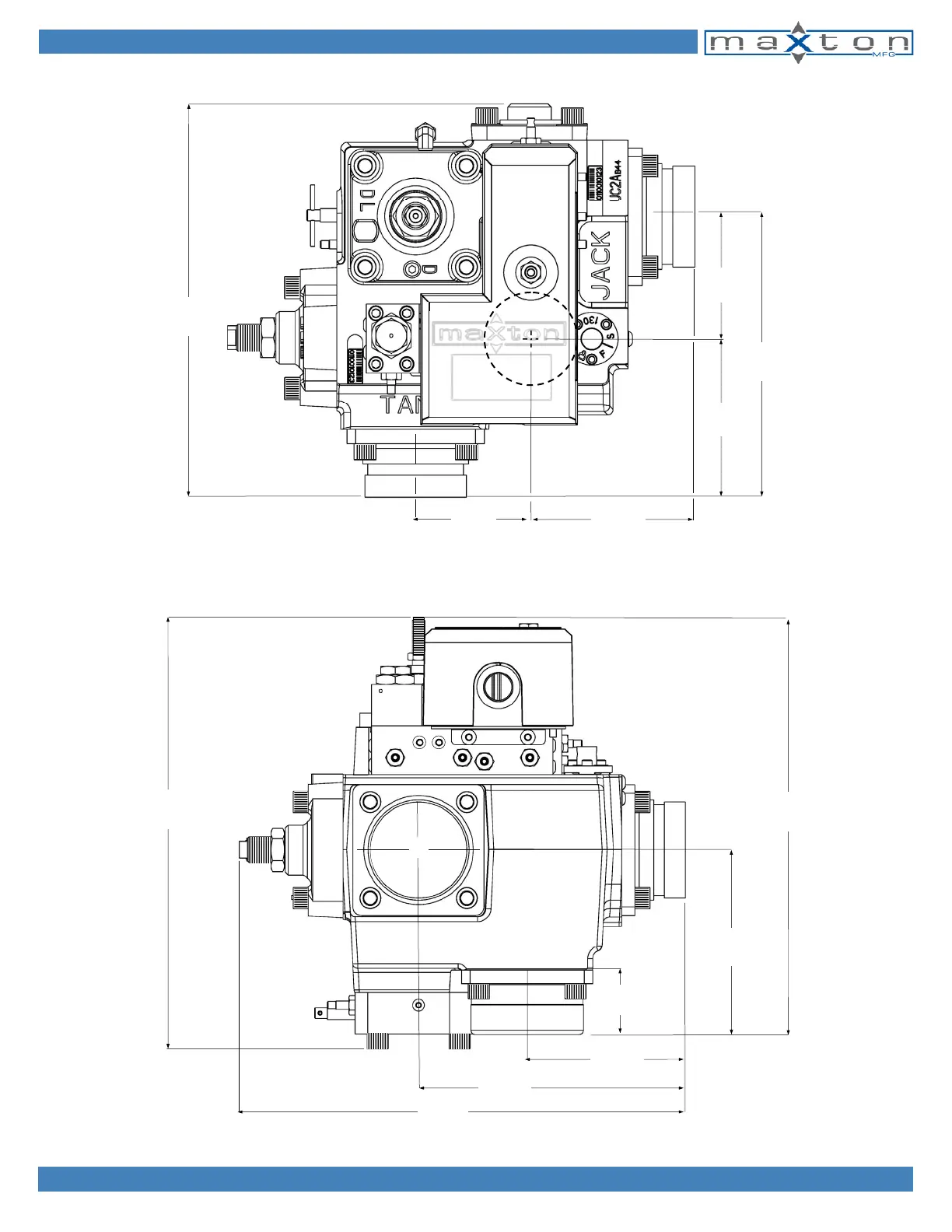

EXTERIOR DIMENSIONS UC2A
Top View
TANK
JACK
11 1/4"
(286mm)
3 1/8"
(79mm)
4 3/4"
(121mm)
3 1/2"
(89mm)
4 1/2"
(114mm)
8"
(203mm)
PUMP
Front View
JACK
TANK
12 3/8"
(314mm)
13"
(330mm)
+
7 7/8"
(200mm)
4 3/4"
(121mm)
5 3/8"
(137mm)
PUMP
(BELOW)
1 29/32"
(48mm)
12 3/4"
(324mm)
UA US
UL UT
