Maxton UC1A - HYDRAULIC SCHEMATIC UC1 A B44

1728 Orbit Way - Minden, Nevada 89423 P: 775-782-1700 F: 775-782-1701 info@maxtonvalve.com www.maxtonvalve.com

27
\\SERVER\CATALOG2019\2019CatalogRev2


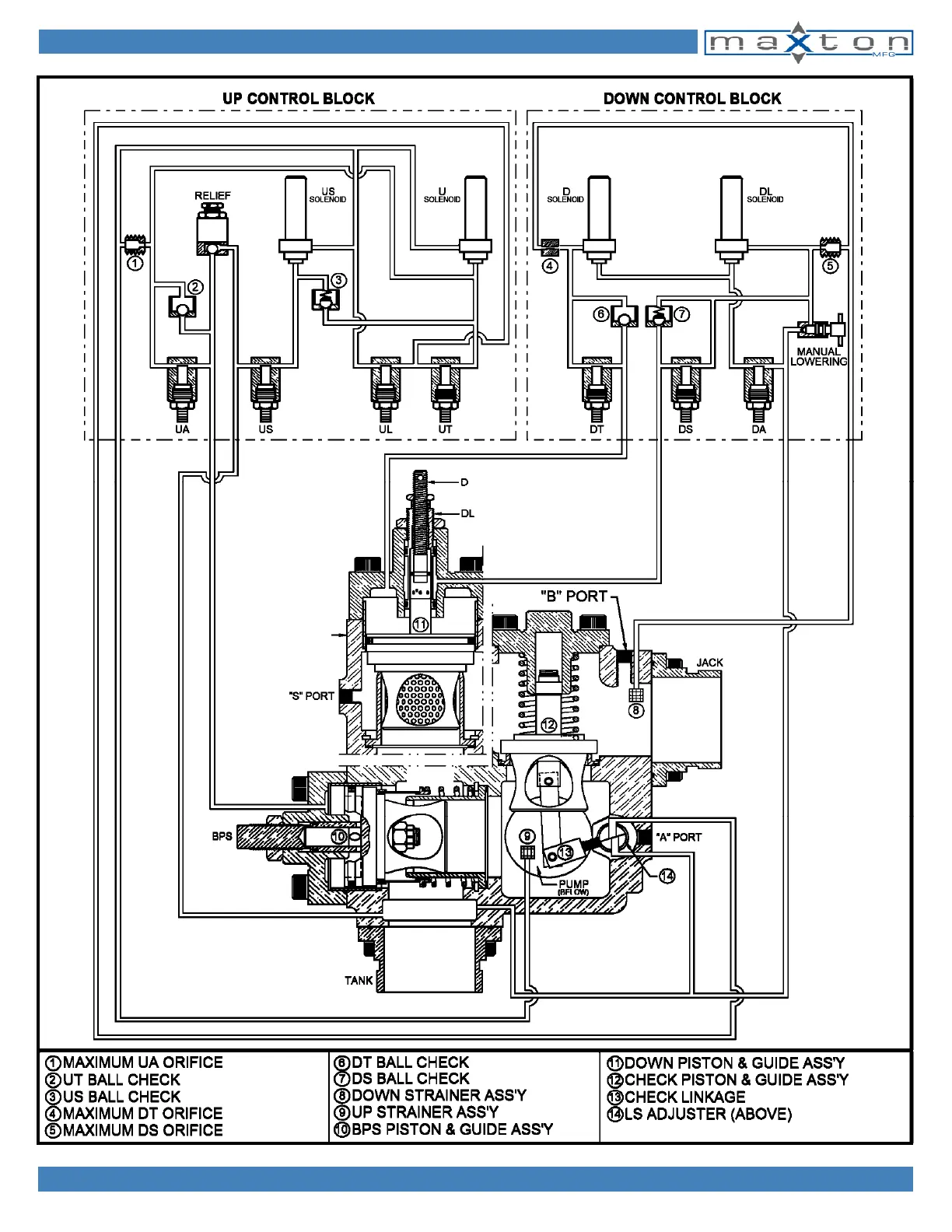

HYDRAULIC SCHEMATIC UC1A B44
NOTE:
THE DOWN VALVE IS
ROTATED 90° FOR
CLARITY
