Model 70149 Page 6
Parts List

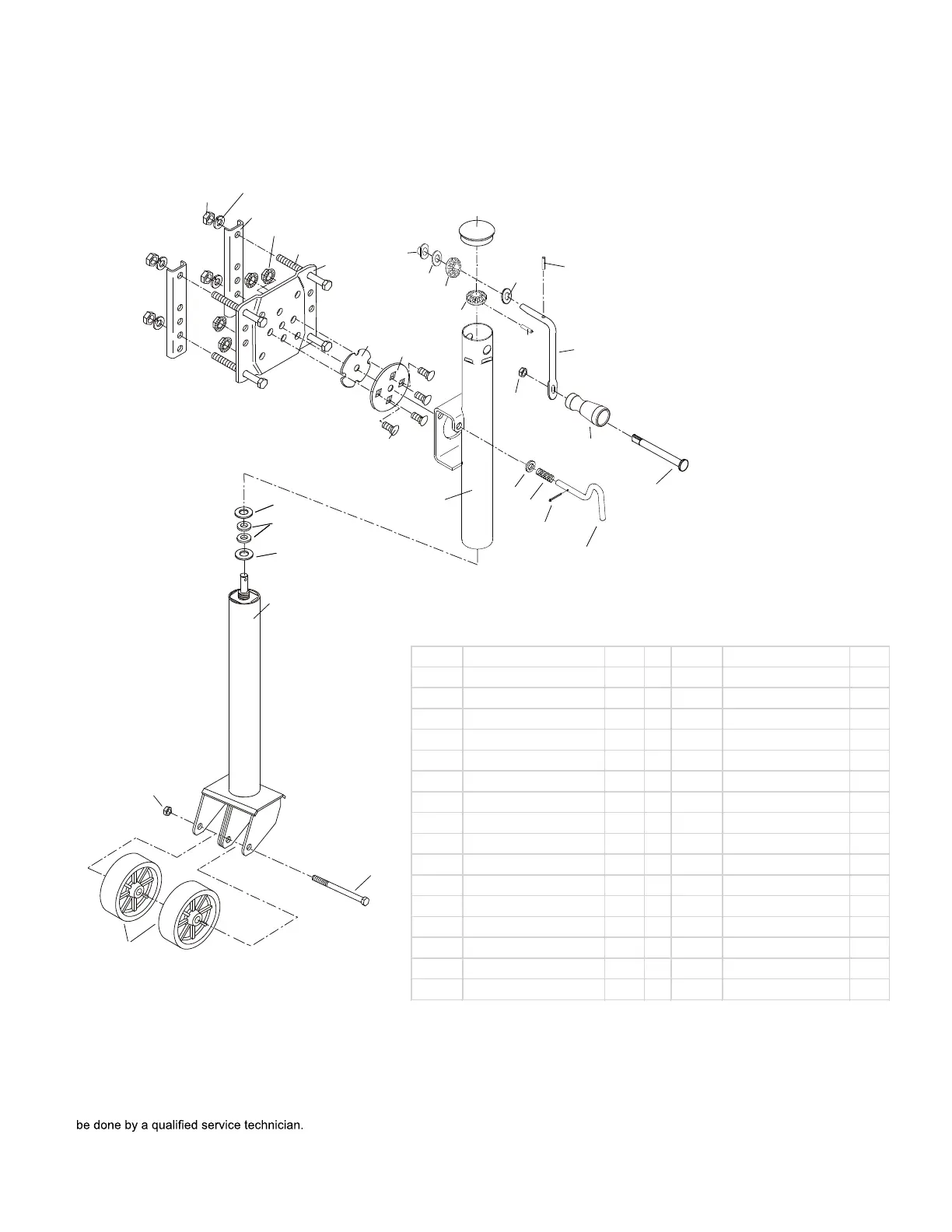

Assembly Diagram
Note: The Parts List and Assembly Diagram is provided as a reference tool only.
Some parts are listed and shown for illustration purposes only, and are not available
as replacement parts. All repairs to this tool (including replacing parts) should only
Part # Description Qty. Part # Description Qty.
1 Outer Tube Assembly 1 19 Washer 2
2 Inner Tube Assembly 1 20 Washer I 1
3 Handle 1 21 Washer II 1
4 Back Plate 2 22 Gear B 1
6 Rotating Plate 1 24 Bushing 1
8 Bolt M10 x 110 4 26 Handle Grip 1
10 Nut M10 4 28 Lock Nut M10 1
11 Plate A 1 29 Cotter Pin 1
12 Front Plate 1 30 Washer 13 1
13 Screw M10 x 25 4 31 Spring Washer 10 4
14 Lock Handle 1 32 Nut M10 4
15 Spring 1 33 Nylon Washer 13 2
16 Bolt M12 x 140 1 34 Lock Nut M12 1
7
21
23
9
3
22
25
32
31
4
8
10
12
6
13
11
24
28
26
27
1
30
15
29
14
20
19
19
33
2
34
5
16
