Maytag Services MDE5500A Series - Page 8

16027056 8 September 2006
©2006 Maytag Services
Series 67 to current
!
WARNING
To avoid risk of electrical shock, personal injury or death; disconnect power to dryer before servicing, unless
testing requires power.

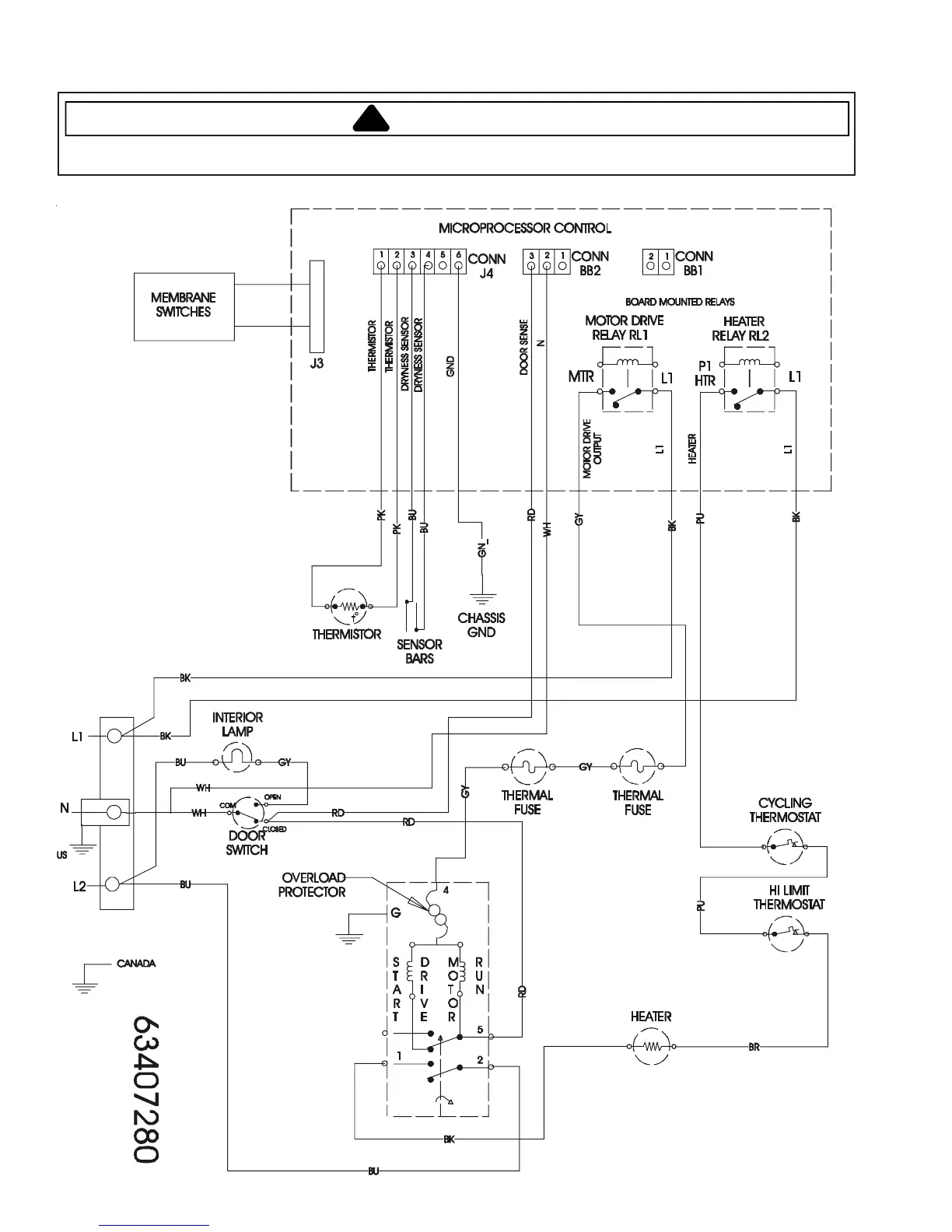

Wiring Schematics
