Maytag 12828186A - Door Removal & Replacement; Drawer Front Removal

7

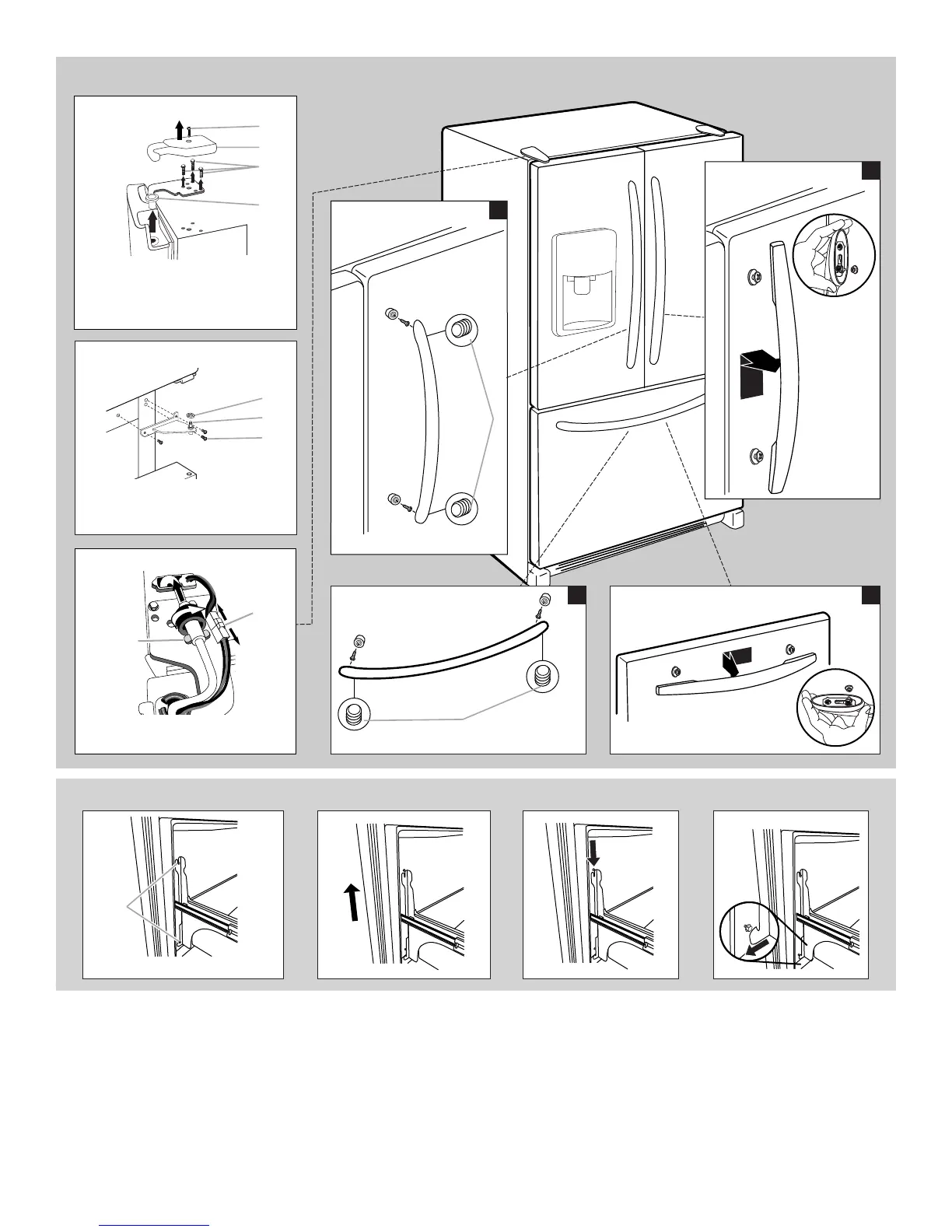

Drawer Front Removal
A. Loosen 4 Door Bracket Screws
A
Drawer Front Replacement
Door Removal & Replacement
Top Hinges
A. Hinge Cover Screw
B. Top Hinge Cover
C.
5
/ 16 " Hex-Head Hinge Screws
D. Top Hinge
B
A
C
D
A. Shim (on some models)
C. Hinge Screws
B. Bottom Hinge
Bottom Hinges
A
B
C
Connections
B. Wiring Plug
A. Tabs
A
B
A.
3
/ 32 " Set Screw
A.
3
/ 32 " Set Screw
A
A
Metal Handle
Metal Handle
Plastic Handle
Plastic Handle
1
1
22
