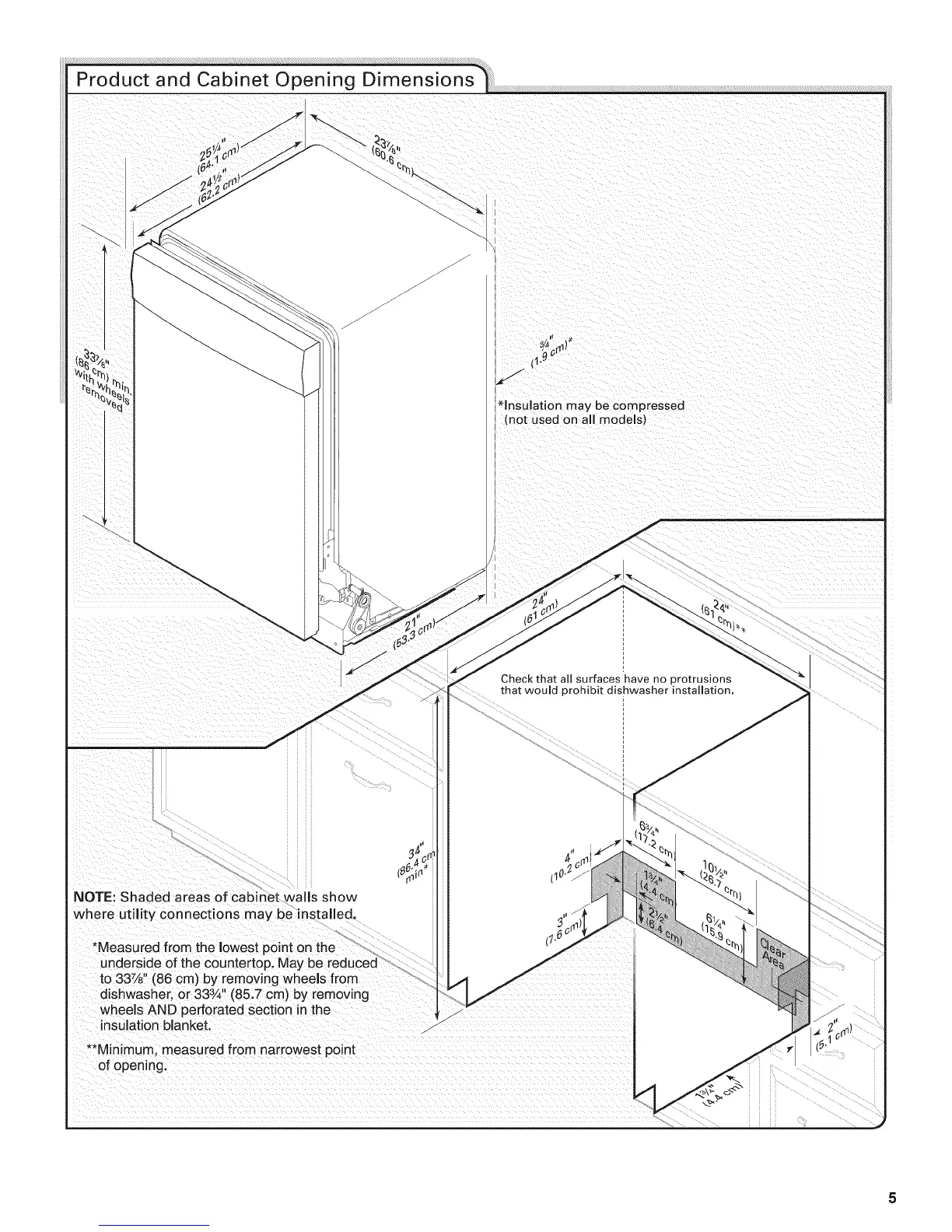

Product and Cabinet Opening Dimensions
*Insulation may be compressed
(not used on all models)
NOTE: Shaded areas of cabinet walls show
where utility connections may be installed.
*Measured from the lowest point on the ......._....
underside of the countertop. May be reduced
to 33%" (86 cm) by removing wheels from
dishwasher, or 333/2' (85.7 cm) by removing
wheels AND perforated section in the
insulation blanket.
:3_cr
t_rfli0
Check that all surfaces have no protrusions
that would prohibit dishwasher installation,
17.6
**Minimum, measured from narrowesl point
of opening.
