Remove and Replace Refrigerator Doors
NOTE: Measure the width of your door opening, to see whether or not you need to remove the refrigerator doors to move the
refrigerator into your home. If door removal is necessary, see the following instructions.
IMPORTANT: If the refrigerator was previously installed and you are moving it out of the home, before you begin, turn the refrigerator
control OFF. Unplug the refrigerator or disconnect power. Remove food and adjustable door or utility bins from doors.
Gather the required tools and read all instructions before removing doors.
TOOLS NEEDED: ³⁄₁₆" hex key wrench and a #2 Phillips screwdriver
WARNING
Electrical Shock Hazard
Disconnect power before removing doors.
Failure to do so can result in death or electrical shock.

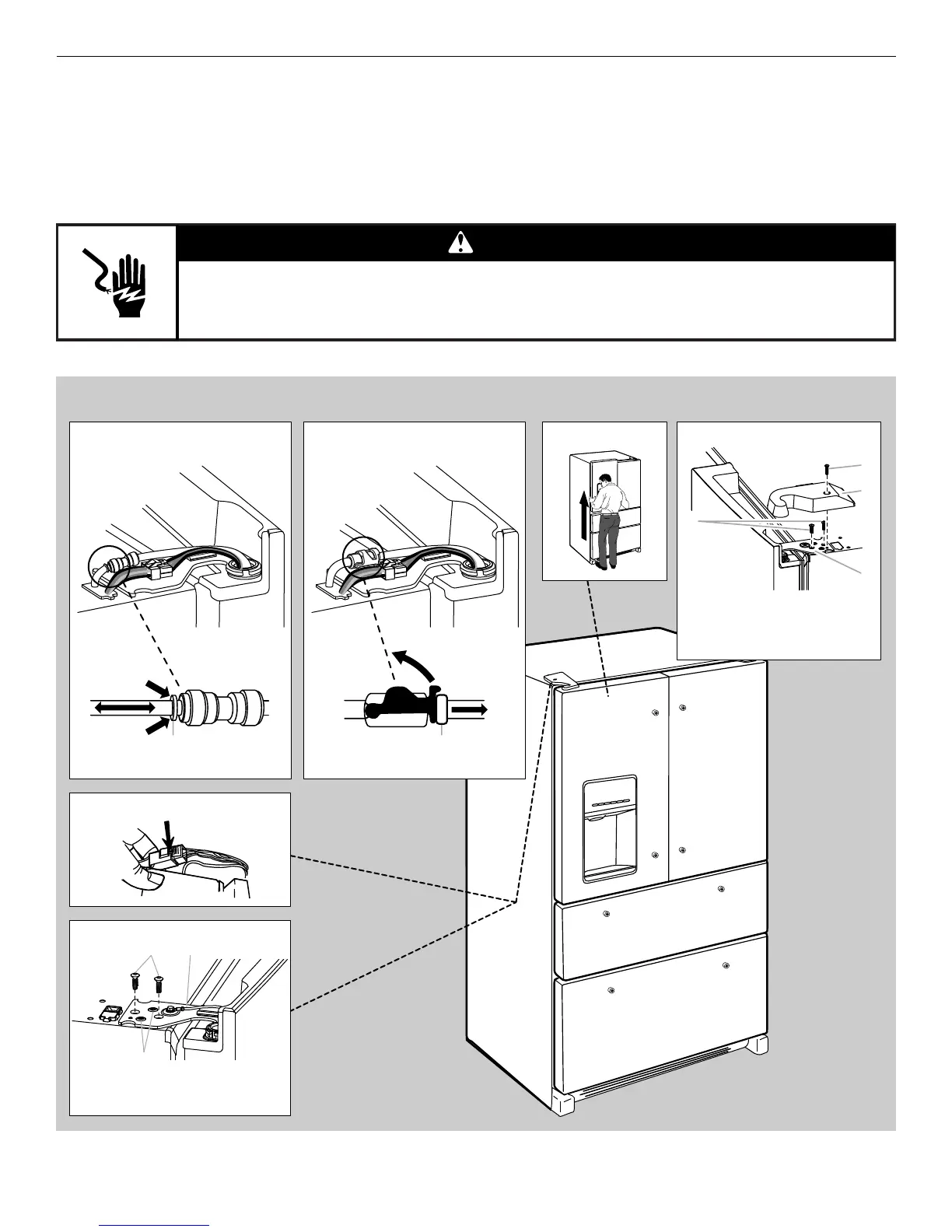

Door Removal and Replacement
Wiring Plug
Top Left Hinge
Style 1 – Water Dispenser
Tubing Connection
A
A. Outer Ring
BA
C
A. ³⁄₁₆" Internal Hex-Head Screws
B. Ground Wire (Do Not Remove)
C. Do Not Remove Screws
Style 2 – Water Dispenser
Tubing Connection
A
A. Outer Ring
Top Right Hinge
A. ³⁄₁₆"
Internal Hex-Head Screws
B. Hinge Cover Screw
C. Top Hinge Cover
D. Top Hinge
C
B
A
D
Door Removal
To Next Page
