Maytag MGDZ600TB2 - Door Parts

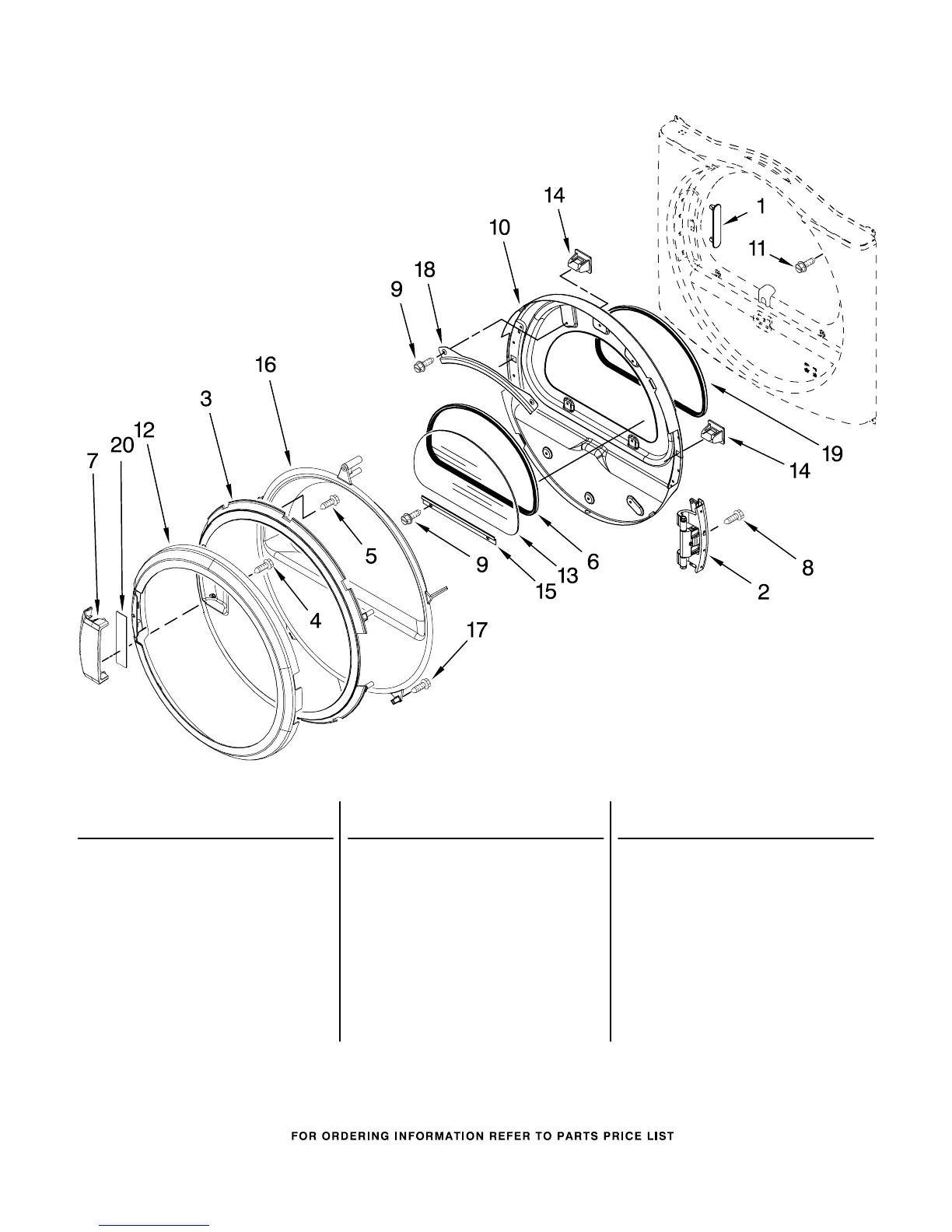

DOOR PARTS
9
For Model: MGDZ600TW2, MGDZ600TB2, MGDZ600TK2, MGDZ600TE2
(White) (Black) (Pacific Blue)(Ocean Sapphire)
W10180622
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
Illus. Part
No. No. DESCRIPTION
1 W10256915 Label−Hinge Hole
Cover
2 8578887 Door Hinge
Assembly
3
W10119053 Assembly, Door
Intermediate
4 9742177 Screw, 8−18 x 5/8
5 3400618 Screw, 6−32 x 3/8
6 8579663 Seal, Window
7
W10117478 Handle, Door
(Includes Illus.
20.)
8
W10159996 Screw,
10−24 x 3/64
9 3393258 Screw,
10−16 x 3/64
10
W10259900 Door Assembly,
Inner
(Includes
Illus. 1,14 & 19)
11 355515 Screw,
8−18 x 11/16
12
W10112917 Door, Outer Ring
13
W10286878 Window
14 690081 Door Catch
Assembly
15 8519354 Retainer−Lower
16 8580059 Door,
Intermediate
17 8534022 Screw
18 8519356 Retainer, Upper
19 Door Seal
(Not Serviceable)
20
W10112927 Pad, Door Handle
