©2004 Maytag Services 16023415 27
To avoid risk of electrical shock, personal injury, or death:
disconnect electrical and gas supply before servicing.
Disassembly Procedures
WARNING!

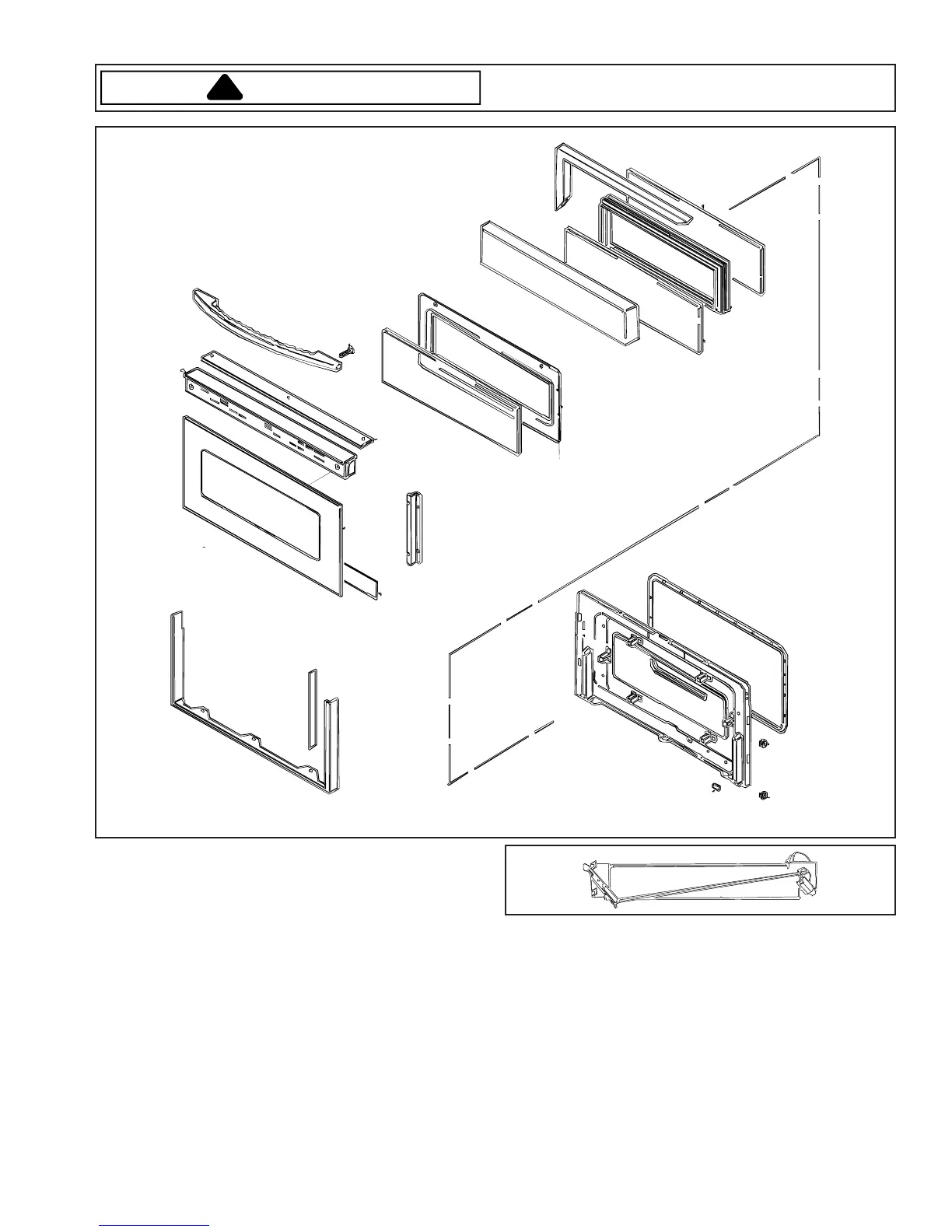

Upper Oven Door
Lower Latch Assembly
NOTE: Removal of range from installation position is
required.
1. Disconnect power before servicing.
2. Remove oven door, see "Oven Door(s)-Door Removal"
procedure.
3. Remove range from installation position, see "Move
and/or Replacing Range" procedure.
4. Remove maintop, see "Maintop Removal" procedure.
(Perform steps 1 – 6.)
5. Remove left side panel, see "Side Panel" procedure.
6. Disconnect and label wiring from door lock switch and
motor.
7. Remove screws securing latch assembly and slide
assembly from range.
8. Reverse procedure to reassemble.
Upper Latch Assembly
1. Disconnect power before servicing.
2. Remove oven door, see "Oven Door(s)-Door Removal"
procedure.
3. Remove maintop, see "Maintop Removal" procedure.
(Perform steps 1 – 6.)
4. Disconnect and label wiring from door lock switch and
motor.
5. Remove screws securing latch assembly and slide
assembly from range.
6. Reverse procedure to reassemble.
