III. Testing the Dolphin
Step 2. Analyze cable

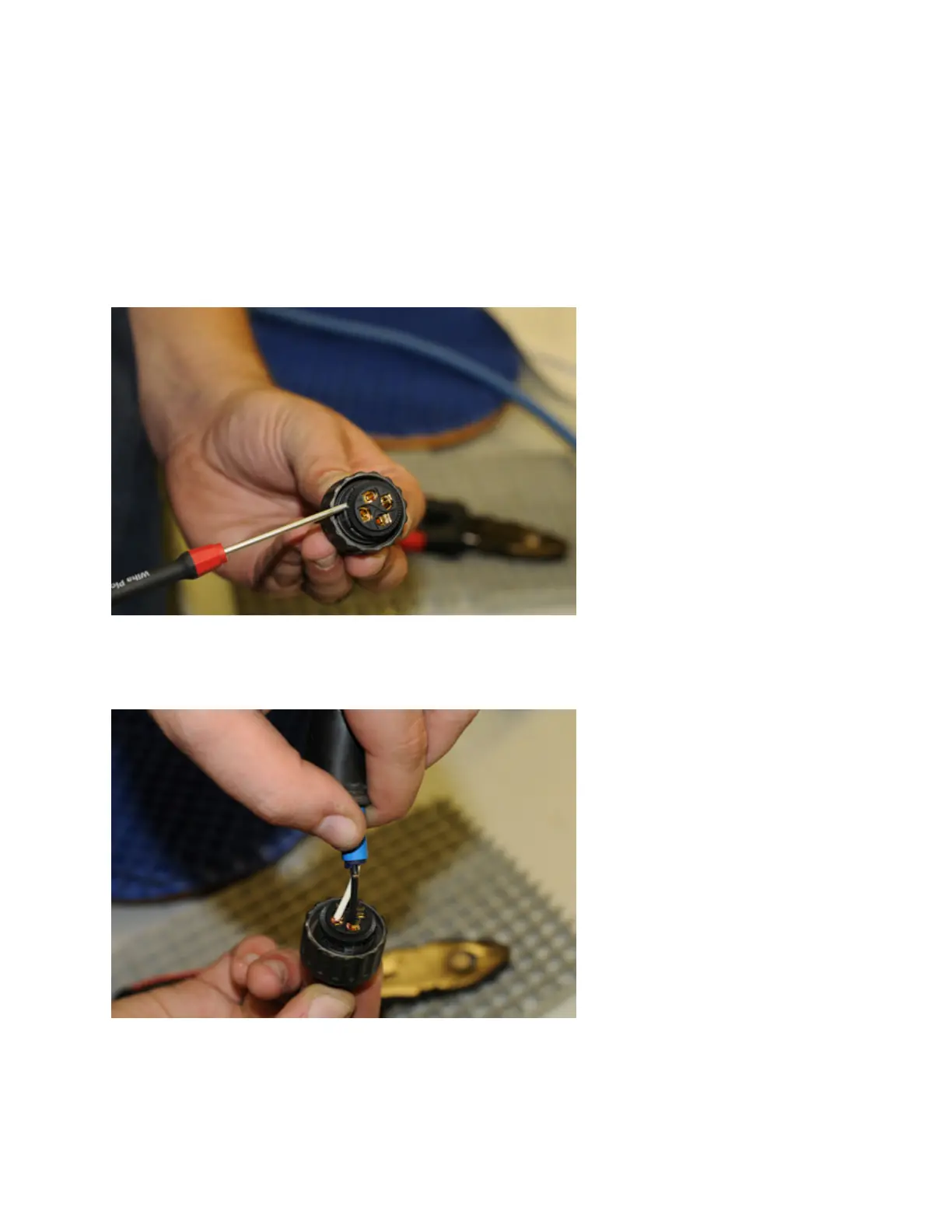

Using the 1.5 x 55mm
hex screwdriver, loosen
the necessary
terminals.
• AC = white 1, black 2
• DC = white 2, black 3
• Red = ground
19
Insert the wires into
their appropriate
terminals and tighten.
