I (fixed) – right turn indicators are switched on. The indicators are switched off automatically.
II (non-fixed) – right turn indicators are switched on for a short period of time;
III (non-fixed) – left turn indicators are switched on for a short period of time;
IV (fixed) – left turn indicators are switched on. The indicators are switched off automatically.
In the vertical plane:
V (non-fixed) – brief switching of the upper beam;
VI (fixed) – upper beam is switched on;
0
1
(fixed) – lower beam is switched on if the headlights are switched on by the main switch.
When pressing the handle end, electrical sound alarm is switched on at any position of the handle.
Рулевая колонка Steering column
Положение Position
1 – starter and instruments switch-lock;
2 – switch for the turns, lower and upper beam;
3 – windscreen wiper and washer switch

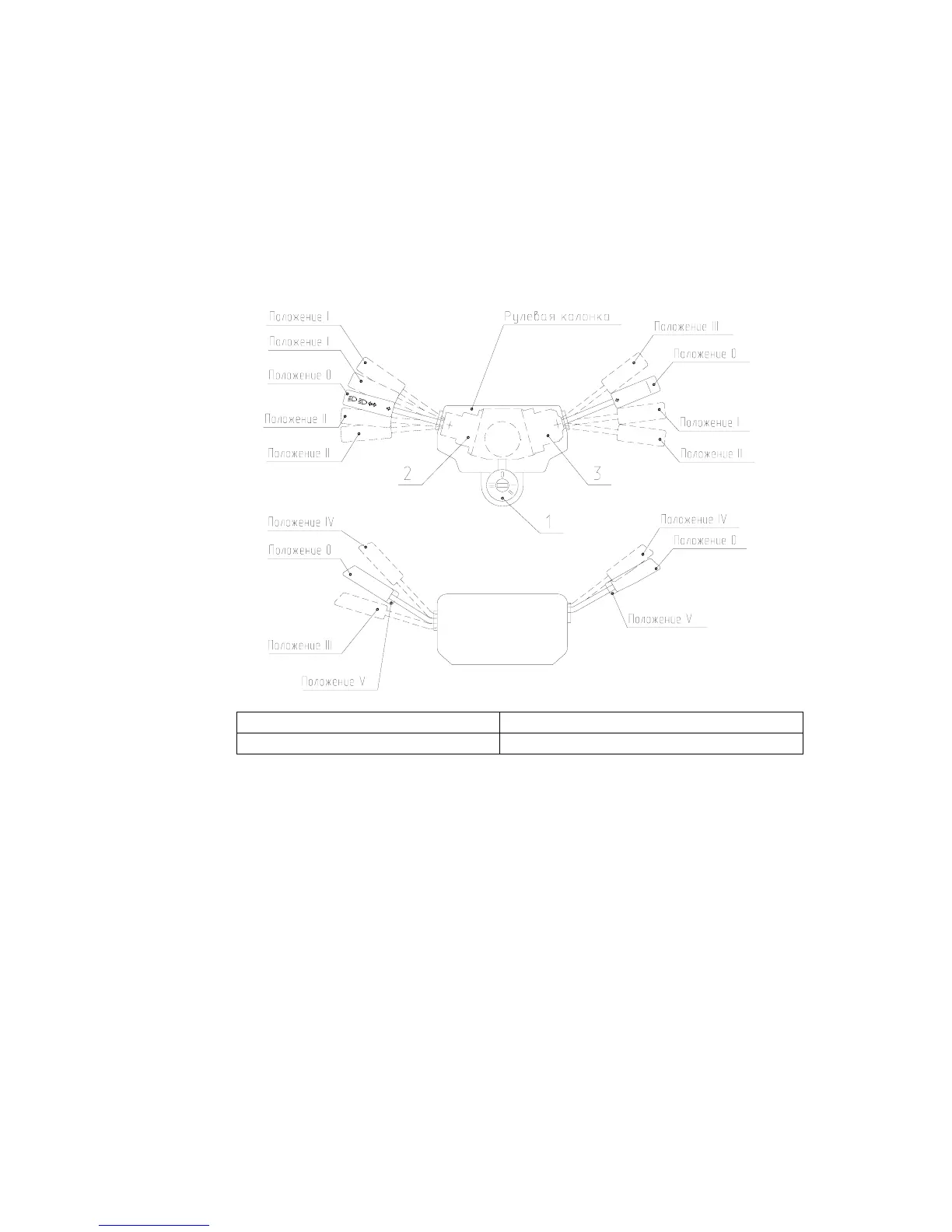

Figure 5 – the positions of the switches and instrument starter switch that are
located under the steering wheel
Tachometer 9 (Figure 6) is a device that indicates the revolutions of the engine crankshaft.
Tachometer scale has the following colour zones:
– solid green zone– optimal range of engine work economic regime;
– interrupted green zone – economic engine work regime range;
– red zone – engine crankshaft revolutions range, at which engine work is prohibited;
– interrupted red zone – engine crankshaft revolutions range, at which short-time engine work
is possible;
Tachometer may be equipped with a counter of total engine crankshaft revolutions.
