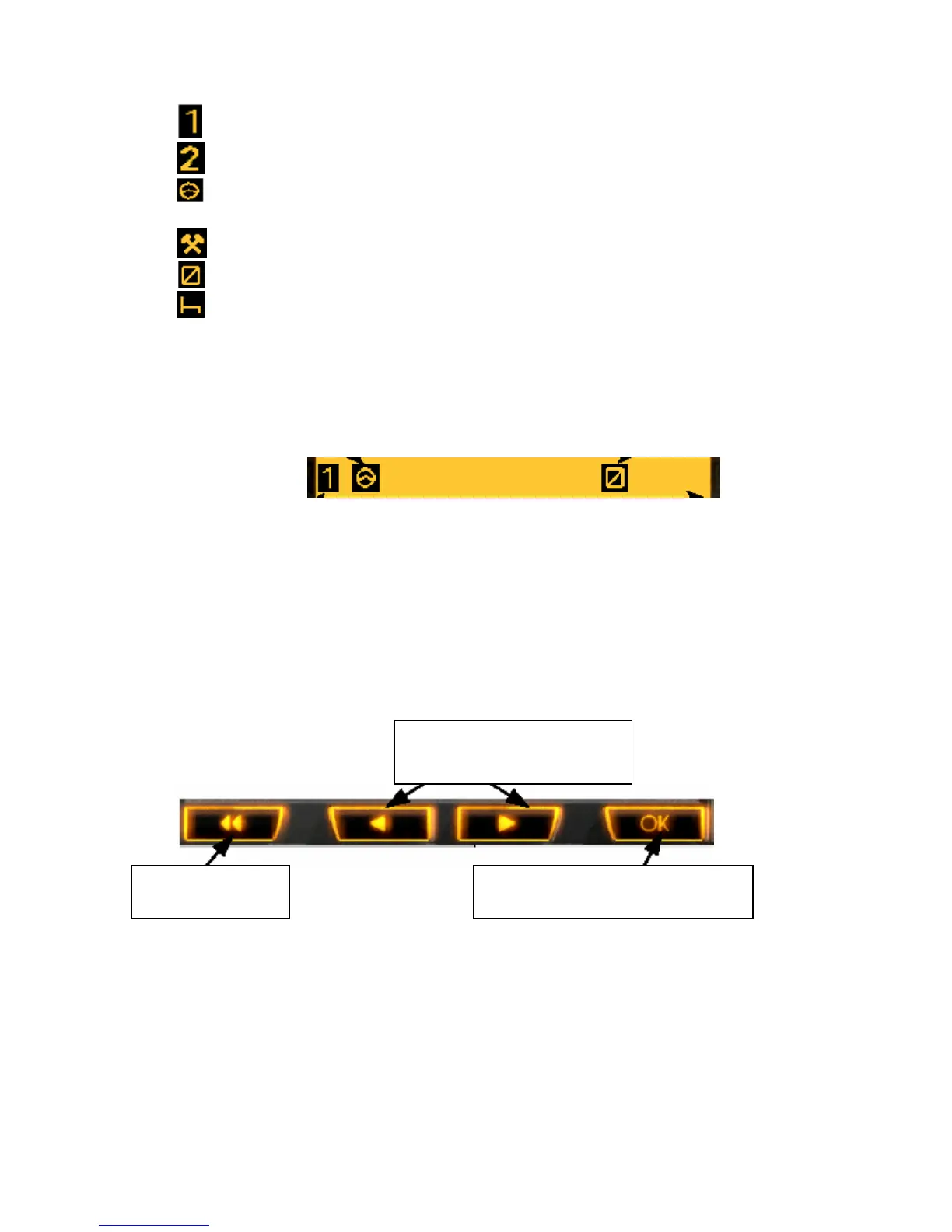

Meaning of different pictograms in the bottom line:
– presence of the first driver;
– presence of the second driver;
– «driving»– current activity of the first driver during the run (this pictogram is displayed
only on the left side of the line, in the zone of the first driver);
– «work»– current activity of the first driver (left side) or the second (right side);
·–«readiness»– current activity of the first driver (left side) or the second (right side);
–«rest»– current activity of the first driver (left side) or the second (right side);
In figure 10 the indication of the bottom display line is shown when the first driver is present
and the truck is moving. The pictogram «driving» is displayed automatically at the moment the
movement of the vehicle begins. At this time “readiness” regime is indicated for the second driver.
Figure 10 – Indication of the bottom display line
Tachograph control buttons
Tachograph has two button groups:
– first button group lets carry out movement across the tachograph menu and activate the
commands.
Figure 11 – Tachograph control buttons (first group)
[ ОК ] button lets address to the menu or confirm the choice of the chosen function
(command).
[ << ] button lets go back to the previous menu or cancel the current action.
[ < ] and [ > ] buttons let move across the menu forth and back, as well as measure
parameters in setup regime.
– second buttons group lets the first and the second driver enter their identification numbers in
the beginning and at the end of the trip, register drivers swap or change of their activity.
Buttons of movement across
the menu (forth–back)
Button of return
and cancellation
Button of entrance into the menu
and confirmation of the choice
