Maintenance and Care
Owner Maintenance
Form No. 8Q50-EA-01G
If the headlights or other electrical
components don’t work and the fuses in
the cabin are OK, inspect the fuse block
under the hood. If a fuse is blown, it must
be replaced. Follow these steps:
1. Turn off the ignition switch and all
other switches.
2. Remove the fuse block cover.
3. If a fuse is blown, replace it with a new
one
of the same rating
.
When replacing the 100A fuse:
1. Turn off the ignition switch.
2. Remove the negative battery terminal.
3. Remove the A nuts.
4. Lift the fuse block and remove the B
bolts.
5. Replace the fuse with a new one
of the
same rating
.
6. Install in the reverse order of removal.

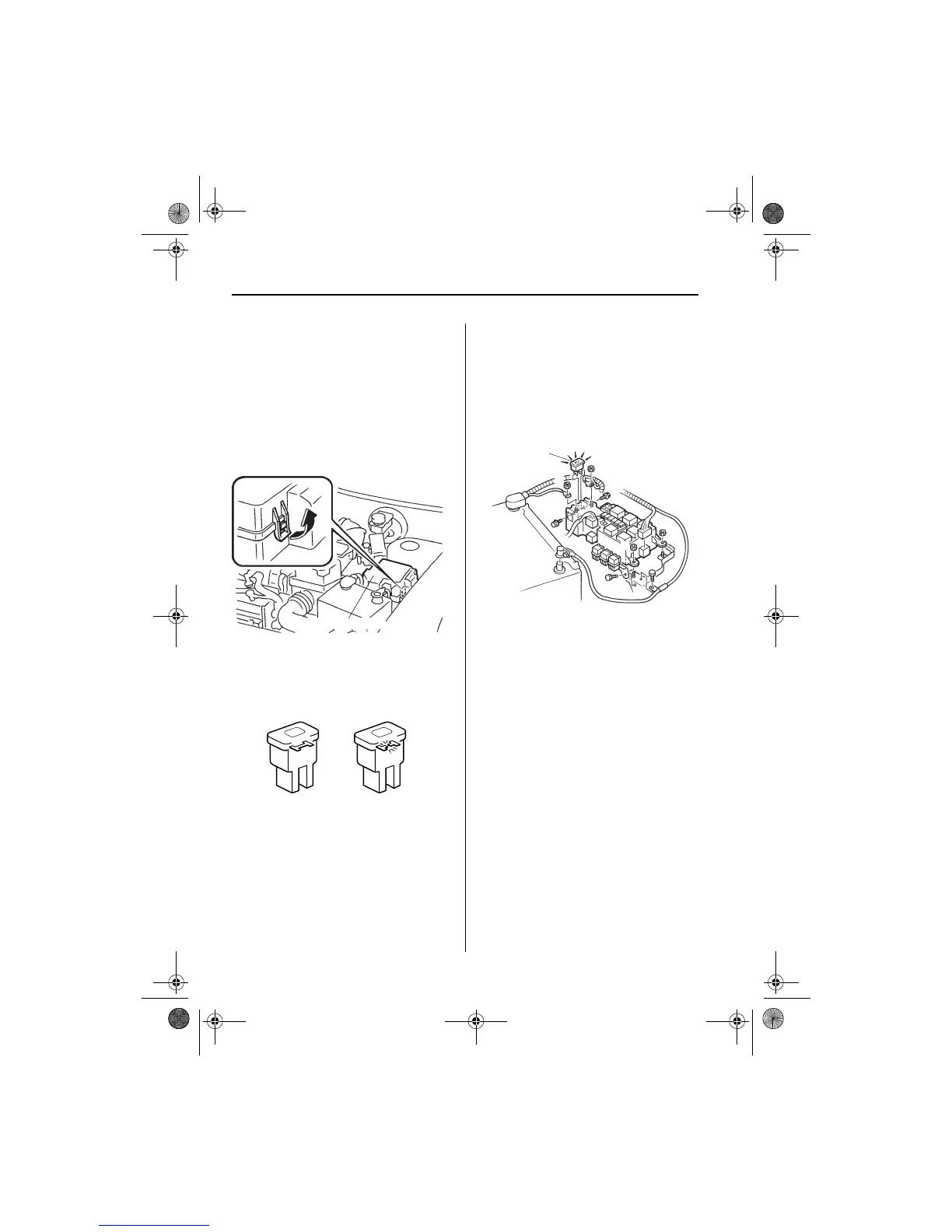

Fuse block cover
Normal Blown
B
A
A
A
B
B
B
A
100A fuse
