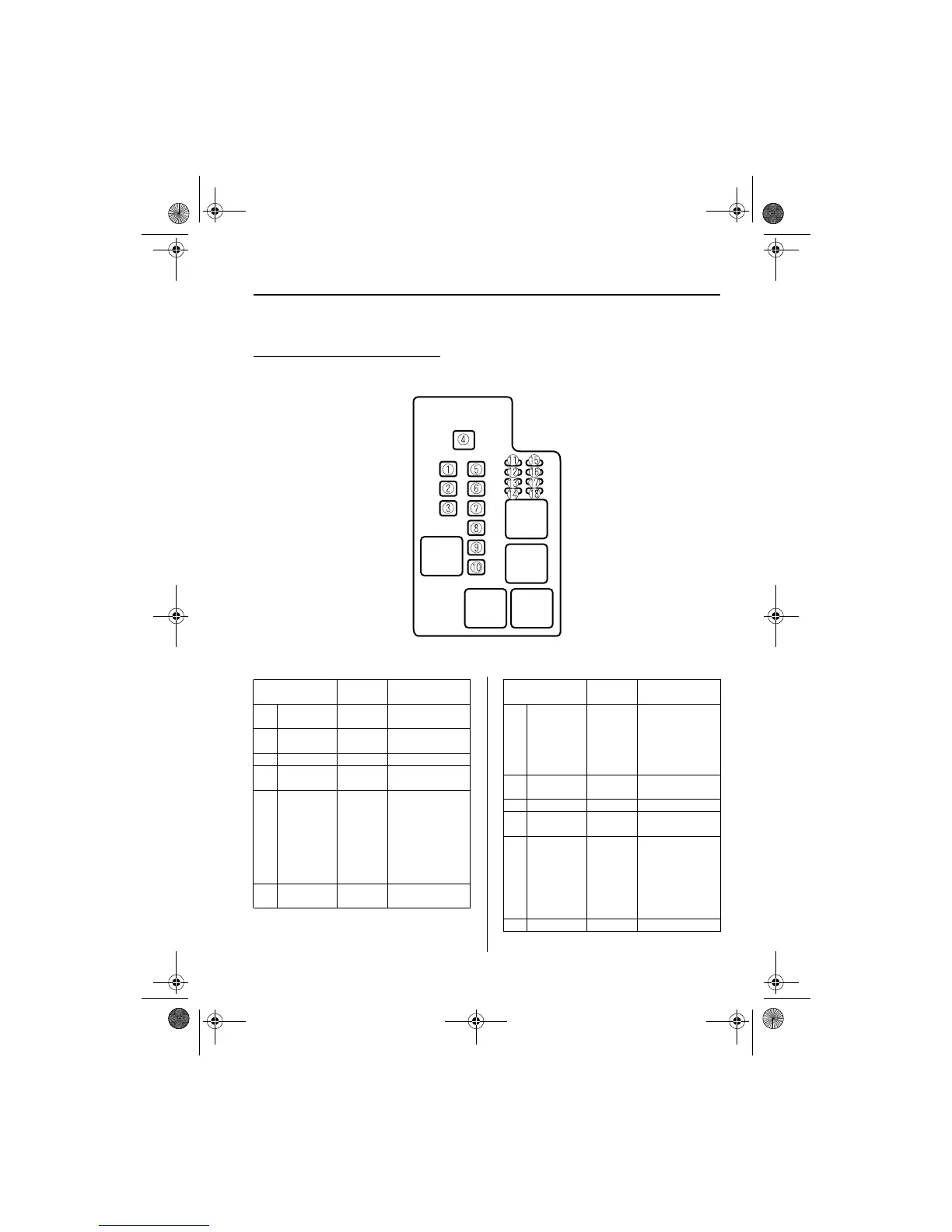

▼ Fuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED
COMPONENT
1EGI INJ 30A
Fuel injection
system
2 DEFOG 40A
Rear window
defroster
3 —— —
4 MAIN 100A
For protection of
all circuits
5 IG KEY 30A
RADIO,
SUNROOF,
TURN, METER,
ENGINE,
POWER
WINDOW,
WIPER fuses,
Ignition system
6 HEATER 40A
Heater, Air
conditioner
DESCRIPTION
FUSE
RATING
PROTECTED
COMPONENT
7 BTN 40A
TAIL, STOP,
ROOM, DOOR
LOCK,
HAZARD,
POWER SEAT
fuses
8
COOLING
FAN
30A Cooling fan
9 AD FAN 30A Additional fan
10 (ABS) 60A
Antilock brake
system
11 TAIL 15A
Taillights,
Parking lights,
Dashboard
illumination,
License plate
lights, Switches
illumination
12 HORN 15A Horn
