To remove a fuse use the fuse puller tool provided.
The fuses are coded as follows:
Fuse/Relay
Location
Fuse Amp
Rating

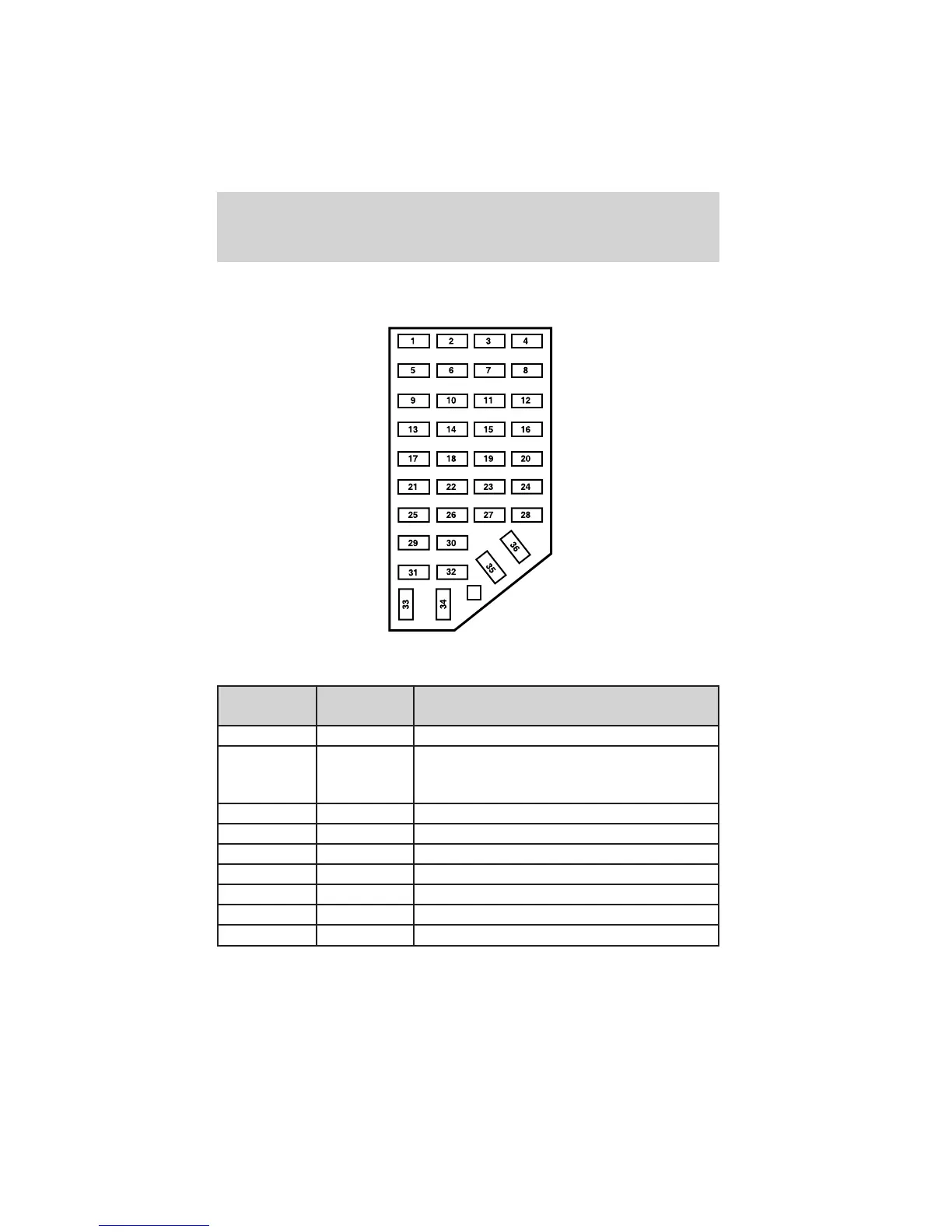

Passenger Compartment Fuse Panel
Description
1 5A Power mirror switch
2 10A Daytime Running Lights (DRL), Back-up
lamps, Transmission, Passenger air bag
deactivation switch, Blower motor relay
3 7.5A Left stop/turn trailer tow connector
4 — Not used
5 15A 4x4 control module
6 2A Brake pressure switch
7 7.5A Right stop/turn trailer tow connector
8 — Not used
9 7.5A Brake pedal position switch
