Fuse/Relay
Location
Fuse Amp
Rating
Passenger Compartment Fuse Panel
Description
30 — Not used
31 — Not used
32 — Not used
33 15A Headlamps, Daytime Running Lamps
(DRL) module, Instrument cluster
34 — Not used
35 15A Horn relay (if not equipped with a Central
Security Module)
36 — Not used

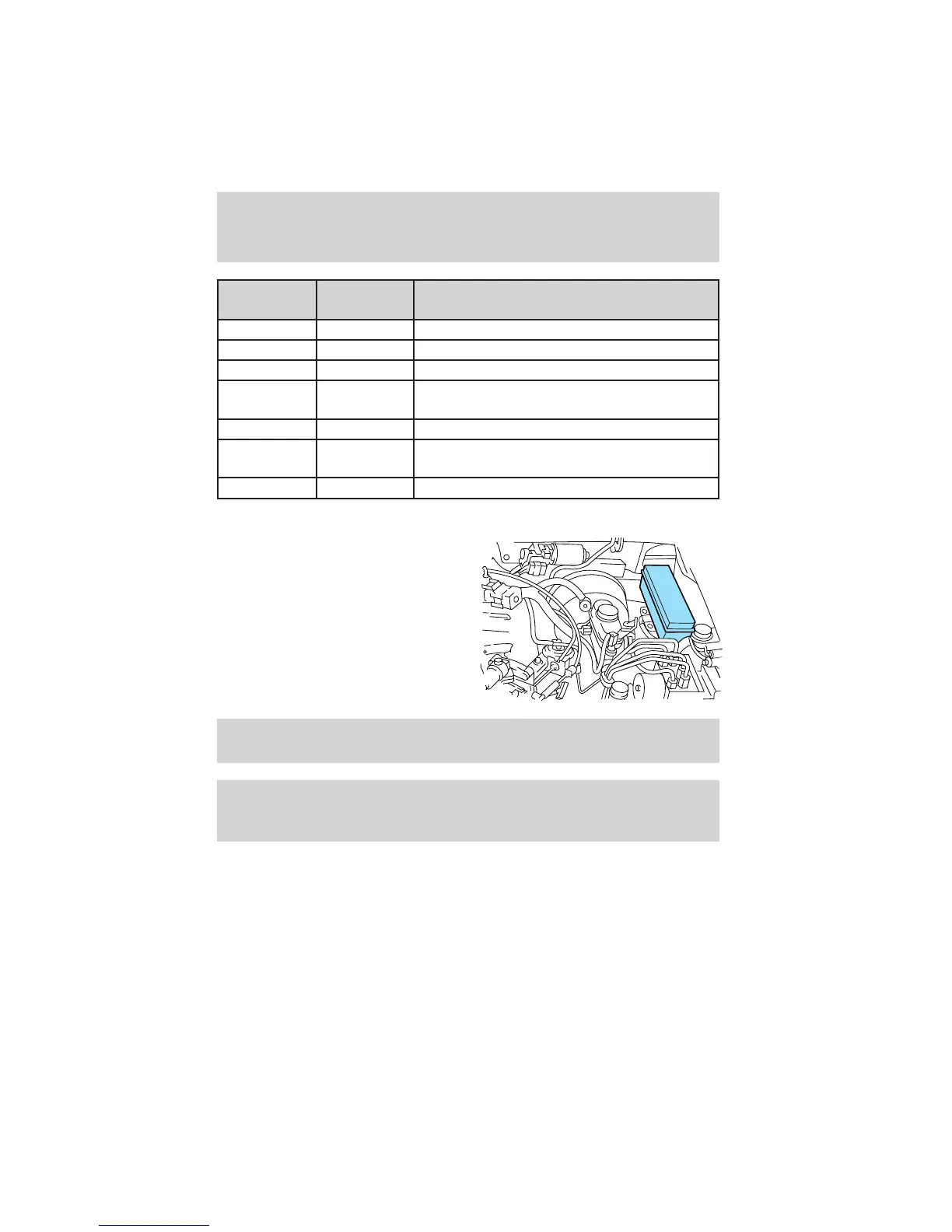

Power distribution box
The power distribution box is
located in the engine compartment.
The power distribution box contains
high-current fuses that protect your
vehicle’s main electrical systems
from overloads.
WARNING: Always disconnect the battery before servicing high
current fuses.
WARNING: To reduce risk of electrical shock, always replace
the cover to the Power Distribution Box before reconnecting
the battery or refilling fluid reservoirs.
If the battery has been disconnected and reconnected, refer to the
Battery section of the Maintenance and specifications chapter.
Roadside Emergencies
145
