qFuse Panel Description

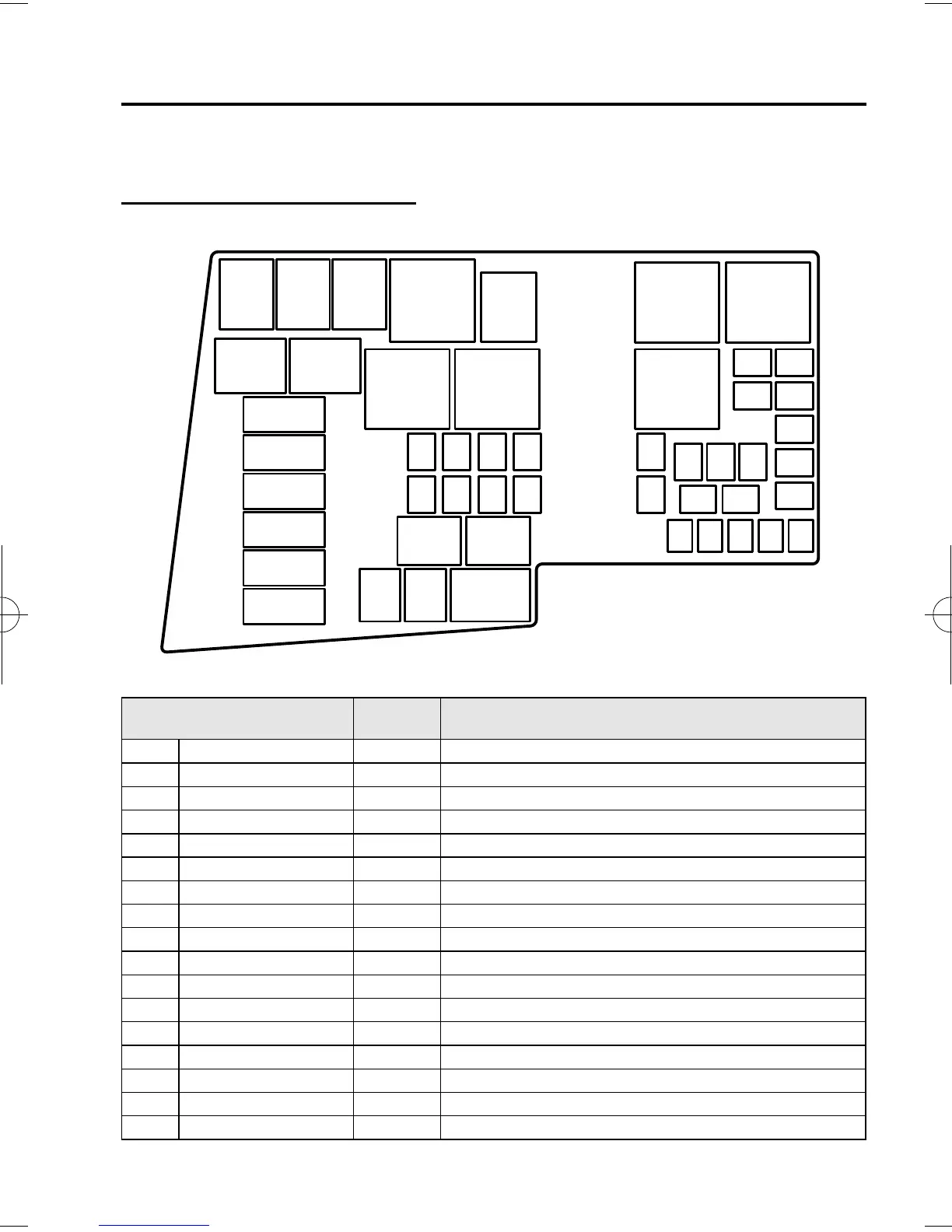

Fuse block (Engine compartment)
1
2
3
4
5
6
78
9
10
11
12
13
14
15
16
17
18
19
20 21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 FAN 40 A Cooling fan
2 P/ST 80 A EHPAS
3 BTN 40 A For protection of various circuits
4 HEAD 40 A Headlights
5 PTC 80 A ―
6 GLOW 60 A ―
7 ABS 1 30 A ABS
í
8 ABS 2 20 A ABS
í
9 ENGINE 30 A For protection of various circuits
10 ―――
11 IG KEY 1 30 A Ignition switch
12 STARTER 20 A Starter clutch
13 IG KEY 2 30 A Ignition switch
14 ―――
15 HEATER 40 A Blower motor
16 ―――
17 DEFOG 40 A Rear window defroster
