qFuse Panel Description

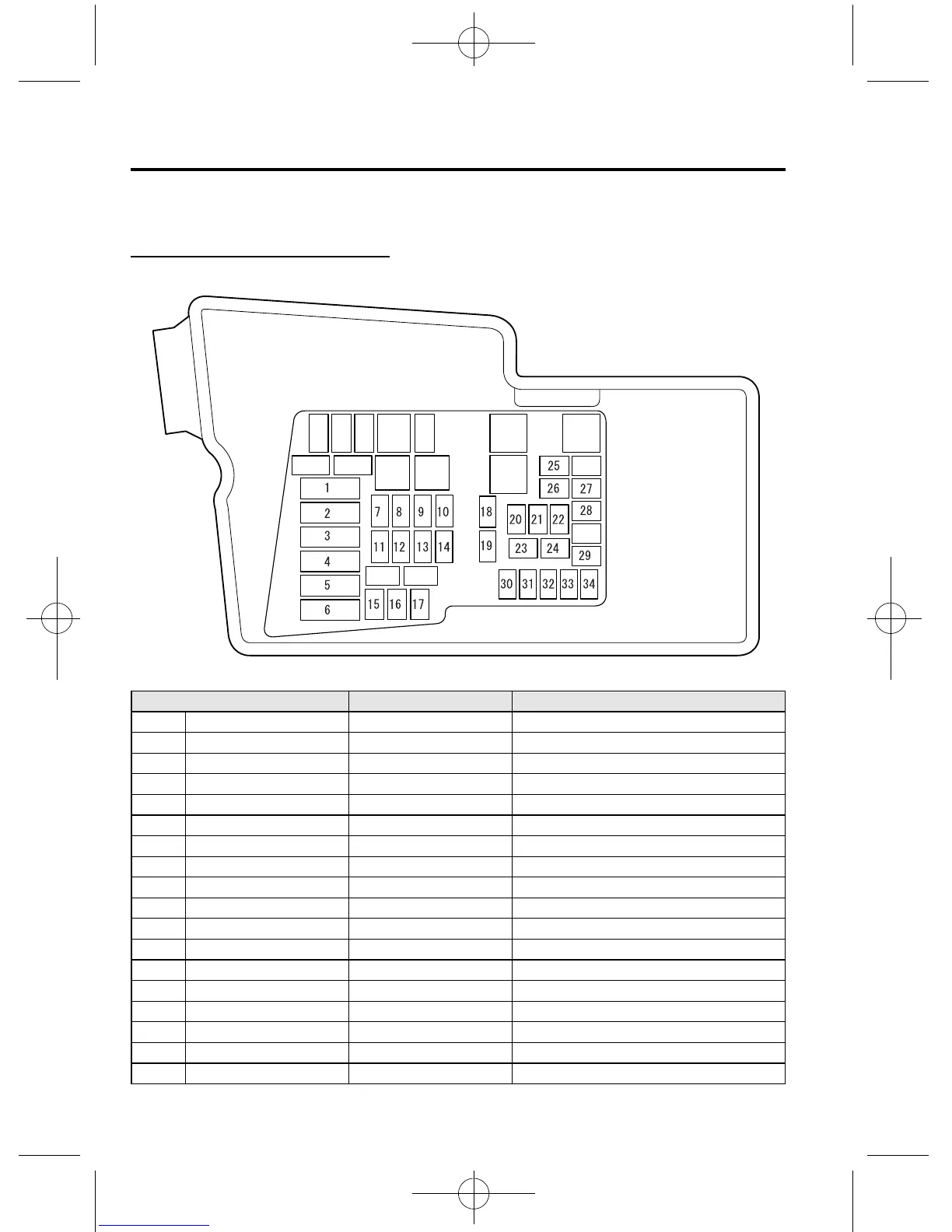

Fuse block (Engine compartment)
DESCRIPTION FUSE RATING PROTECTED COMPONENT
1 IGN 2 40A Ignition system
2 BLOWER 40A Blower motor
3 BTN 60A For protection of various circuits
4 FAN 2 40A Cooling fan
5 IGN 1 40A Ignition system
6 FAN 1 40A Cooling fan
7 P.SEAT 40A Power seat
í
8 INJ 30A Injector
9 ROOF 20A Moonroof
í
10 BOSE 30A Bose audio system
í
11 ENGINE 30A Engine control system
12 D.LOCK 20A Power door locks
13 P.WIND 30A Power windows
14 FUEL 30A Fuel pump
15 ABS 1 40A ABS
16 ABS 2 20A ABS
17 DSC 7.5A DSC
18 FOG 20A Fog lights
í
8-42
Maintenance and Care
í
Some models.
Owner Maintenance
