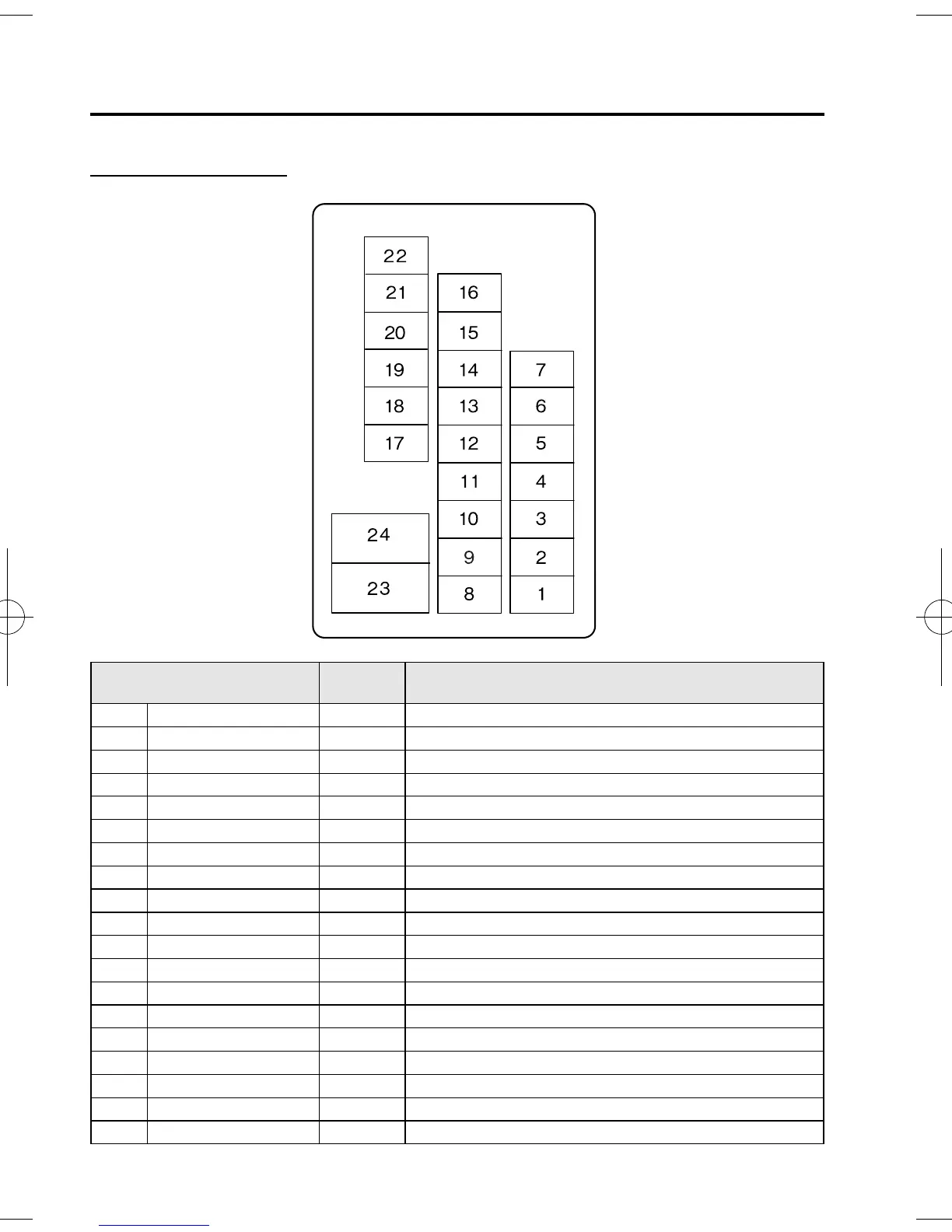

Fuse block (Glove box)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 OUTLET FR 15A Accessory Socket (Front)
2 MIRROR 7.5A Power control mirror
3 ―― ―
4 METER 10A Instrument cluster
5 SAS 7.5A ABS, Air bag
6 ENG.IGA 7.5A Engine control system
7 STA 7.5A Ignition system
8 ―― ―
9 A/C 7.5A Air conditioner
10 R.WIPER 15A Rear window wiper and washer
11 ―― ―
12 P.LIFT GATE 20A Power lift gate
í
13 SUNROOF 15A Moonroof
í
14 AUDIO 10A Audio system
15 M.DEF 10A Mirror defroster
í
16 ―― ―
17 TAIL 10A Taillight
18 ILLUMI 10A Dashboard illumination
19 INJ 7.5A Injectors
