Supplemental Restraint System Components
(1)
(11)
(12)
(7)
(6)
(9)
(5)
(4)
(3)
(3)
(10)
(8)
(8)
(8)
(2)
(10)
(9)
(8)
(2)
(2)

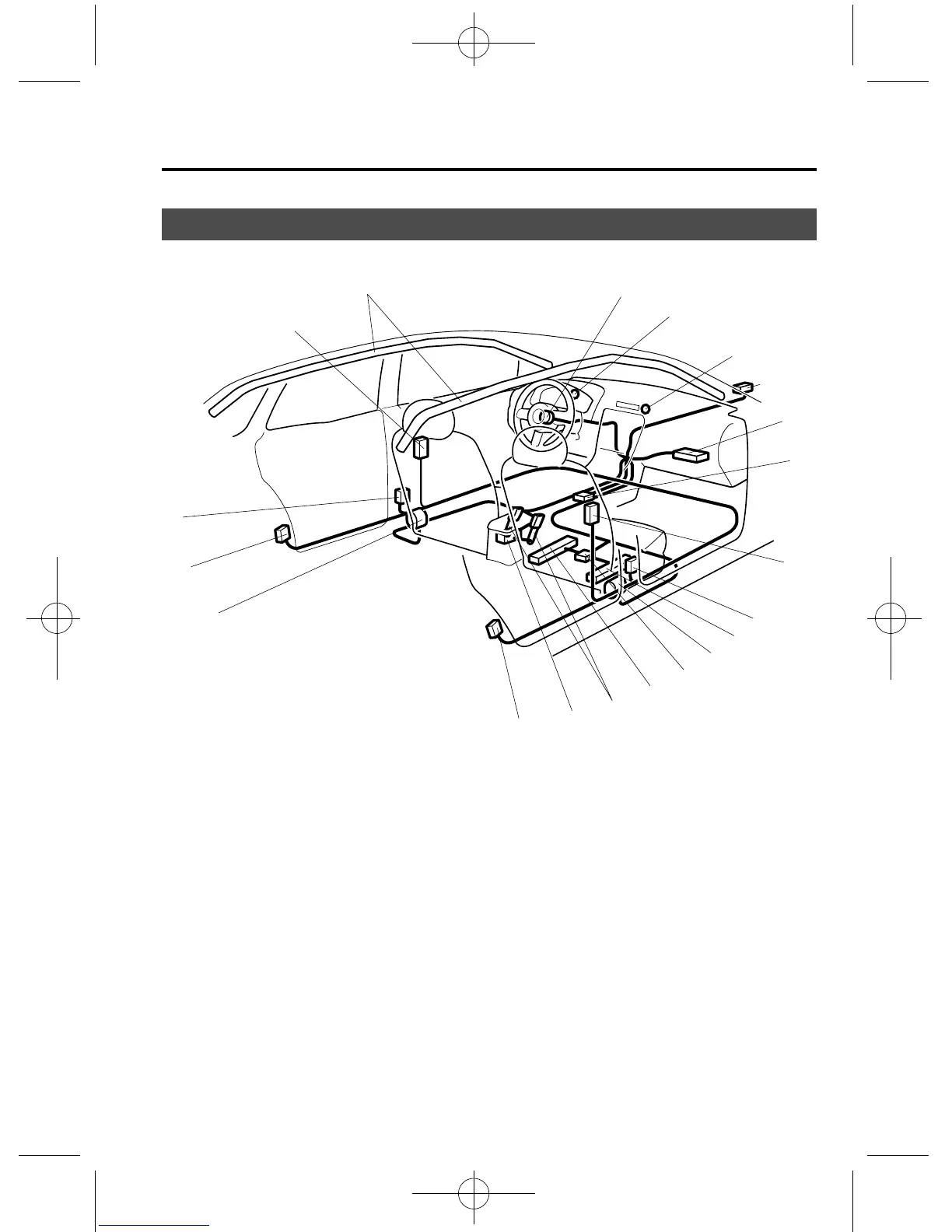

(1) Driver seat slide position sensor (page 2-63)
(2) Side and curtain inflators and air bags
(3) Driver/Front passenger dual stage inflators and air bags
(4) Air bag/front seat belt pretensioner system warning light (page 2-59)
(5) Crash and roll-over sensors, and diagnostic module (SAS unit)
(6) Front passenger air bag deactivation indicator light (page 2-63)
(7) Front air bag sensor
(8) Side crash sensors
(9) Front seat belt pretensioner and load limiting systems (page 2-25)
(10) Front passenger seat weight sensors (page 2-63)
(11) Front passenger seat weight sensor control module
(12) Driver and front passenger seat belt buckle switches (page 2-67)
