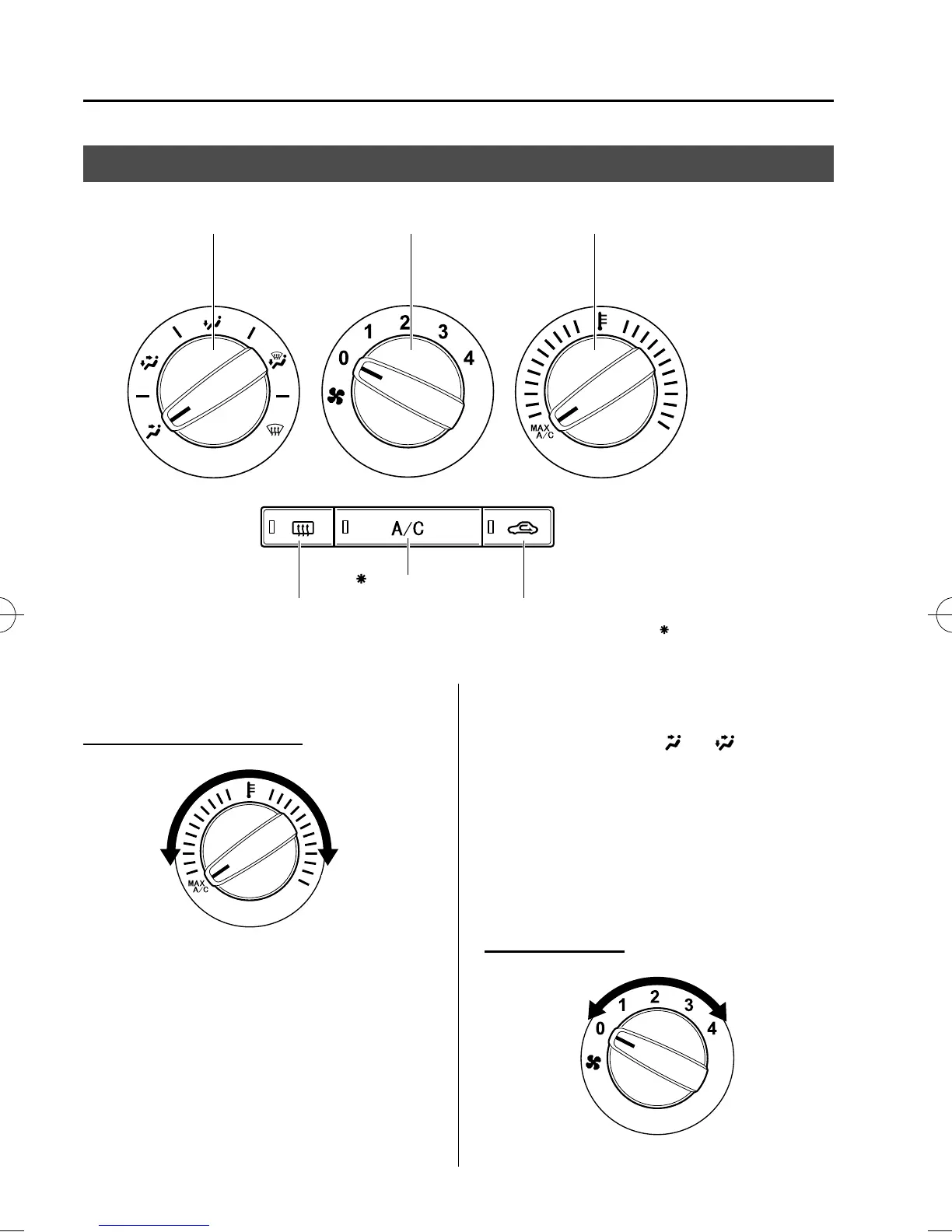

Manual Type
í
Temperature control dial
Fan control dial
Mode selector dial
Air intake selector
A/C switch
Some models.
Rear window defroster switch
qControl Switches
Temperature control dial
Cold Hot
This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.
NOTE
(U.S.A.)
When the mode is set to
or with the fan
control dial in a position other than 0 and the
temperature control dial in the maximum cold
position, the air intake selector switches to the
recirculated air mode and the A/C turns on
automatically.
If A/C is not desired, press the A/C switch to
turn it off.
Fan control dial
6-6
Interior Comfort
í
Some models.
Climate Control System
