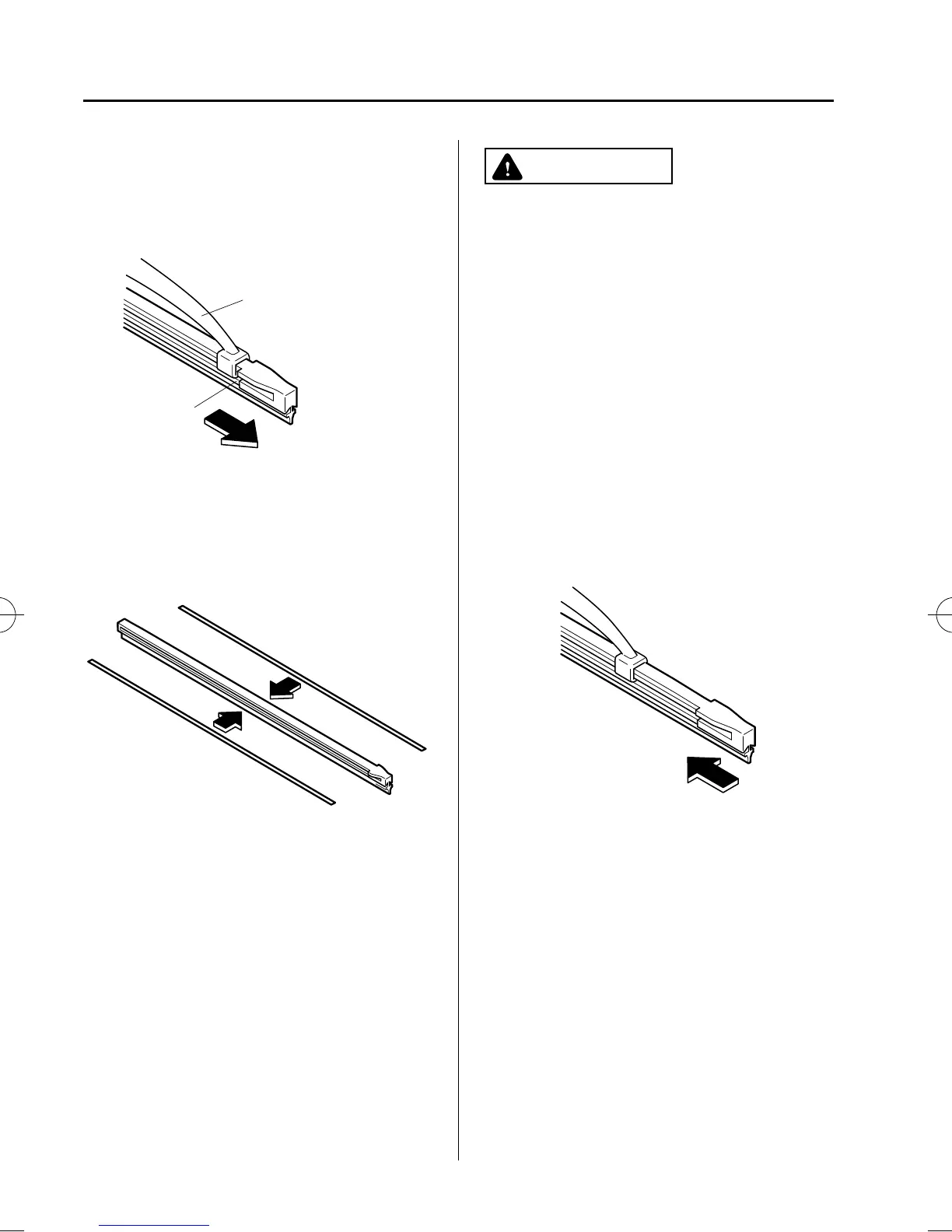

2. Hold the end of the rubber and pull
until the tabs are free of the metal
support.
Metal support
Tab
3. Remove the metal stiffener from each
blade rubber and install them in the
new blade.
CAUTION
Ø Don't bend or discard the stiffener.
You need to use them again.
Ø If the metal stiffeners are
switched, the blade's wipin g
efficiency could be reduced.
So don't use the driver's side metal
stiffener on the passenger's side,
or vice versa.
Ø Be sure to reinstall the metal
stiffener in the new blade rubber
so that the curve is the same as it
was in the old blade rubber.
4. Carefully insert the new blade rubber.
Then inst all the blade assem bly in the
reverse order of removal.
NOTE
Install the blade so that the tabs are toward the
bottom of the wiper arm.
qReplacing Rear Wiper Blade (5
Door)
When the wiper no longer cleans well, the
blade is probably worn or cracked.
Replace it.
8-30
Maintenance and Care
Owner Maintenance
