5. Replace the cargo sub-compartment.
6. Remove the lid by pressing the two
latches on the cargo sub-compartment.
7. Remove the belt for securing the flat
tire.
8. Return the third-row seatback to its
original position.
Refer to Fold the Third-Row Seat on
page 2-13.
9. Place the flat tire in the cargo sub-
compartment.

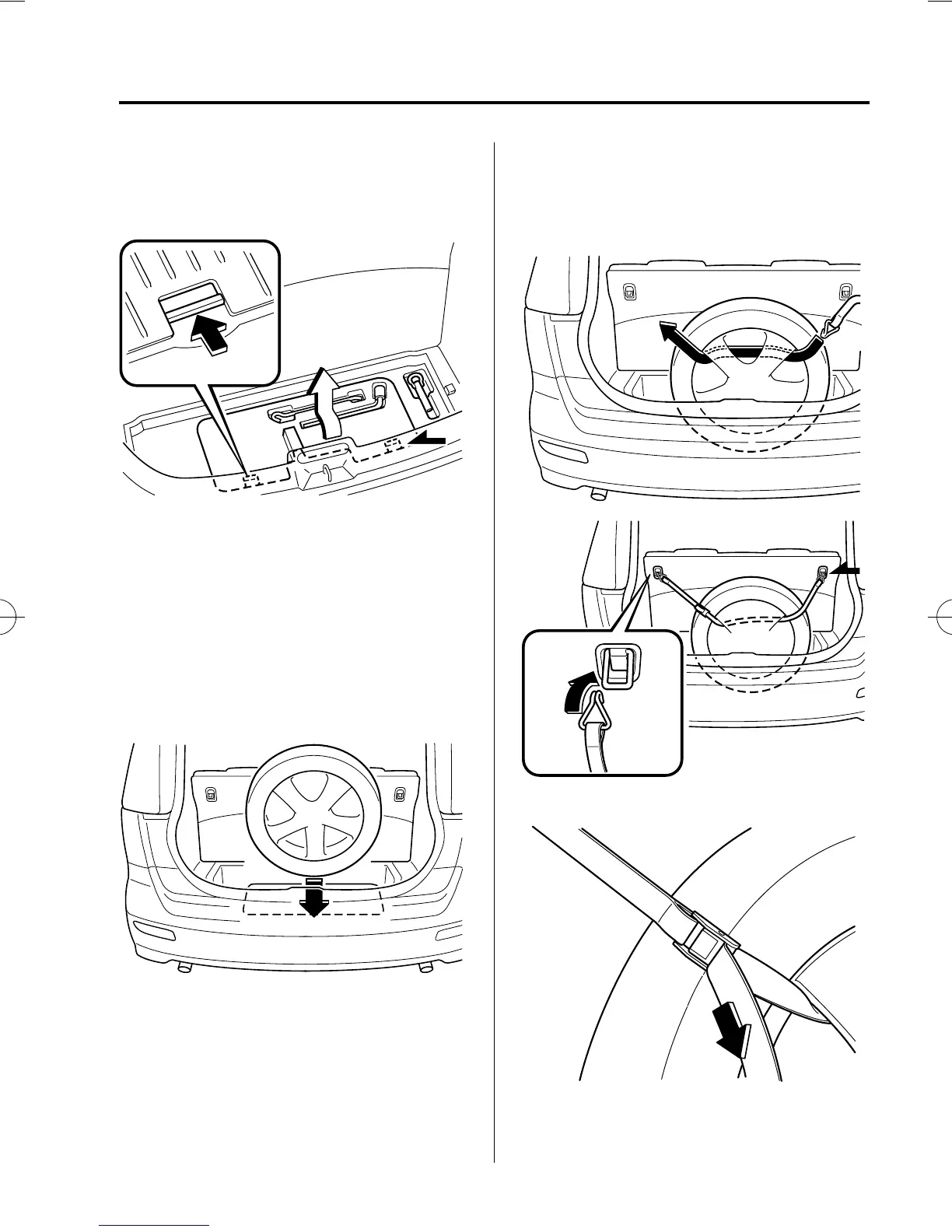

10. Thread the belt through the wheel as
shown in the figure, then attach the
belt clips to the cargo securing loops
on the back of the third-row seat.
11. Pull the belt end to secure the flat tire.
12. Remove the tire blocks and store the
tools and jack.
In Case of an Emergency
Flat Tire
7-11
