qFuse Panel Description

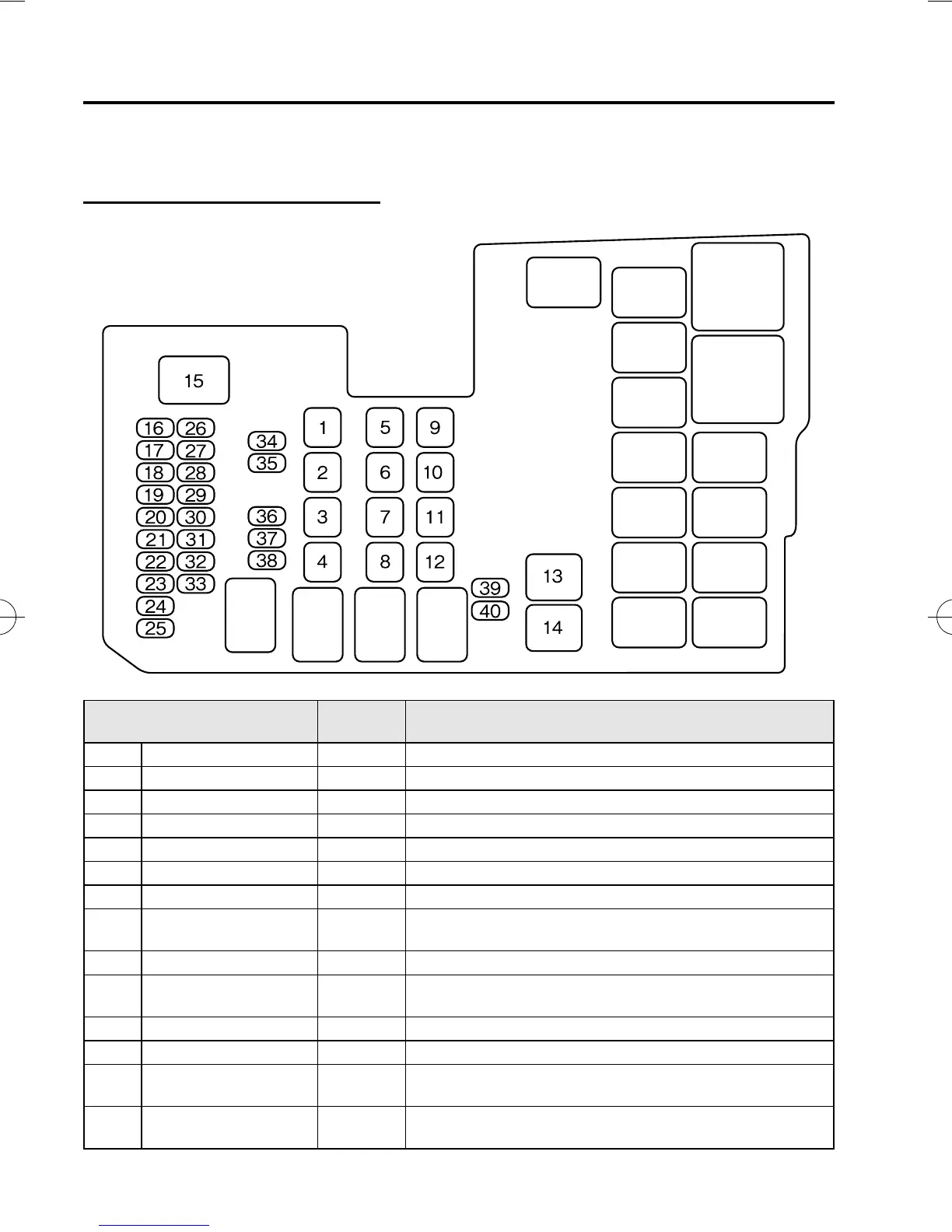

Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 FAN 30 A Cooling fan
2 FAN 30 A Cooling fan
3 P.WIND 40 A ―
4 IG KEY1 30 A ―
5 ABS-V 20 A ABS
6 ABS-P 30 A ABS
7 IG KEY2 20 A For protection of various circuits
8
HEATER
DEICER
20 A ―
9 BLOWER 40 A Blower motor
10
GLOW
IG KEY1
40 A For protection of various circuits
11 BTN 40 A For protection of various circuits
12 IG KEY2 40 A ―
13
CLOSER
P.SLIDE LH
20 A Easy closer (LH)
í
14
CLOSER
P.SLIDE RH
20 A Easy closer (RH)
í
8-48
Maintenance and Care
í
Some models.
