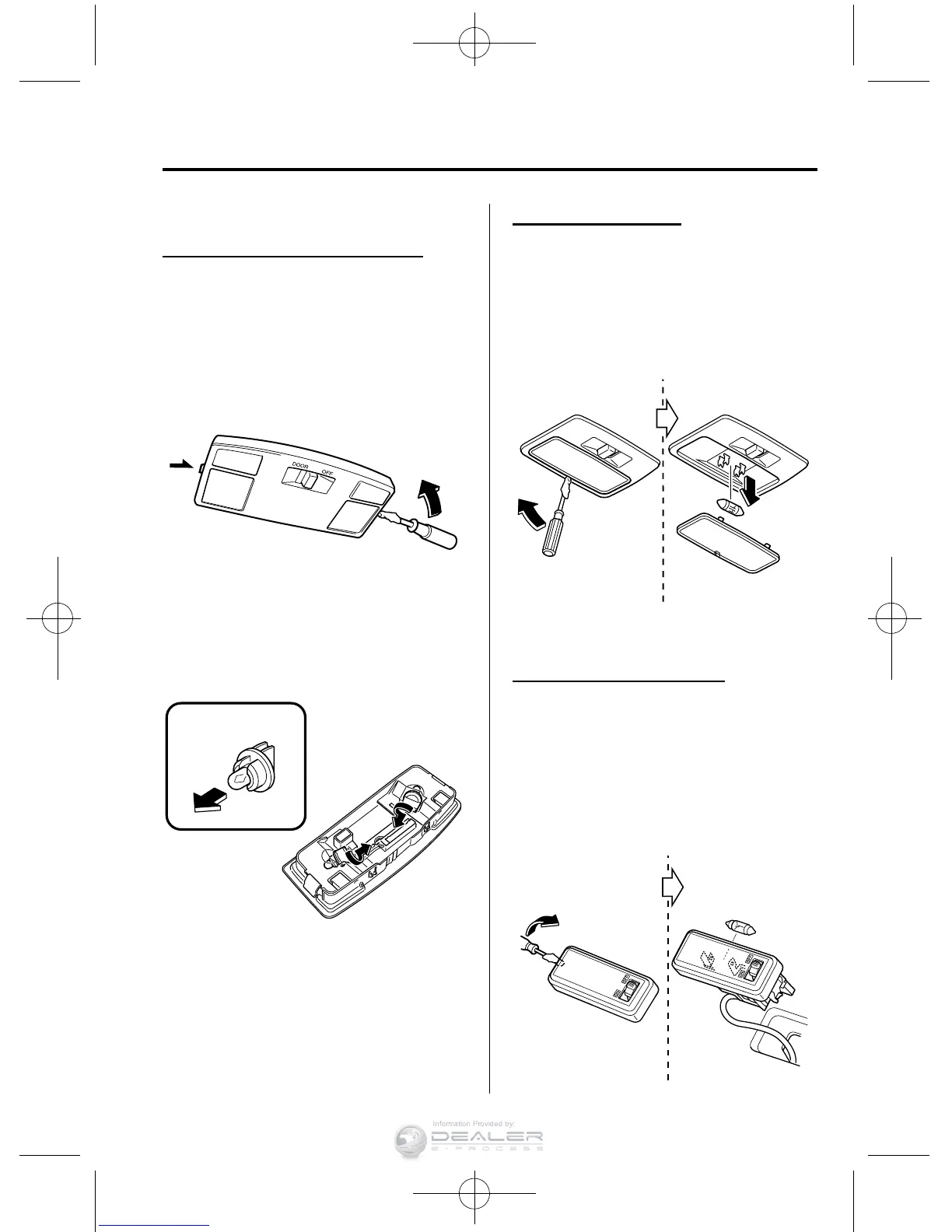

qReplacing Interior Light Bulbs
Overhead light (Front)/Map lights
1. Wrap a flat head screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the overhead ligh t as
shown in the figure, and then remove
the overhead light unit.
2. Turn the socket and bulb assembly
counterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order
of the removal procedure.
Overhead light (Rear)
1. Wrap a small flathead screwdriver with
a soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens with the
flathead screwdriver.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order
of the removal procedure.
Luggage compartment light
1. Wrap a flat head screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the luggage
compartment light as shown in the
figure, an d then remove the luggage
compartment light unit.
2. Disconnect the bulb by pulling it out.
Maintenance and Care
