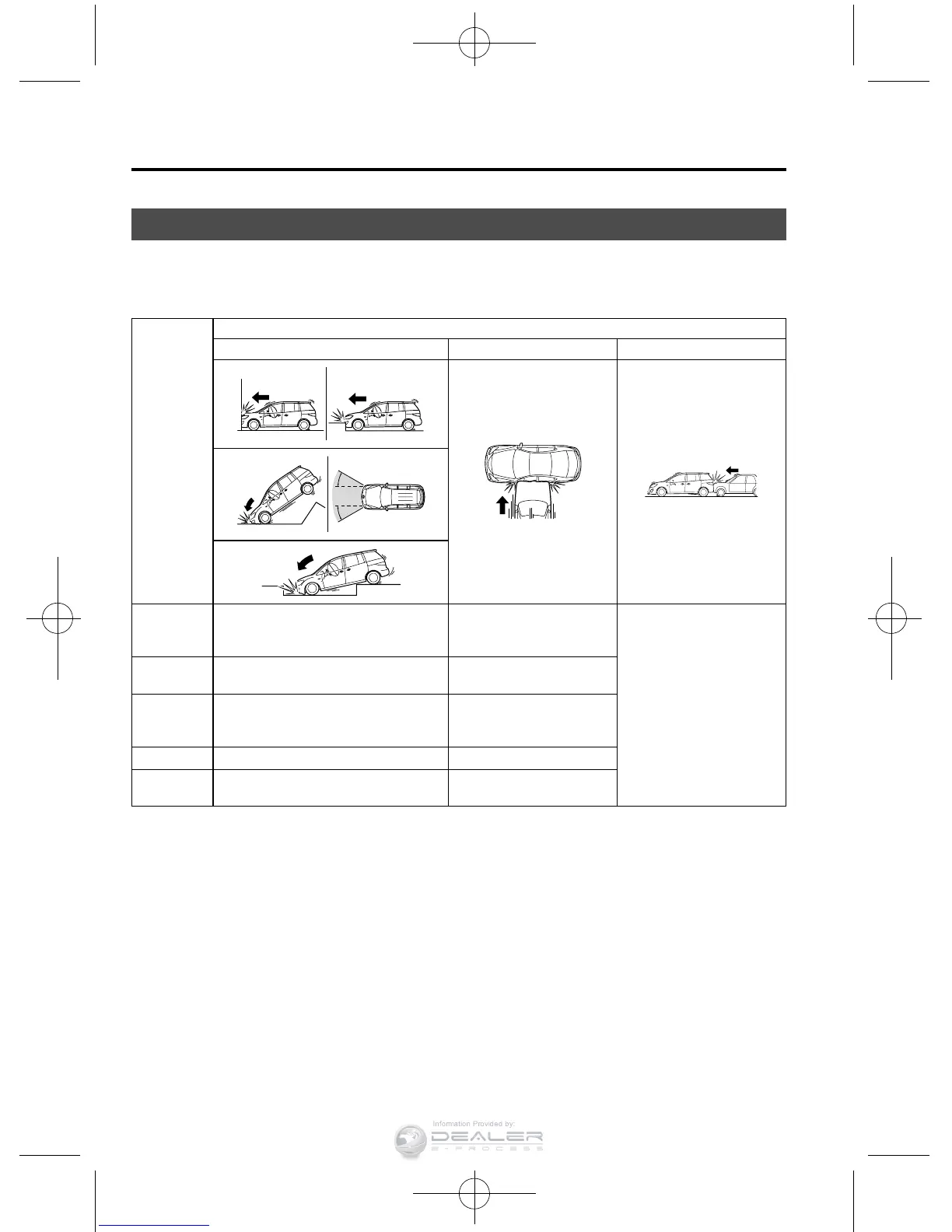

SRS Air Bag Deployment Criteria
This chart indicates the applicable SRS equipment that will deploy depending on the type
of collision.
(The illustrations are the representative cases of collisions.)
SRS
equipment
Types of collision
A severe frontal/near frontal collision A severe side collision A rear collision
Front seat
belt
pretensioner
X
*1
(both sides) X
*1
(impact side only)
No air bag and front seat
belt pretensioner will be
activated in a rear collision.
Driver air
bag
X
Front
passenger air
bag
X
*1
Side air bag X
*1
(impact side only)
Curtain air
bag
X (impact side only)
X: The SRS air bag equipment is designed to deploy in a collision.
*1: (With Driver and Front Passenger Occupant Classification System)
The front passenger front and side air bags and the seat belt pretensioner are designed
to deploy depending on the condition of the total seated weight on the front passenger
seat.
