qFuse Panel Description

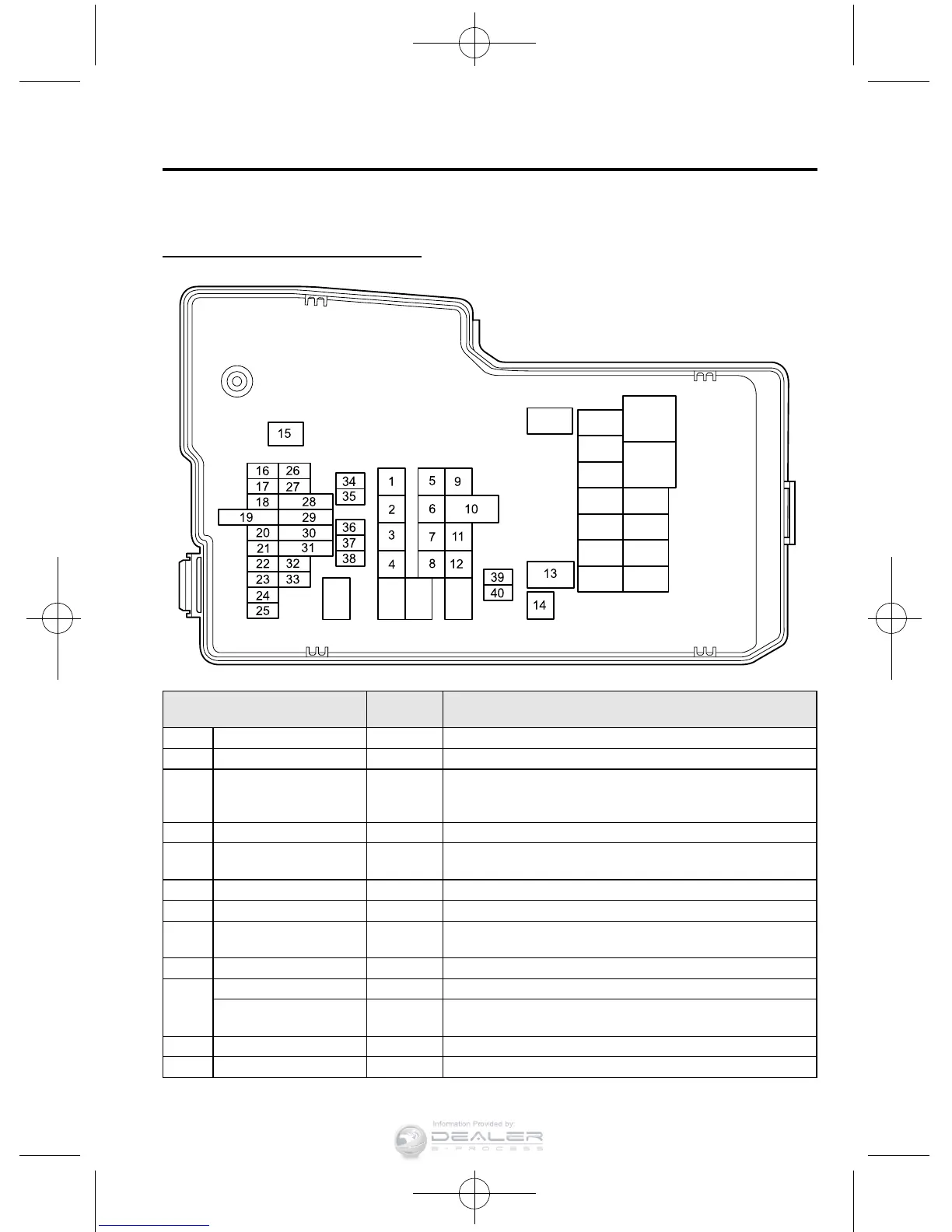

Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 IG KEY1 50 A For protection of various circuits
2 AD FAN 30 A Cooling fan
3
GLOW2
HEATER2
FAN1
30 A Air conditioner
4 EGI MAIN 40 A Engine control system
5
INJ
FAN2
――
6 ABS P 40 A ABS, DSC
7 P.SLIDE L ――
8
TCM
EVVT
20 A Transaxle control system
9 HEATER1 40 A Air conditioner
10
DCDC2 ――
GLOW1
HEATER3
30 A Air conditioner
11 BTN 60 A For protection of various circuits
12 IG KEY2 40 A For protection of various circuits
Maintenance and Care
Owner Maintenance
8-53
