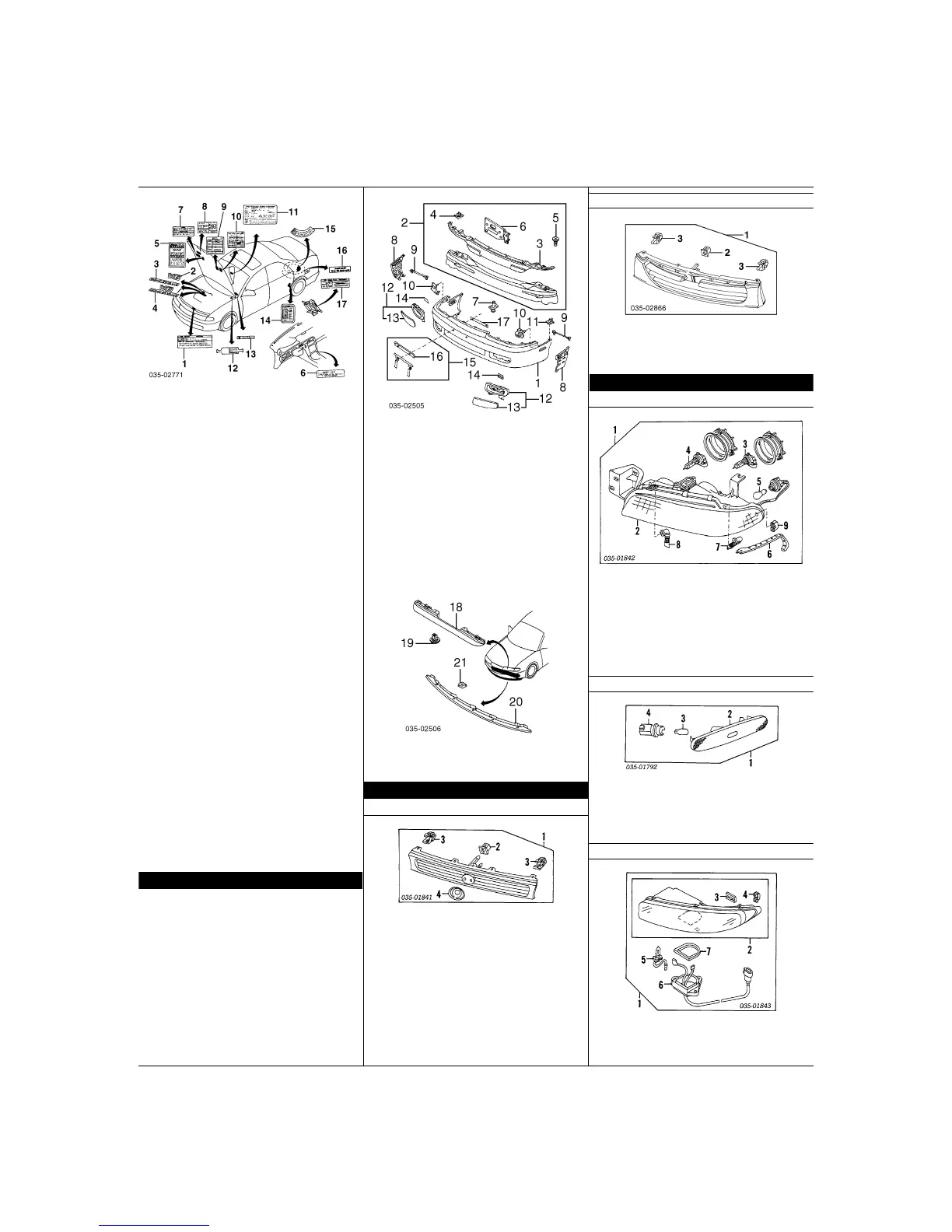

MAZDA 626 1993-97
Procedure Explanation Pages Must Be Used with the Above Text for an Accurate Damage Report.
Comments or suggestions? Need assistance? Call 1-800-854-7030 or 858-578-6550. Ext. 8220. Fax 1-888-256-7969 or 858-549-0629.
157
madpl1_g01_
Page 157—April 22, 2004—13:32:02—Version Manufacturer
3 DOHC 24 Valve K805-13-309
4 6 Cyl DOHC 24 Valve K805-13-309A
5
Caution
A/C GA2A-61-439A
Lifting Point GC1M-37-797
Air Bag Caution
6 On Dash FD01-57-K92
7 On Hood KA78-57-K91
8
Emission Info
USA
4 Cyl
w/Calif Emission
1993-94 GA2C-69-036B
1995-96
Man Trans GC1N-69-036
Auto Trans GC1P-69-036
1997
Man Trans GE7J-69-036
Auto Trans GE7K-69-036
w/o Calif Emission
1993-94 GA2A-69-036
1995-96 GC1M-69-036
1997
Man Trans GD4T-69-036
Auto Trans GD4V-69-036
6 Cyl
w/Calif Emission 93-94 GA2G-69-036C
95-96 GC1T-69-036
97 GD5A-69-036
w/o Calif Emission 93-94 GA2E-69-036
95-96 GC1S-69-036
97 N.A.
Canada
4 Cyl
Man Trans N.A.
Auto Trans N.A.
6 Cyl¶ N.A.
¶Order by Application
9
Oil Info
GA2A-69-D21A
10
Bolt Caution
4 Cyl FS01-69-082A
6 Cyl
To VIN 539404 KL01-69-082A
From VIN 539404 KL01-69-082B
11
Tire Pressure
4 Cyl GA2K-69-014
6 Cyl 93-95 GA2P-69-014
96-97 GD1J-69-014
12
Air Bag Caution
GA2A-67-MX1
13
VIN Plate
GJ51-69-068A
Caution Plate
NA01-69-068A
Rivet Caution
93 GJ21-69-A13
94-97 GJ51-69-A13
14
Child Proof
To 7-10-96 BJ79-72-301
From 7-10-96 GC1M-72-301
15
Temporary Tire
To 6-13-96 GL01-69-073
From 6-13-96 GD1E-69-073A
16
Unleaded Fuel
UB40-69-C61
17
Jack Caution
93-94 GA2A-37-799
95-97 GC1M-37-797
FRONT BUMPER
Illustration Located in Next Column
1
Cover, Front (P)
GAY5-50-03XB-00
(P) Paint to Match
2
Reinforcement Assy
GA2K-50-070H
3
Retainer, Cover¶
GA2K-50-0K1
4
Clip, Retainer¶ (5/Side)
R/L B455-50-038
5
Screw¶ (7/Side)
R/L GA2A-50-Z6
6
Plate, Junction¶
R GA2A-50-0G8D
L GA2A-50-0H8D
¶Included w/Reinforcement Assy
7
Fastener, Cover (3)
BF82-50-233
8
Retainer, Cover Side
R GA2K-50-0J1A
L GA2K-50-0J5A
9
Bracket, Cover Side
R/L GA2E-50-160
10
Plate, Cover Side
R GA2K-50-1B0
LGA2K-50-1C0
11
Grommet
R/L GA2A-50-0Z5
12
Cover Assy, Lamp
1993-95 (P) R GA2K-50-C1XC-00
L GA2K-50-C1YC-00
1996-97
Black R GD1F-50-C11A-03
L GD1F-50-C15A-03
Dark Gray R GD1F-50-C11A-03
L GD1F-50-C15A-03
(P) Paint to Match
13
Cover, Lamp Hole¶
1993-95 R GA2K-50-C12
LGA2K-50-C16
1996-97-Serviced w/Lamp Cover Assy
¶Included w/Lamp Cover Assy
14
Clip, Lamp Cover (2/Side)
R/L GJ21-50-049
15
Frame Assy, License
GA2A-50-170
16
Retainer, Frame Front¶
GN81-50-183
¶Included w/License Frame Assy
17
Retainer, Frame Rear
GD7A-50-180
18
Spoiler, Upper Air
KA79-50-AH1C
19
Grommet, Upper Spoiler (2)
KA78-50-AF4
20
Spoiler, Lower Air
GA2K-50-9J1A
21
Nut, Clip (5)
H260-50-039
GRILLE
1993-95
1
Grille Assy
1993 (P) GA2K-50-710B-00
1994-95
Body Color (P) GA2K-50-710B-00
Bright GA2M-50-710
(P) Paint to Match
2
Fastener, Grille¶ (2)
GA2K-50-708
3
Clip, Grille¶ (4)
B092-50-715
4
Emblem¶
GA2L-51-731
Clip, Emblem¶ (2)
BB0S-50-717
¶Included w/Grille Assy
1996-97
1
Grille Assy (P)
GD1E-50-710C-00
(P) Paint to Match
2
Fastener, Grille (a) (2)
GA2K-50-708
3
Clip, Grille (a) (4)
B092-50-715
(a) Included w/Grille Assy
FRONT LAMPS
COMBINATION LAMP
1
Lamp Assy
R 8DGV-51-030A
L 8DGV-51-040A
2
Lens & Body¶
R GA2K-51-0K0E
L GA2K-51-0L0E
3
Bulb, Headlamp Outer¶
R/L 0000-11-9006
4
Bulb, Headlamp Inner¶
R/L 0000-11-9005
5
Bulb, Signal¶
R/L 0000-11-1157-NA
6
Protector¶
R GA2K-51-065
L GA2K-51-075
7
Hose, Headlamp Outer¶
R/L GA2L-51-069
8
Hose, Headlamp Inner¶
R/L GA2M-51-069
9
Hose, Signal¶
R/L GA2K-51-011
¶Included w/Lamp Assy
SIDE MARKER LAMP
1
Lamp Assy
R GA2A-51-5E0A
L GA2A-51-5F0A
2
Lens & Body¶
R GA2A-51-5E1A
L GA2A-51-5F1A
3
Bulb¶
R/L 0000-11-0194
4
Socket¶
93-94 R/L NA01-51-5E2
95-97 R/L BJ38-51-584
¶Included w/Lamp Assy
FOG LAMP
1
Lamp Assy
R GA2K-51-680E
L GA2K-51-690E
2
Lens & Body Assy¶
R GA2K-51-68YE
L GA2K-51-69YE
3
Brkt, Lamp¶ (a) (2/Side)
R/L GA2K-51-694B
To Next Page
