Maintenance
8-51
t To install a bulb:
1. With
the flat side of the bulb’ s plastic
base facing upward, insert the glass
end
of the bulb into the light assembly .
You
may need to turn the bulb left or
right to line up the grooves in the plas -
tic base with the tabs in the light
assembly. When the grooves are
aligned,
push the bulb into the socket
until the plastic base contacts the rear
of the light assembly.
2. Install
the bulb retaining ring over the
plastic base until it contacts the rear of
the socket. Lock the ring into the
socket by rotating it clockwise until
you feel a ‘‘stop.’’
3. Install
the electrical connector into the
rear of the plastic base until it snaps,
locking it into position.
4. Turn
the headlights on and make sure
that they work properly. If the head-
light
was correctly aligned before you
changed the bulb, you should not
need to align it again.

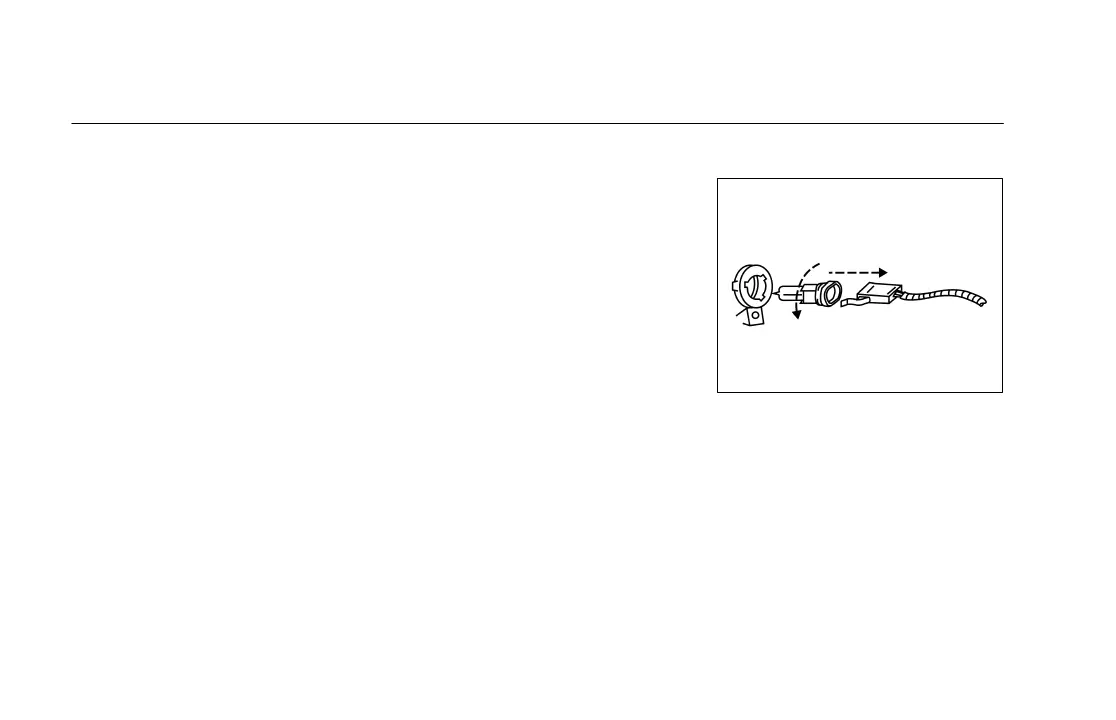

J Foglight Bulb Replacement
1. Remove the bulb socket from the
foglight
by turning counterclockwise.
2. Disconnect the electrical connector
from the foglamp bulb.
3. Connect
the electrical connector to the
new foglamp bulb.
4. Install
the bulb socket in the foglamp
turning clockwise.
