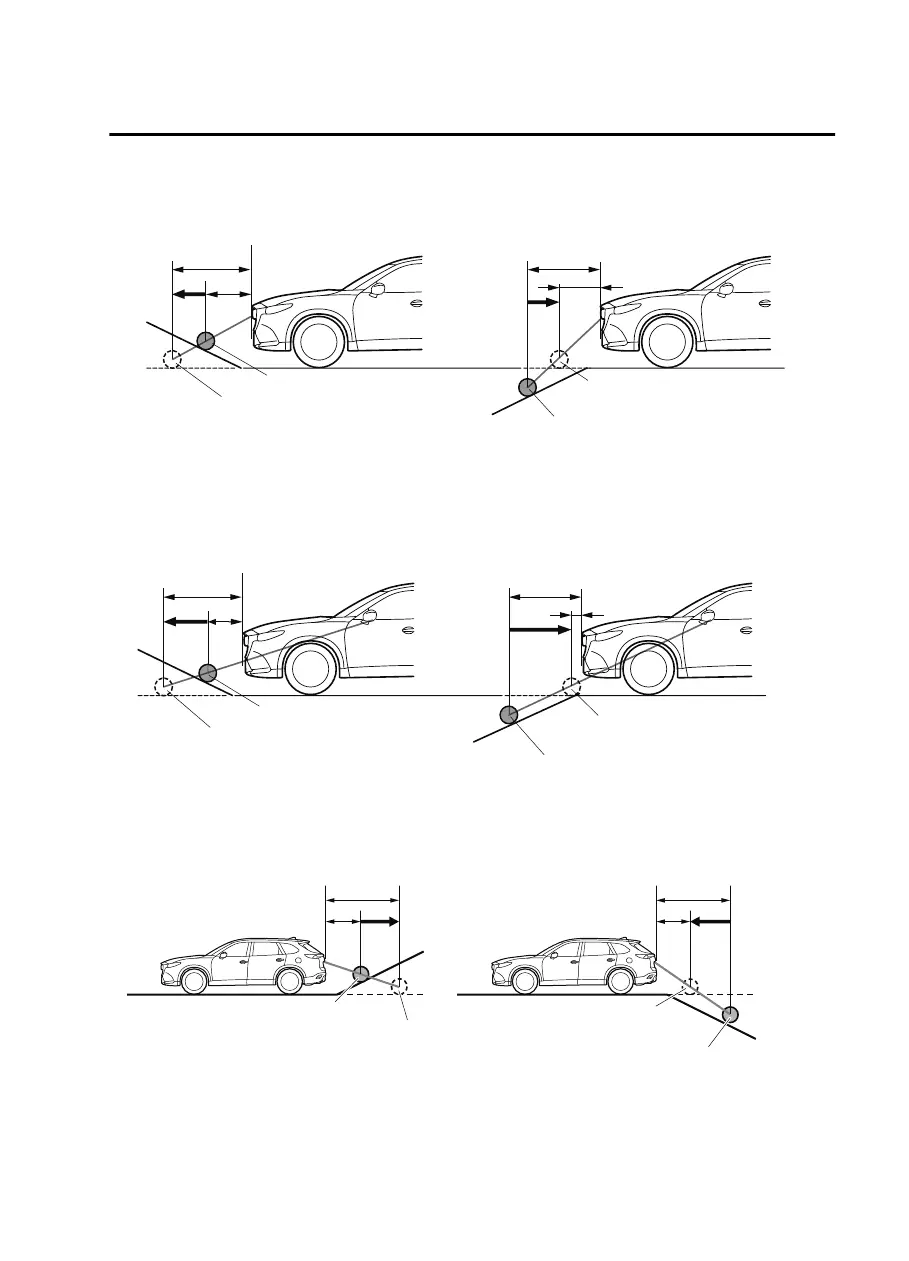

Front camera
Actual obstruction
Actual obstruction
A: Distance of obstruction being viewed on screen
B: Actual distance of obstruction from vehicle
Obstruction appearing
on screen
Obstruction appearing
on screen
Appears further than
actual distance
Appears closer than
actual distance
A
A
B
B
Side camera
Actual obstruction
Actual obstruction
A: Distance of obstruction being viewed on screen
B: Actual distance of obstruction from vehicle
Obstruction appearing
on screen
Obstruction appearing
on screen
Appears further than
actual distance
Appears closer than
actual distance
A
A
B
B
Rear camera
Appears
farther than
actual
distance
Appears
closer than
actual
distance
Object at actual
position
Object at actual position
Object on screen
A: Distance between the vehicle and object displayed on the screen.
B: Actual distance between the vehicle and object.
Object on screen
A
AB
B
