NOTE
If the vehicle is on a slope, obstructions taken by the camera can appear farther or closer
than the actual distance from the vehicle.

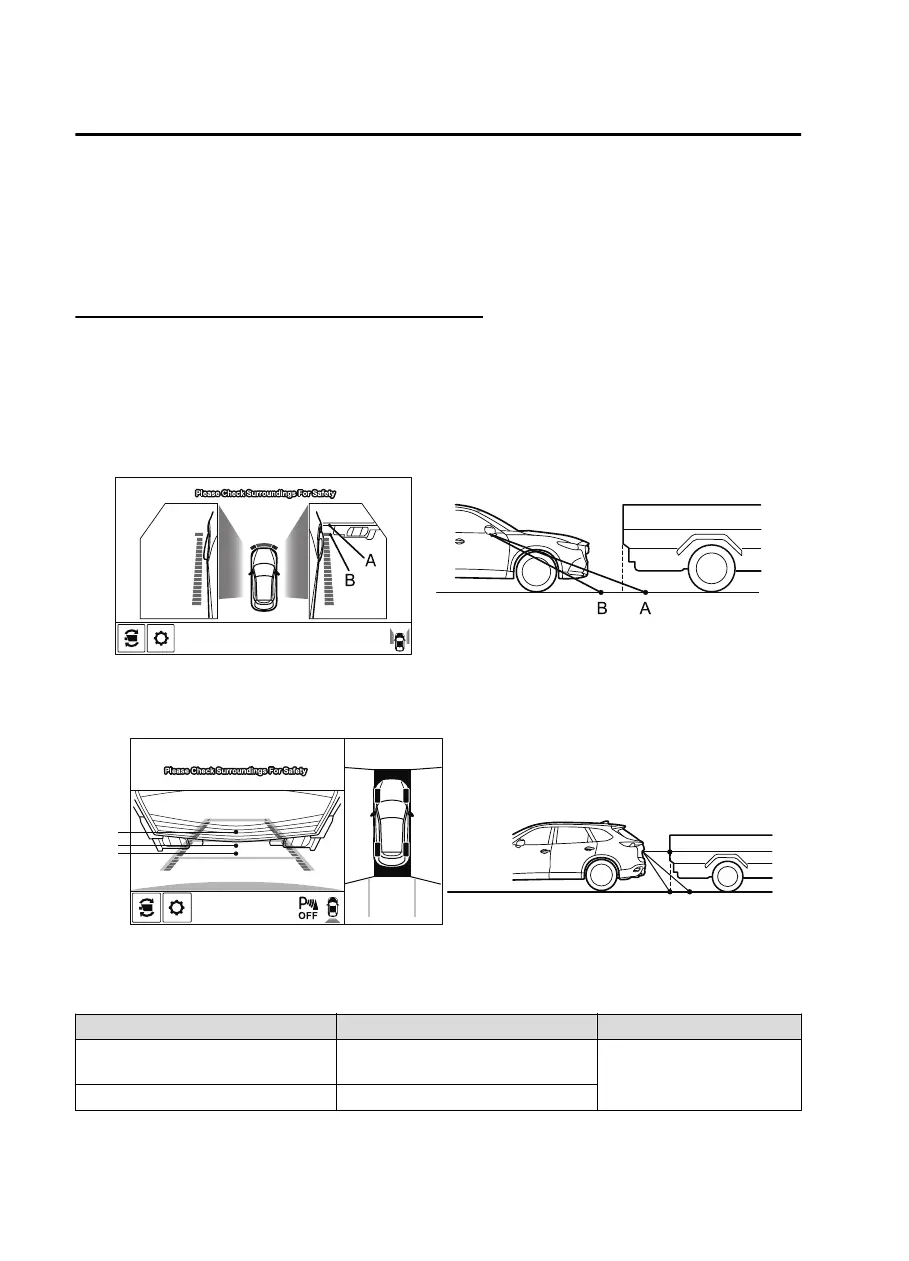

Three-dimensional object at vehicle front or rear
Because the vehicle front end guide lines (side camera) or the distance guide lines (rear
camera) are displayed based on a flat surface, the distance to the three-dimensional object
displayed on the screen is different from the actual distance.
Side camera
(Actual condition)(Screen display)
Rear camera
(Actual condition)
Sensed distance on screen A > B > C Actual distance B > C = A
A
A
B
B
C
C
(Screen display)
▼
System Problem Indication
Center display indication Cause Action to be taken
“No image signal reception” is dis‐
played
The control unit might be damaged.
Have your vehicle inspected
by an Authorized Mazda
Dealer.
Screen is pitch-black and blank The camera might be damaged.
When Driving
i-ACTIVSENSE
4-206
