Viewing the screen
Display/Icon Content

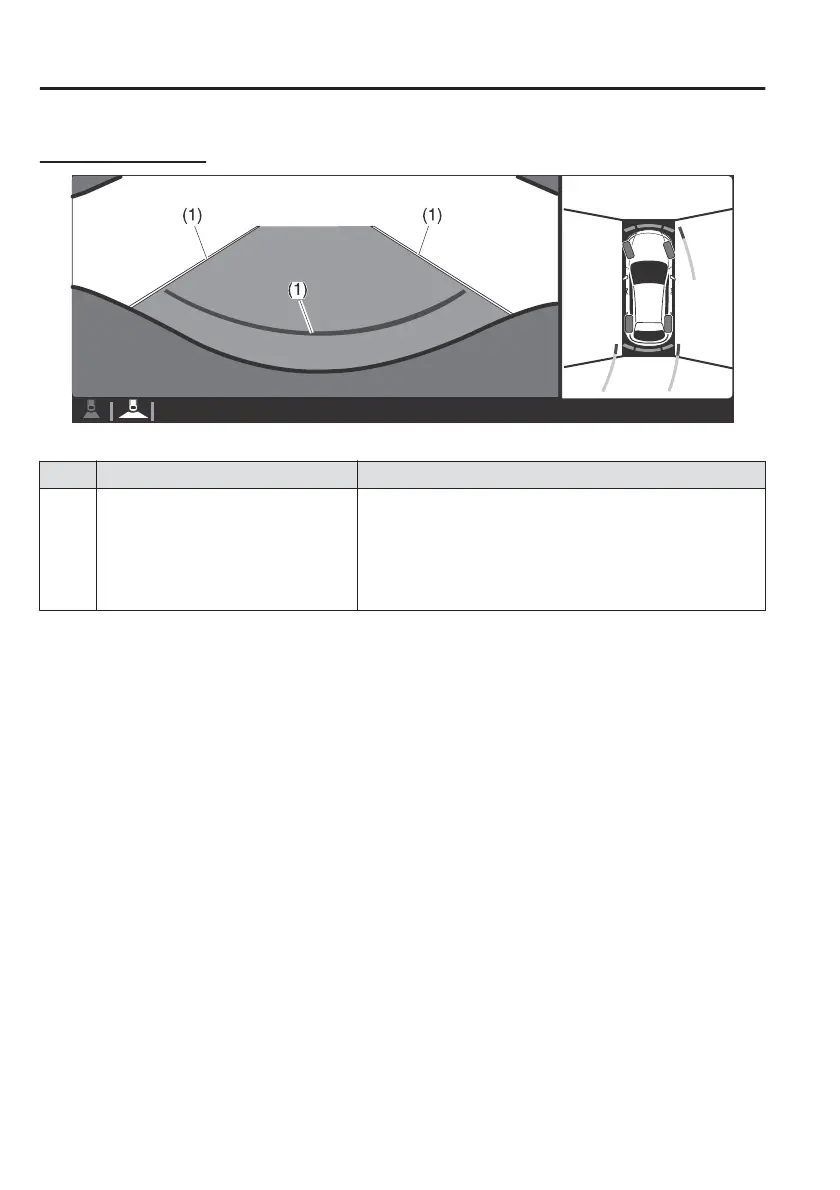

(1) Extended vehicle width lines and
distance guide lines (blue & red)
These guide lines indicate the approximate width of the
vehicle and distance to a point measured from the rear
of the vehicle (from the end of the bumper).
x
The red lines indicate the points up to about 0.5 m
(19 in) from the rear end of the bumper.
NOTE
The top view/rear wide view screen displays the image at the rear of the vehicle at a
wide angle and corrects the image to help detect approaching obstructions from the
side. Therefore, it diers from the actual view.
