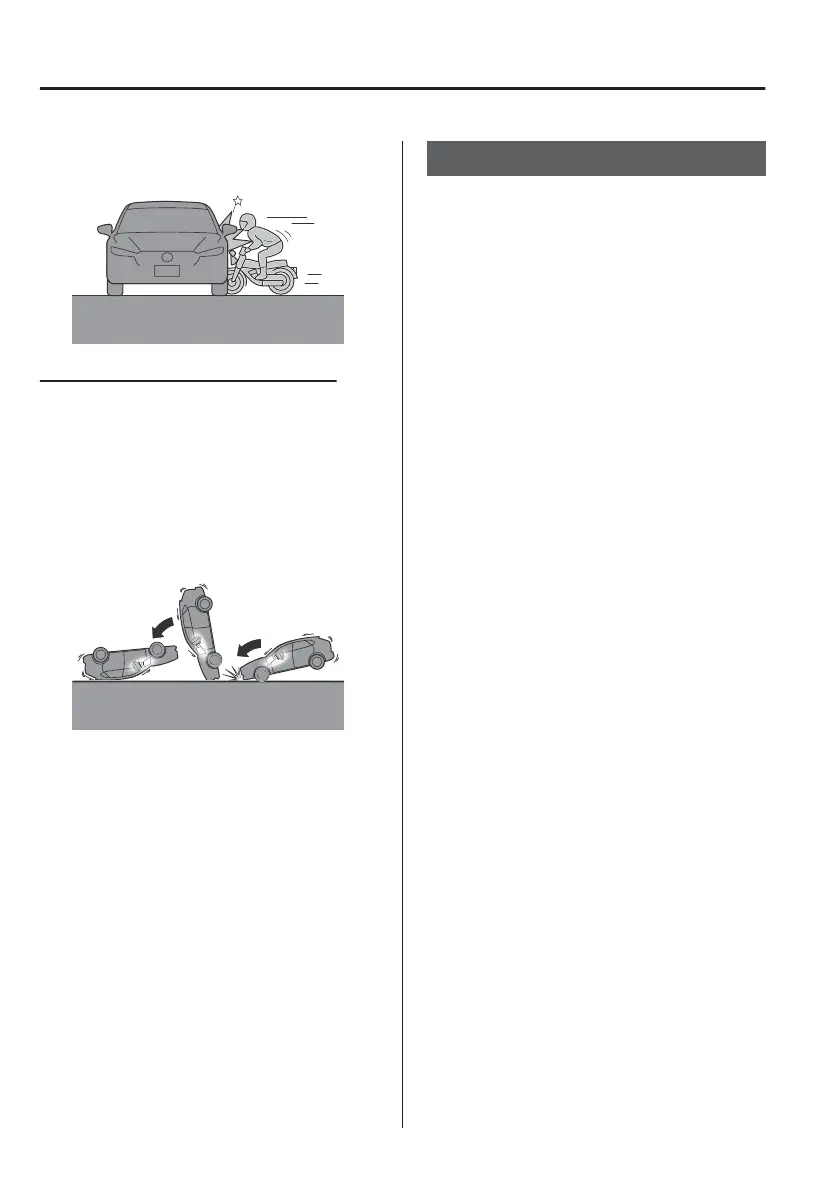

Side impacts with two-wheeled
vehicles
Limitations to roll-over detection:
The following illustration is an example
of an accident that may not be
detected as a roll-over accident.
Therefore, the front seat belt
pretensioners and curtain air bags may
not deploy.
Pitch end over end
Constant Monitoring
▼
Constant Monitoring
The following components of the air
bag systems are monitored by a
diagnostic system:
x
Front air bag sensors
x
Crash sensors, and diagnostic
module (SAS unit)
x
Side crash sensors
x
Air bag modules
x
Seat belt pretensioners
x
Air bag/Seat belt pretensioner
system warning light
x
Related wiring
x
Driver seat slide position sensor
x
Front passenger air bag deactivation
switch
x
Front passenger air bag deactivation
indicator light
The diagnostic module continuously
monitors the system's readiness. This
begins when the power switch is
switched ON and continues while the
vehicle is being driven.
Essential Safety Equipment
SRS Air Bags
2-66
