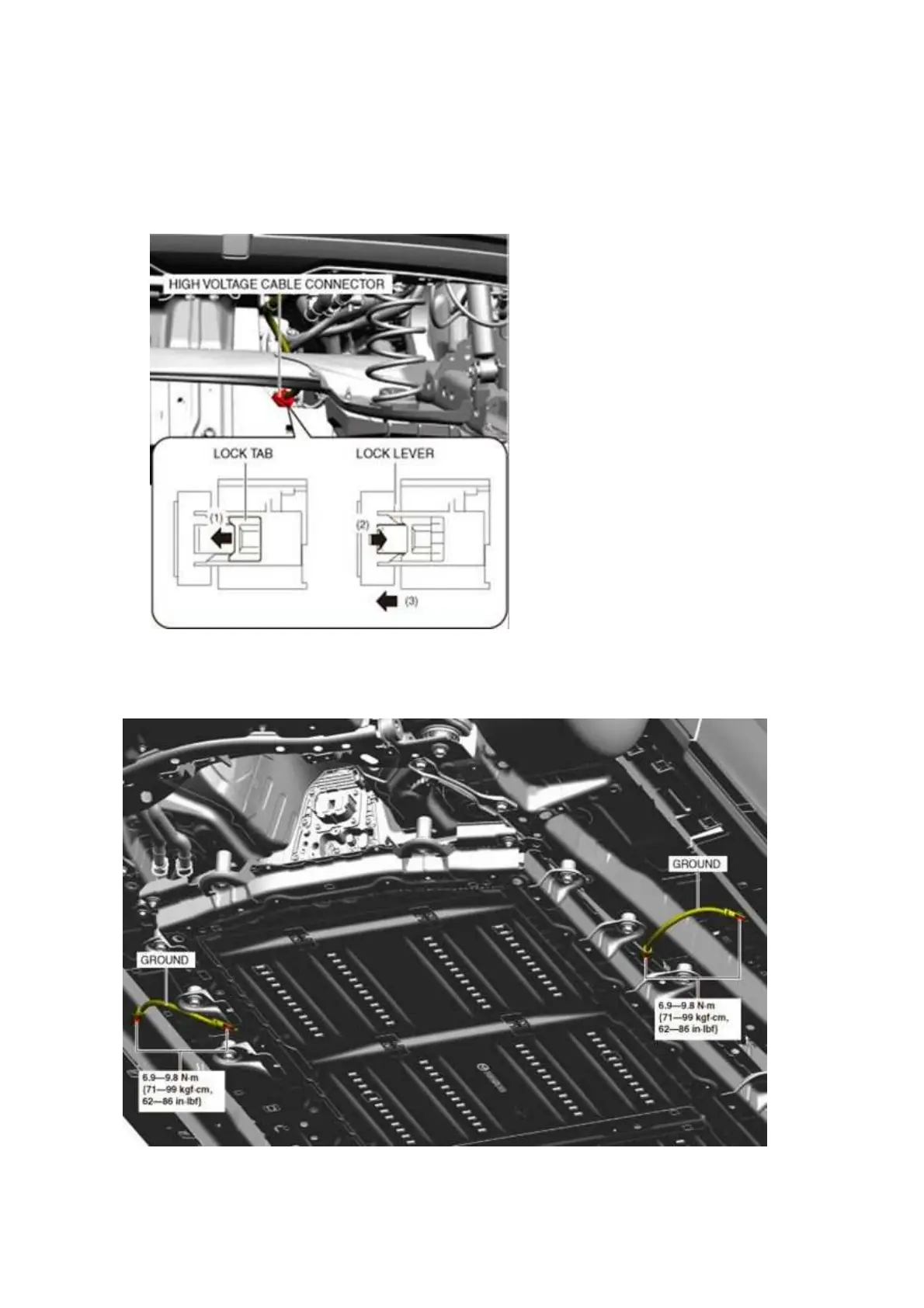

21) Wear insulating gloves and disconnect the high voltage cable connector shown in the figure.
・
After disconnecting the high voltage cable connectors, wear insulating gloves and wrap
the terminals with electrical tape to insulate them.
(1) Pull out the lock tab.
(2) Pull out the connector while pressing the lock lever.
22) Remove the bolts and ground cables shown in the figure.
22
