qFuse Panel Description

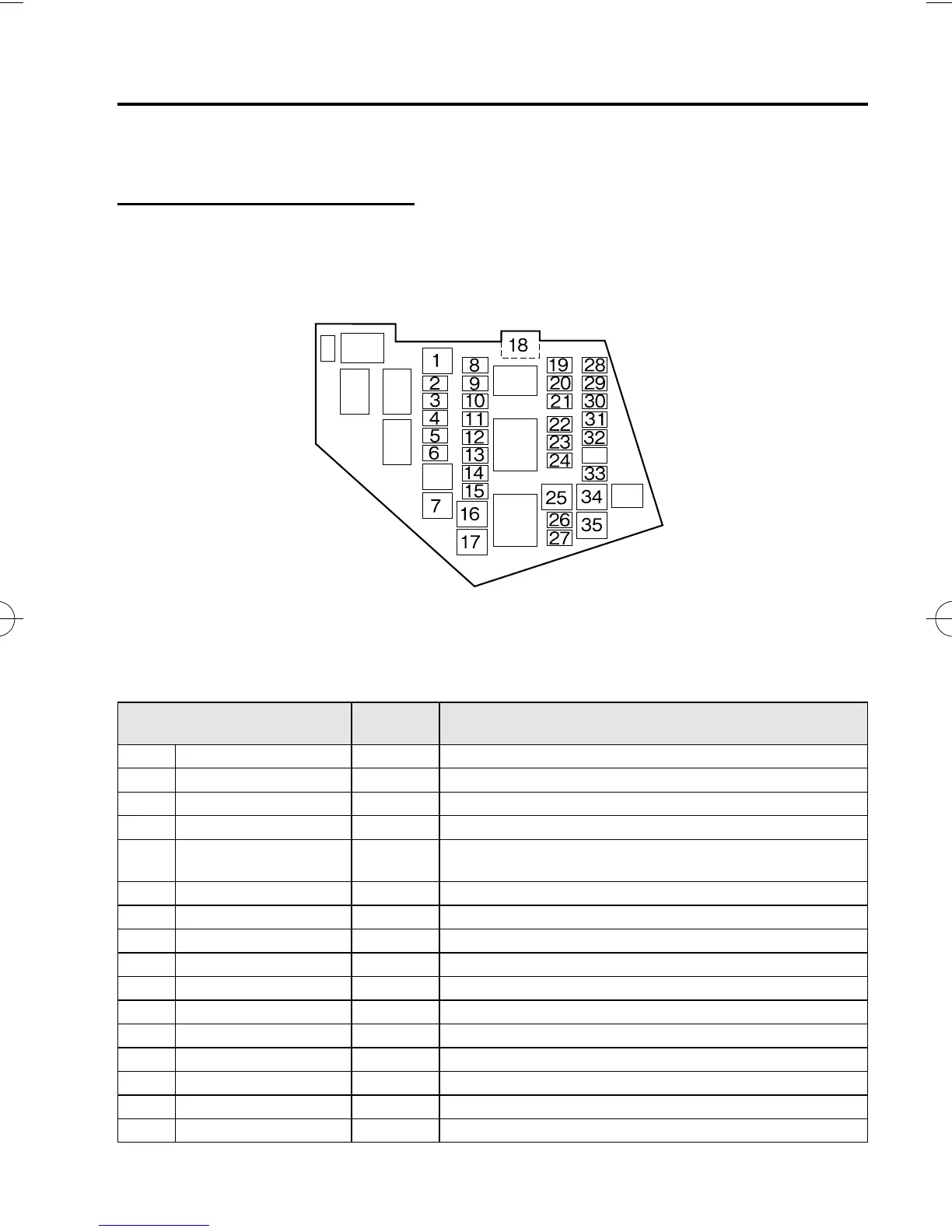

Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 FAN 30 A Cooling fan
2 FAN 7.5 A Cooling fan
3 DEFOG 20 A Rear window defroster
4 H/CLEAN ――
5 ROOM 15 A
Overhead lights, Luggage compartment light, For protection of
various circuits
6 IG KEY2 15 A For protection of various circuits
7 HEATER 40 A Air conditioner
í
8 ABS 30 A ABS
9 FOG 15 A Front fog lights
í
10 R.FOG ――
11 RHT L 30 A Power retractable hardtop (LH)
í
12 RHT R 30 A Power retractable hardtop (RH)
í
13 MAG 7.5 A Air conditioner
í
14 ST 20 A Starter
15 TAIL 15 A Taillights, Parking lights, License plate lights, illuminations
16 ABS 40 A ABS
Maintenance and Care
Owner Maintenance
8-47
í
Some models.
