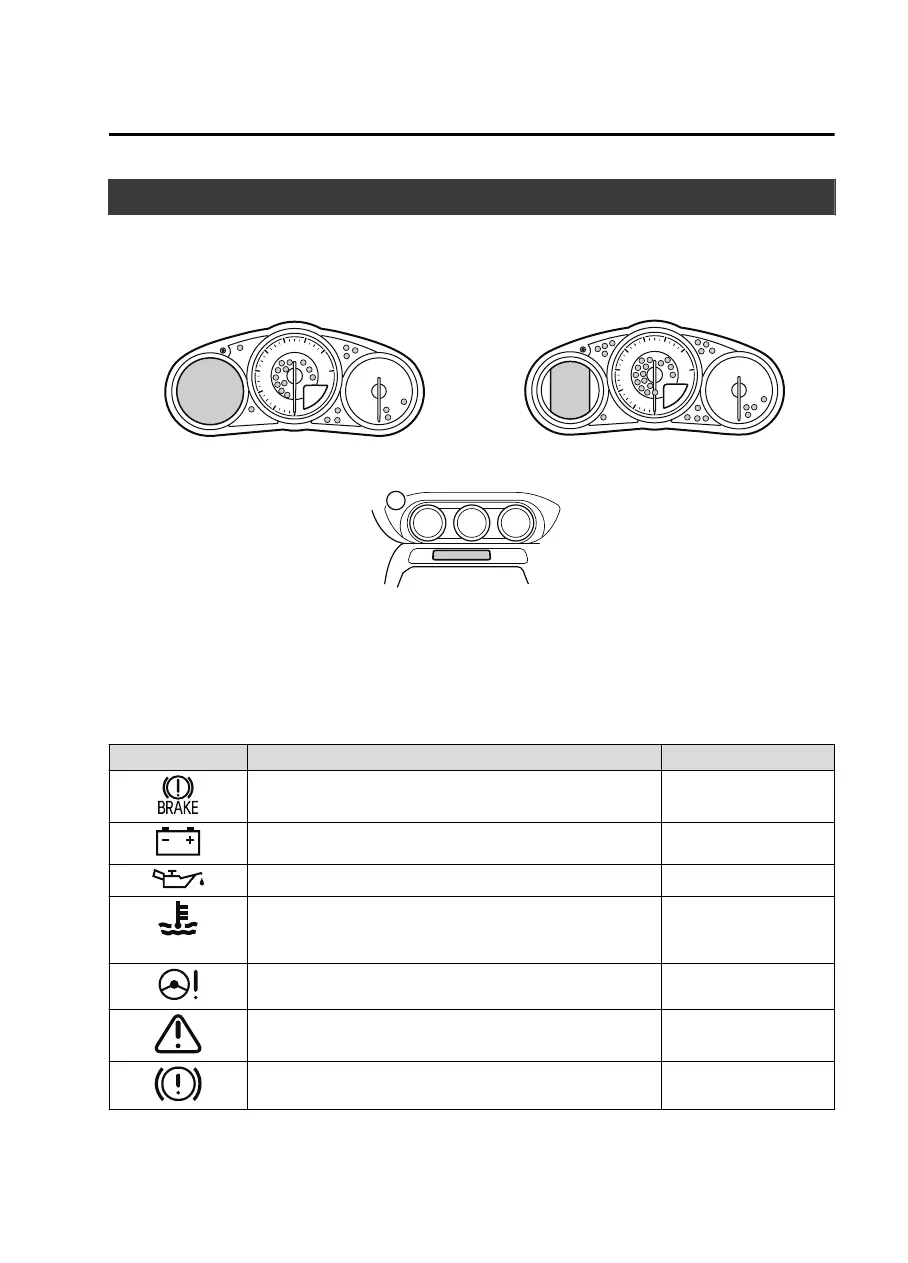

Warning/Indicator Lights
Instrument Cluster varies depending on model and specifications.
Center of Dashboard
Warning/Indicator lights will appear in any of the highlighted areas
Type A
(With Multi-information Display)
Type B
(Without Multi-information Display)
Instrument Cluster
▼
Warning Indication/Warning Lights
These lights turn on or flash to notify the user of the system operation status or a system
malfunction.
Signal Warning Lights Page
Brake System Warning Light
*1*2
7-33
Charging System Warning Indication/Warning Light
*1
7-33
Engine Oil Warning Light
*1
7-33
(Red)
High Engine Coolant Temperature Warning Indication/Warning
Light
*1
7-33
Power Steering Malfunction Indication/Malfunction Indicator
Light
*1
7-33
*
Master Warning Indication/Warning Light
*1
7-36
Electric Vacuum Pump Warning Light
*1
7-36
When Driving
Instrument Cluster and Display
*Some models.
4-27
