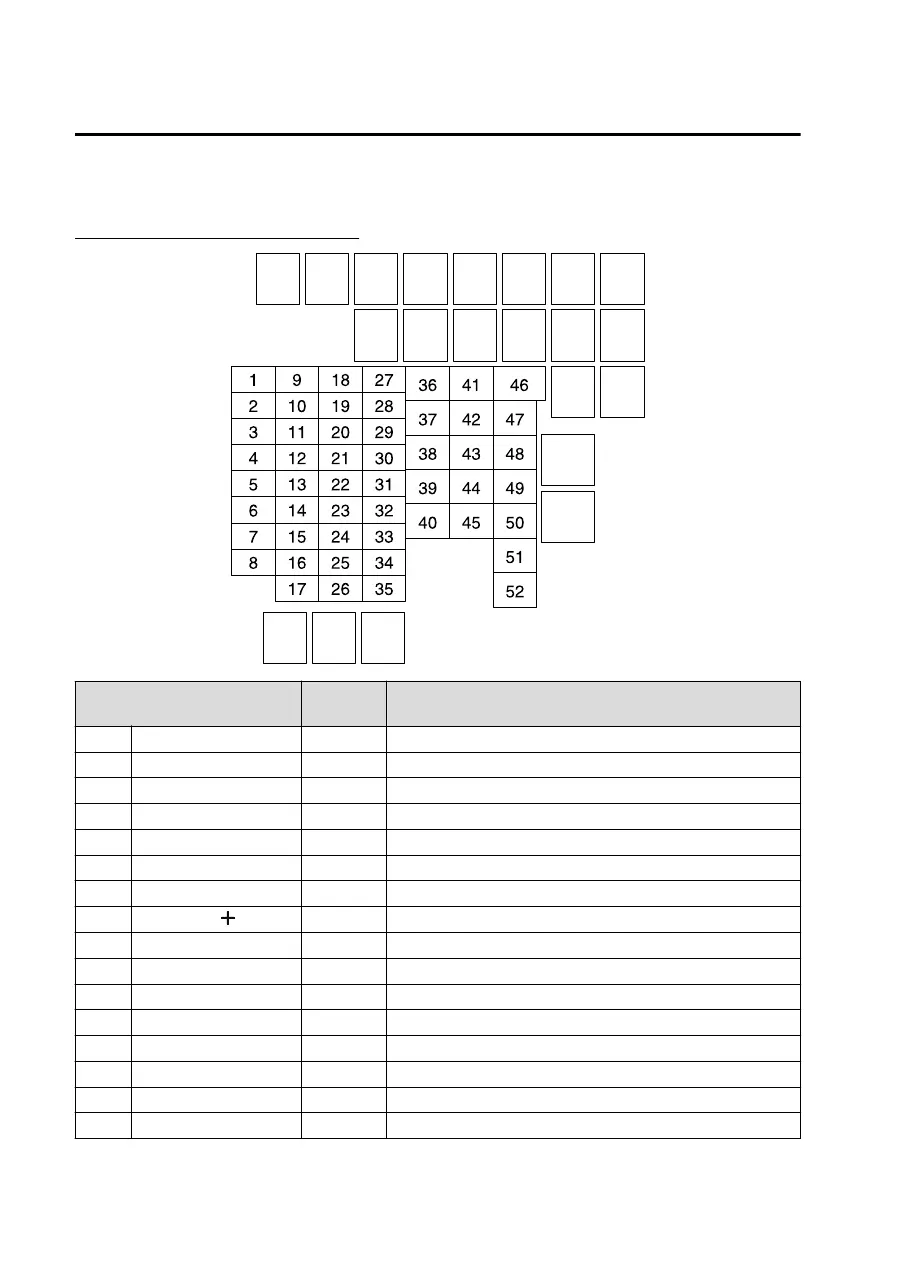

Fuse Panel Description
Fuse block (Engine compartment)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 ENG IG3 5 A ―
2 ENG IG2 5 A ―
3 HORN2 7.5 A Horn
4 C/U IG1 15 A For protection of various circuits
5 ENG IG1 7.5 A Engine control system
6― ― ―
7 INTERIOR 15 A Overhead light
8
ENG
B
7.5 A Engine control system
9 AUDIO2 15 A Audio system
10 METER1 10 A Instrument cluster
11 SRS1 7.5 A Air bag
12 ― ― ―
13 RADIO 7.5 A Audio system
14 ENGINE3 20 A ―
15 ENGINE1 10 A Engine control system
16 ENGINE2 15 A Engine control system
Maintenance and Care
Owner Maintenance
6-50
