DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
51 ― ― ―
52 ENGINE4 20 A Engine control system

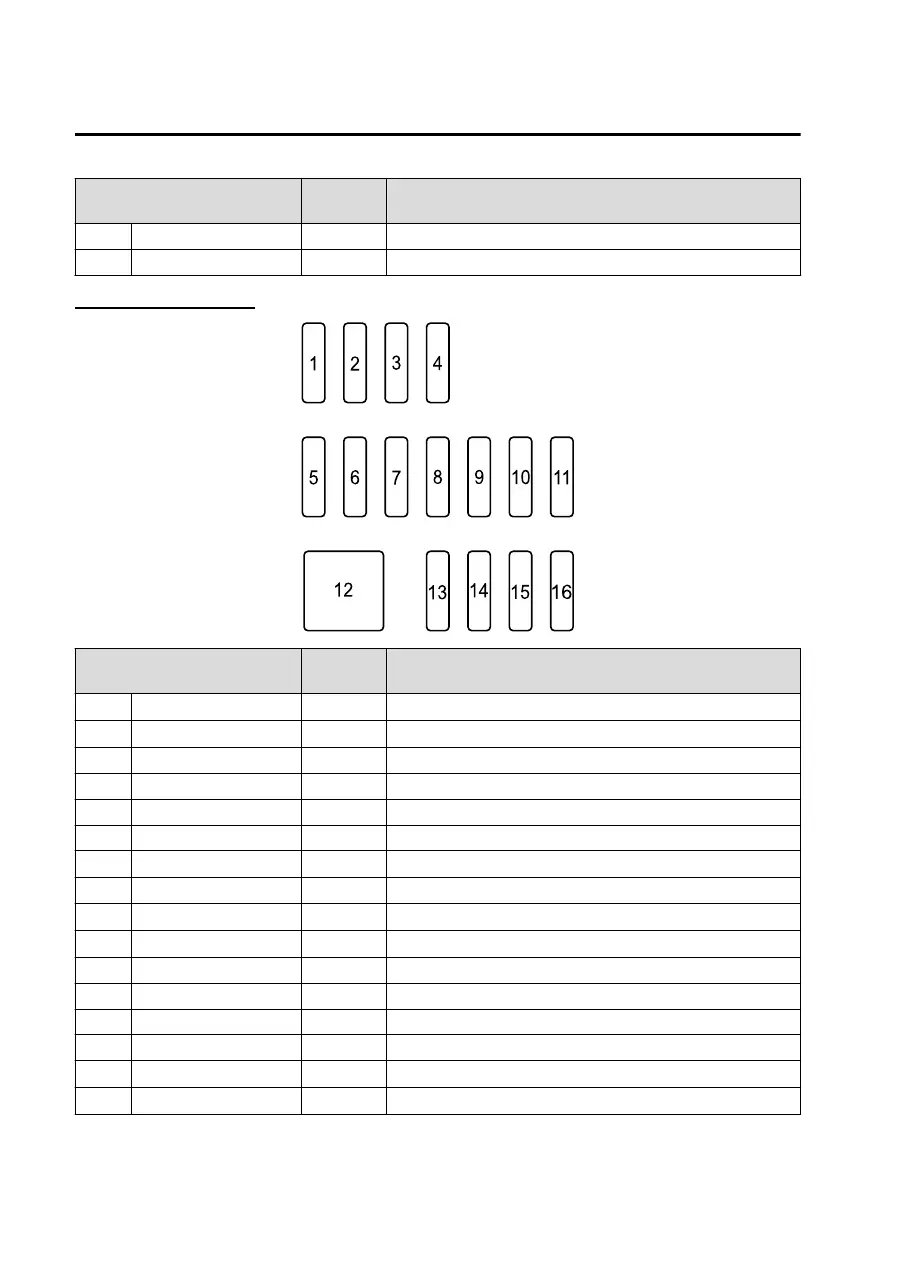

Fuse block (Left side)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 RHT R 30 A
Retractable hardtop (RH)
*
2 RHT L 30 A
Retractable hardtop (LH)
*
3― ― ―
4 ENGINE6 10 A Engine control system
5 F.OUTLET 15 A Accessory sockets
6― ― ―
7 AT IND 7.5 A
AT shift indicator
*
8 MIRROR 7.5 A Power control mirror
9 R_DECK R 30 A
Retractable hardtop (RH)
*
10 R_DECK L 30 A
Retractable hardtop (LH)
*
11 F.WASHER 15 A Windshield washer
12 P.WINDOW 30 A Power windows
13 ― ― ―
14 SRS2/ESCL 15 A Electronic steering lock
15 SEAT WARM 20 A
Seat warmer
*
16 M.DEF 7.5 A
Mirror defogger
*
Maintenance and Care
Owner Maintenance
6-52
*Some models.
