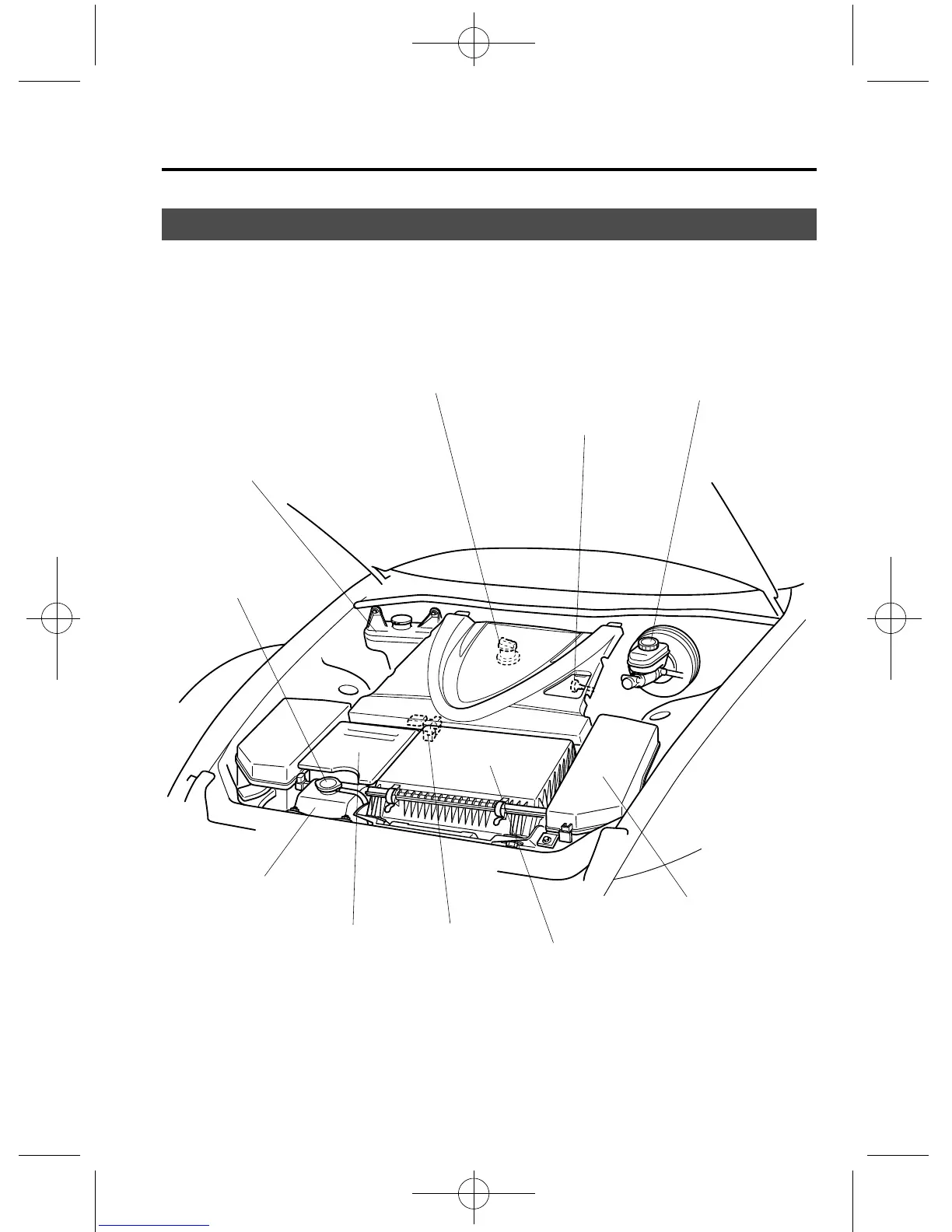

Engine Compartment Overview
Windshield washer
fluid reservoir
Engine oil-filler cap
Engine oil dipstick
Brake/Clutch fluid
reservoir
Cooling system cap
Engine coolant reservoir
Battery
Fuse block
(near battery) Air filter
Fuse block (next
to air filter)
Maintenance and Care
