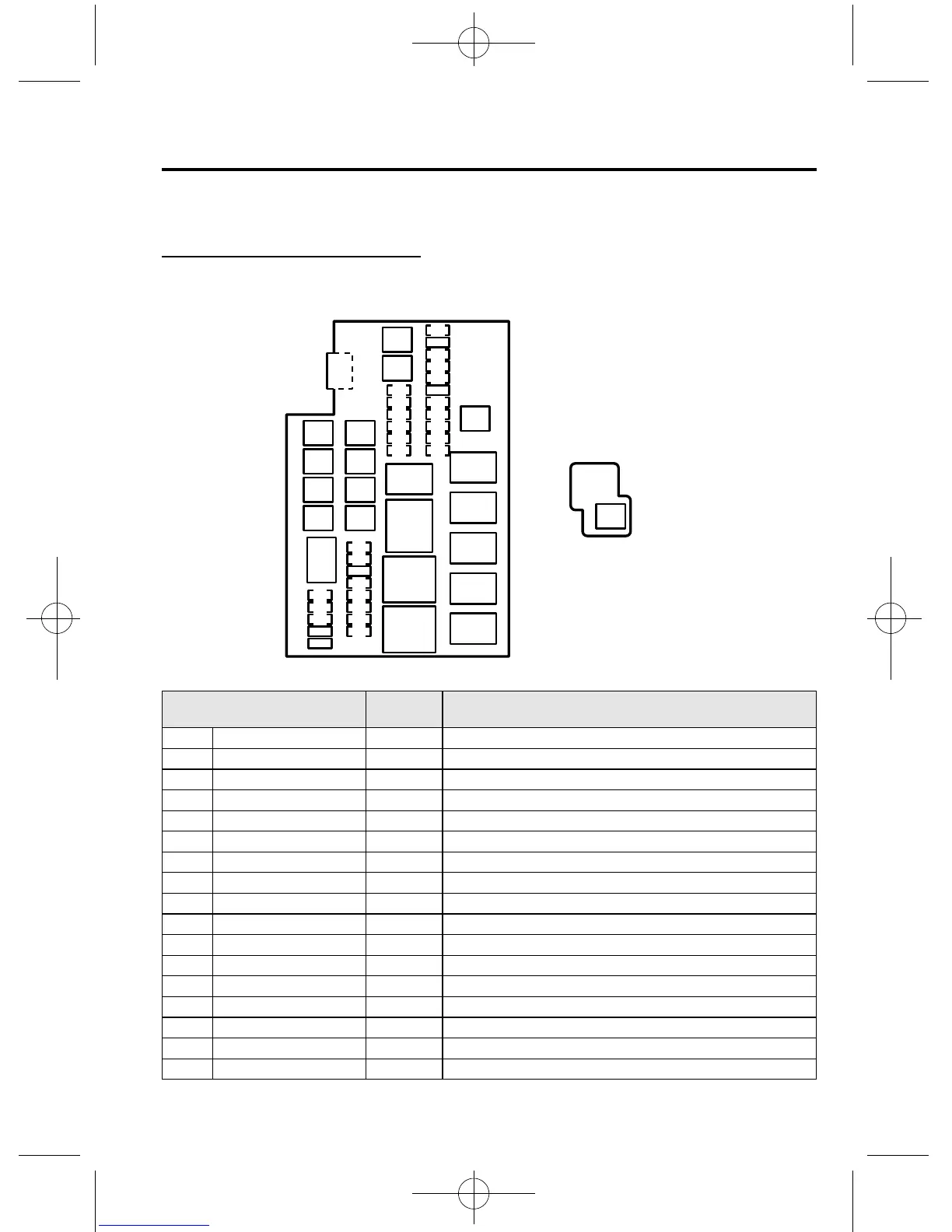

qFuse Panel Description
Fuse block (Engine compartment)
1
2
3
4
5
10
13
14
15
16
17
18
19
11
12
6
20
21
22
29
30
31
32
33
34
35
36
37
38
28
23
24
25
26
27
7
8
9
(Next to air filter)
(Next to battery)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 MAIN 120A For protection of all circuits
2 HEATER 40A Heater
3 AIR PUMP 60A Air pump
4 BTN 30A Power door locks, Illumination, Moonroof
í
5 DEFOG 50A Rear window defroster
6 FAN 1 30A Electric fan 1
7 ABS/DSC 40A ABS, DSC
í
8 ACC 30A Lighter, Power control mirror, Accessory socket, Audio system
9 FAN 2 30A Electric fan 2
10 HEAD 15A Headlight high beams
í
, Headlight cleaner
í
11 HEAD LOW R 15A Headlight low beam (RH)
12 HEAD LOW L 15A Headlight low beam (LH)
13 DRL 15A DRL
í
(Headlight high beams)
14 DSC 30A DSC
í
15 SEAT WARM 20A Seat warmer
í
16 H/CLEAN 20A Headlight cleaner
í
17 R.FOG ――
Maintenance and Care
Owner Maintenance
8-39
í
Some models.
