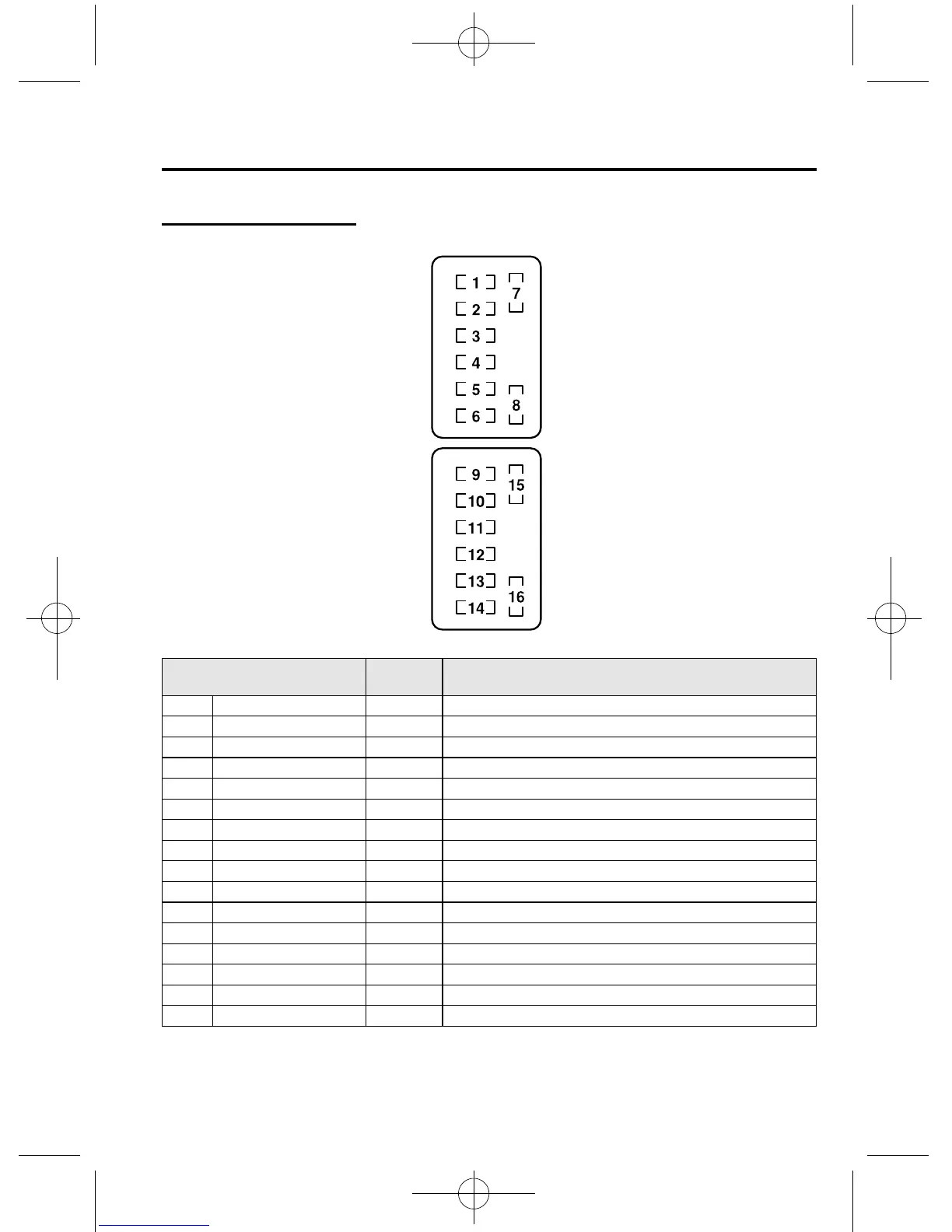

Fuse panel (Dr iver's side)
DESCRIPTION
FUSE
RATING
PROTECTED COMPONENT
1 CIGAR 15A Lighter
2 ACC 7.5A Audio system, Power control mirror
3 OUTLET ――
4 A/C 7.5A Air conditioner
5 METER 10A Instrument cluster
6 ―― ―
7 SPARE ――
8 SPARE ――
9 M.DEF 10A Mirror defroster
í
10 DSC 7.5A DSC
í
11 AUDIO 25A Audio system (Bose
®
Sound System-equipped model)
í
12 D.LOCK 30A Power door locks, Moonroof
í
13 OUTLET 15A Accessory socket
14 ROOM 15A Interior lights
15 SPARE ――
16 SPARE ――
Maintenance and Care
Owner Maintenance
8-41
í
Some models.
