Inspection Method for Sensor Connectors or Wires
1. Connect the WDS or equivalent to the DLC-2.
2. Turn the ignition switch to the ON position (Engine off).
NOTE:
• If the engine starts and runs, perform the following steps at idle.
3. Access the PIDs for the switch you are inspecting.

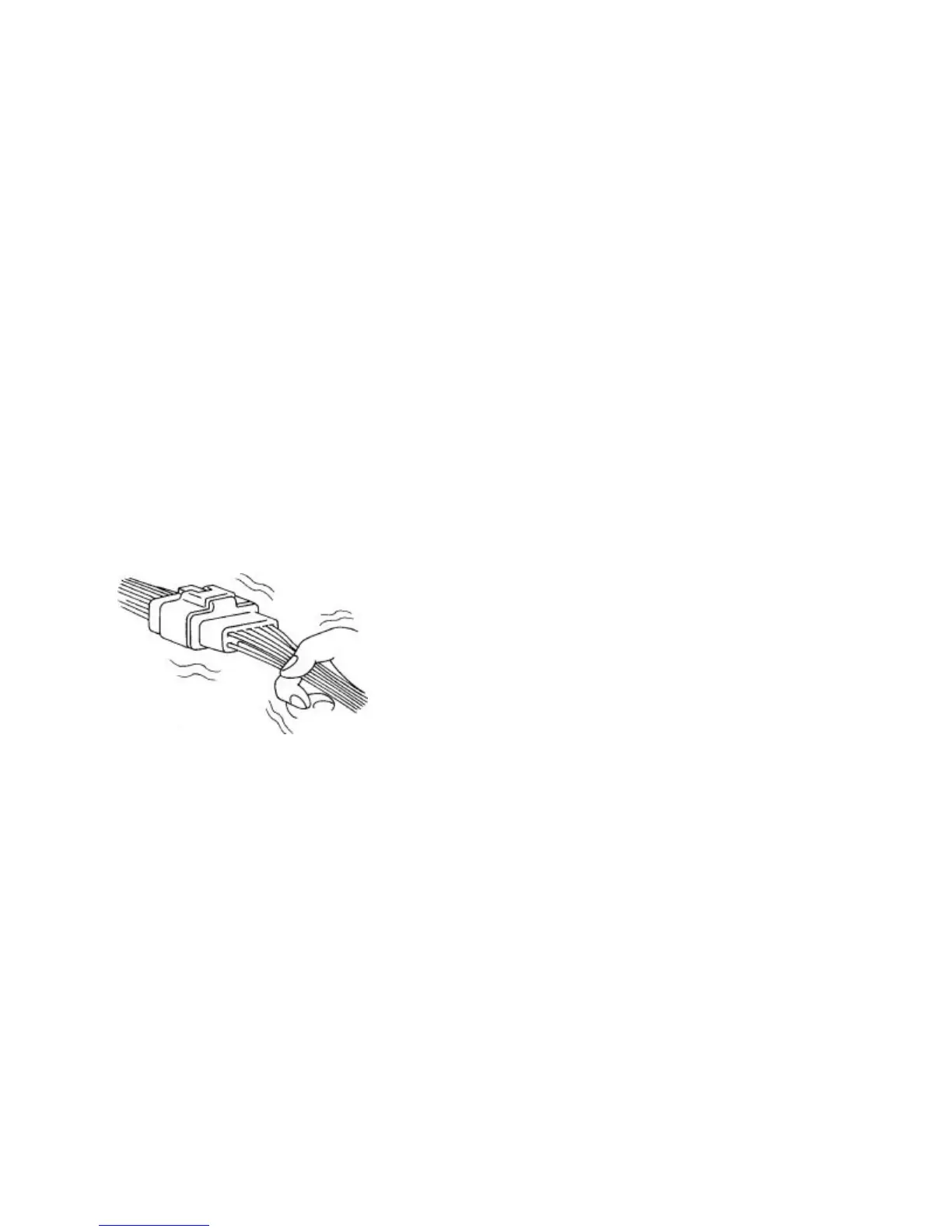

4. Shake each connector or wiring harness a bit vertically and horizontally while monitoring the PID.
• If the PID value is unstable, check for poor connection.
Inspection Method for Sensors
1. Connect the WDS or equivalent to the DLC-2.
2. Turn the ignition switch to the ON position (Engine off).
NOTE:
• If the engine starts and runs, perform the following steps at idle.
3. Access the PIDs for the switch you are inspecting.
(w) RX8-Engine Troubleshooting
Page 3
