• If not as specified, replace the power outer mirror switch.
REARVIEW MIRROR

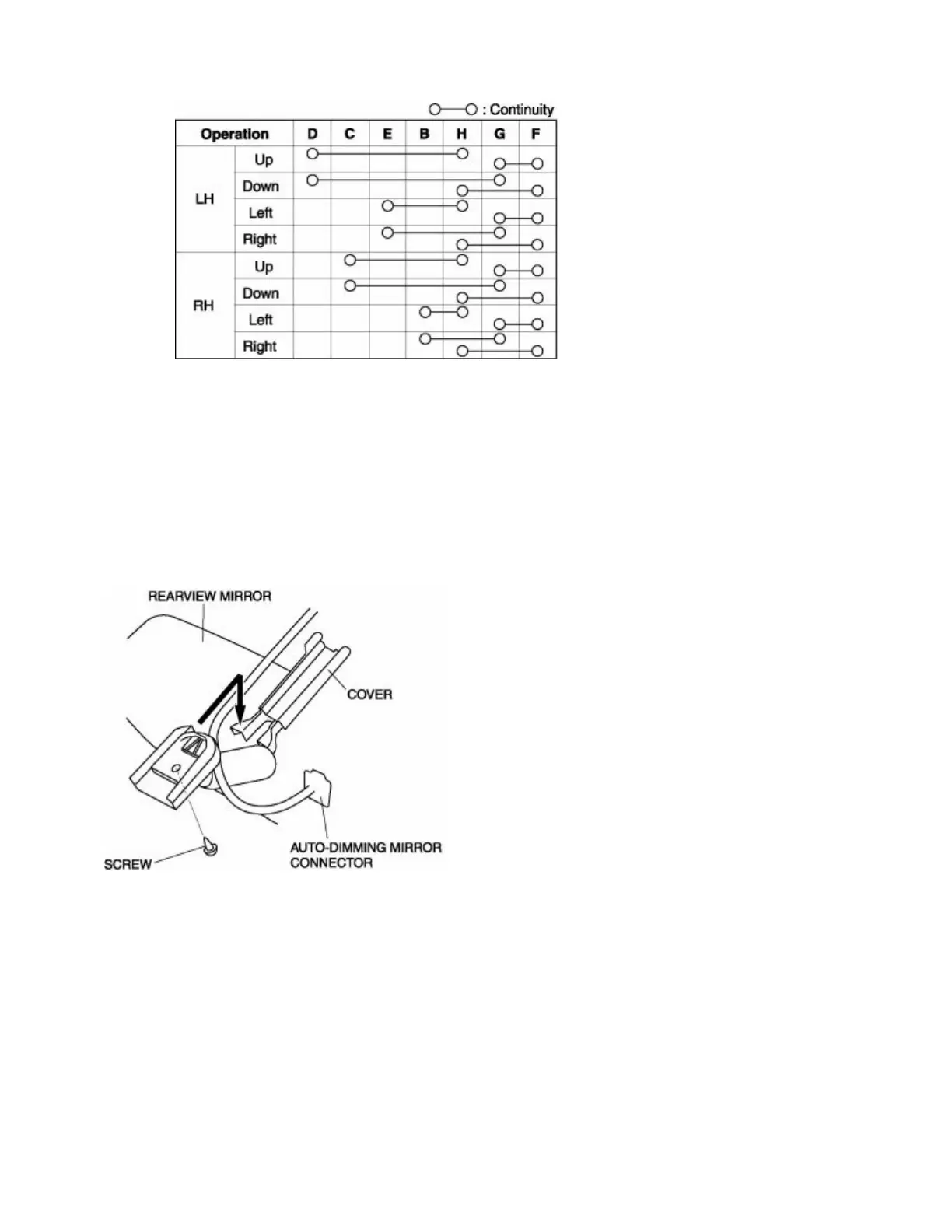

REARVIEW MIRROR REMOVAL/INSTALLATION
Auto-dimming Mirror
1. Disconnect the negative battery cable.
2. Remove the cover.
3. Disconnect the auto-dimming mirror connector.
4. Remove the screw.
5. Remove the rearview mirror.
6. Install in the reverse order of removal.
Normal Type
1. Pull the rearview mirror in the direction indicated by the arrow.
To Next Page
