POWER OUTER MIRROR SWITCH

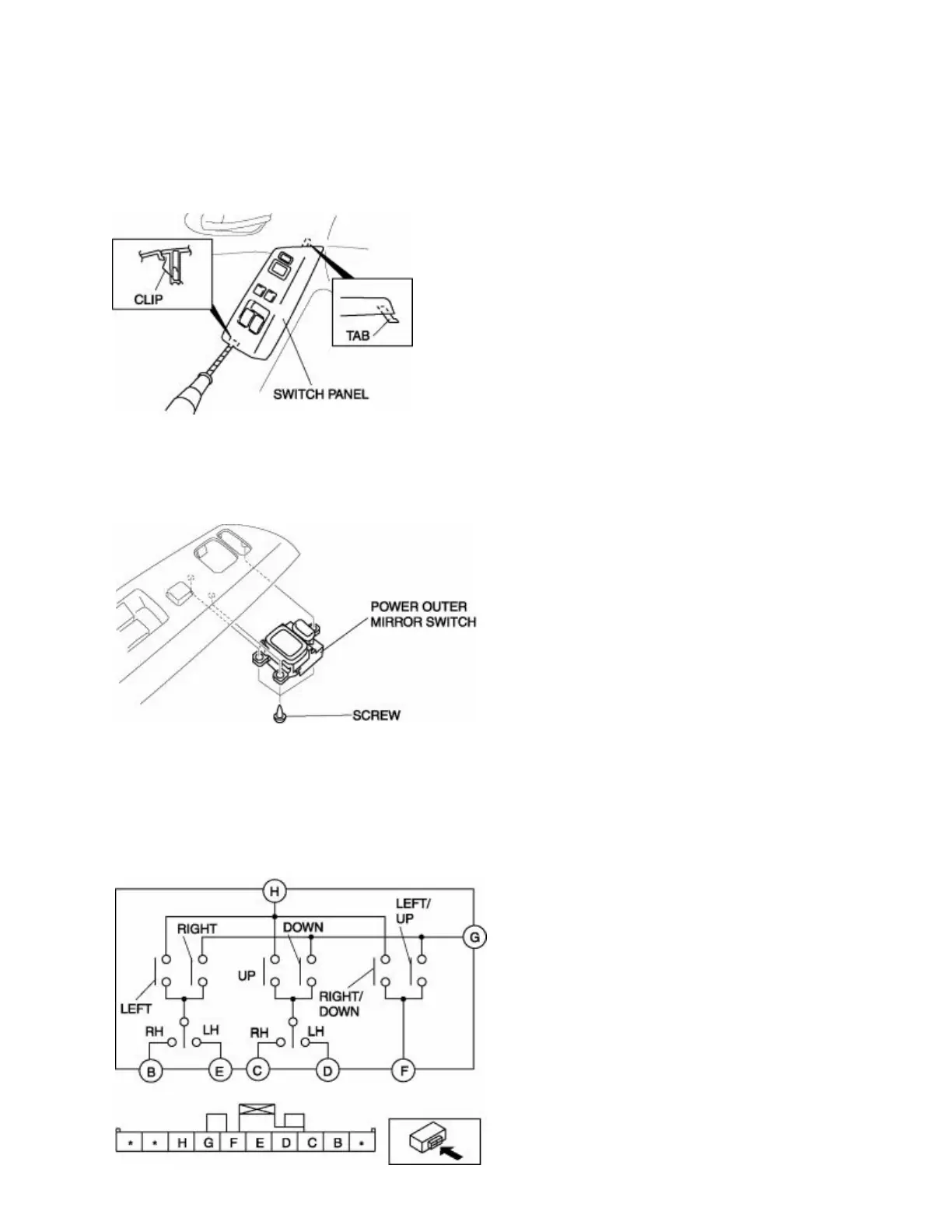

POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Disengage clips using a tape-wrapped flathead screwdriver.
3. Remove the switch panel from the front door trim keeping the tab from catching.
4. Disconnect the power window main switch connector and power outer mirror switch connector.
5. Remove the screws and the power outer mirror switch.
6. Install in the reverse order of removal.
POWER OUTER MIRROR SWITCH INSPECTION
1. Inspect for continuity between the power outer mirror switch terminals using an ohmmeter.
