WINDSHIELD WASHER MOTOR

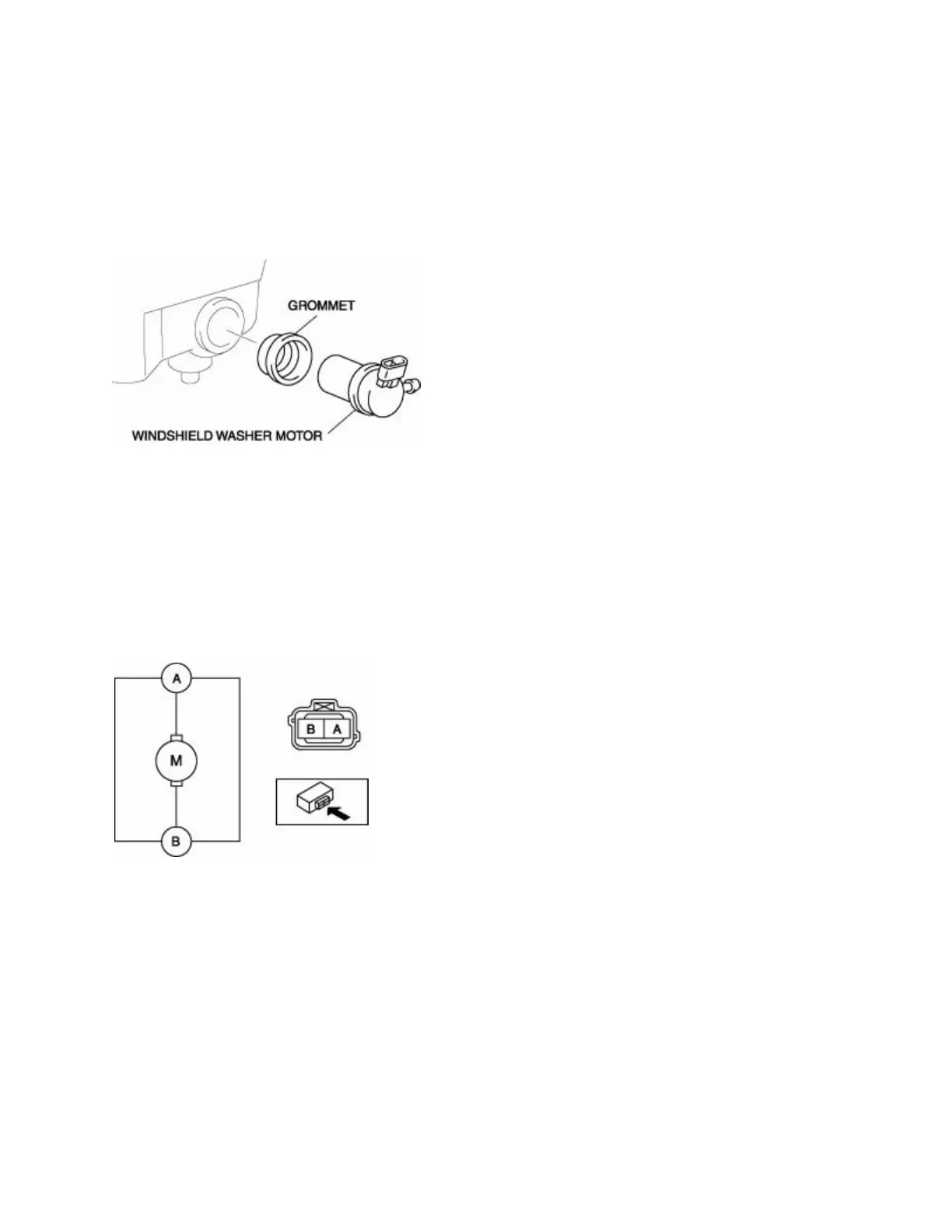

WINDSHIELD WASHER MOTOR REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the windshield washer tank.(See WINDSHIELD WASHER TANK
REMOVAL/INSTALLATION .)
3. Remove the windshield washer motor, then remove the grommet.
4. Install in the reverse order of removal.
WINDSHIELD WASHER MOTOR INSPECTION
1. Disconnect the negative battery cable.
2. Remove the windshield washer tank.(See WINDSHIELD WASHER TANK
REMOVAL/INSTALLATION .)
3. Connect battery positive voltage to windshield washer motor terminal A and terminal B to ground.
4. Verify that the windshield washer motor operates normally.
• If there is any malfunction, replace the windshield washer motor.
