WASHER FLUID-LEVEL SENSOR

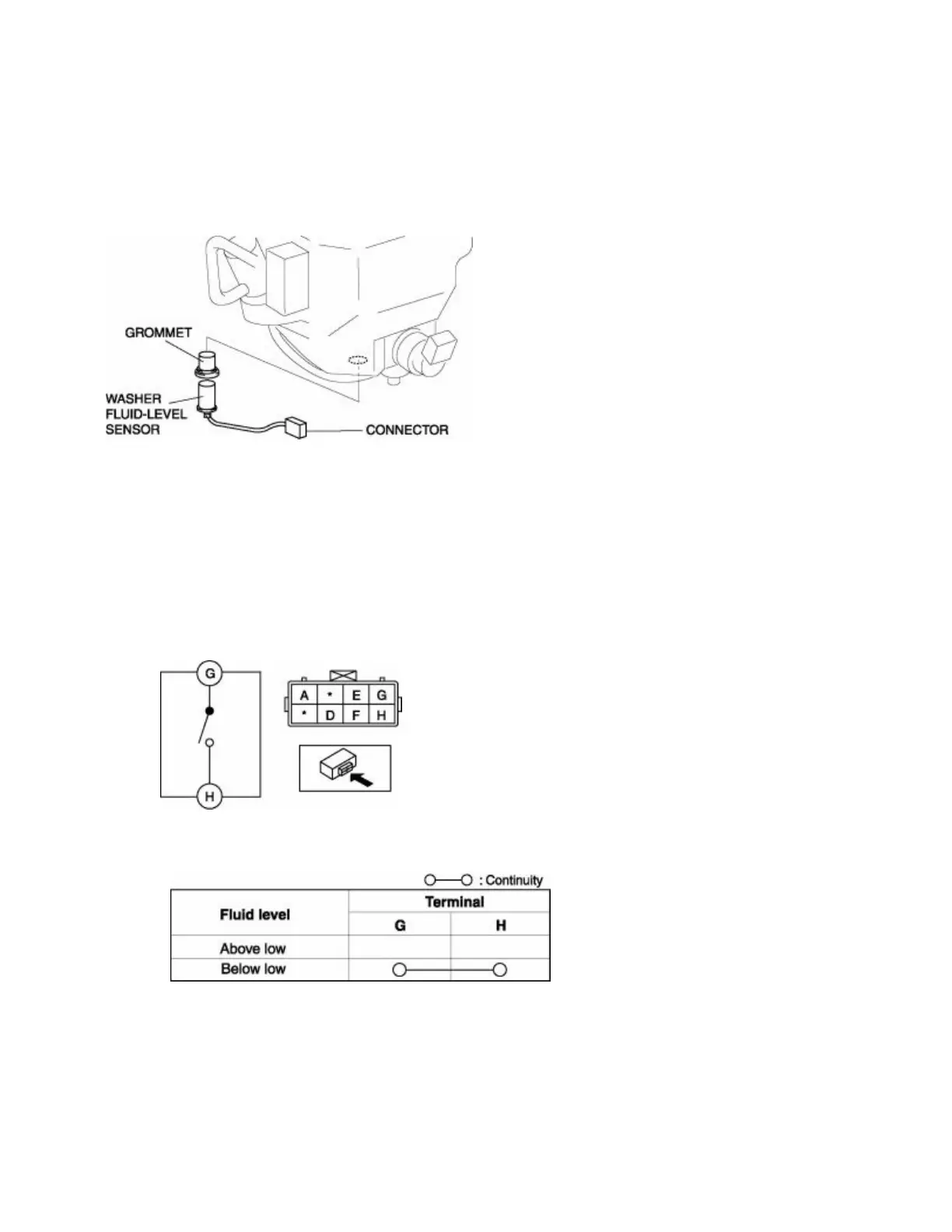

WASHER FLUID-LEVEL SENSOR REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the washer tank. (See WINDSHIELD WASHER TANK REMOVAL/INSTALLATION )
3. Disconnect the connector.
4. Remove the washer fluid-level sensor.
5. Remove the grommet.
6. Install in the reverse order of removal.
WASHER FLUID-LEVEL SENSOR INSPECTION
1. Disconnect the negative battery cable.
2. Inspect for continuity between the washer fluid-level sensor terminals using an ohmmeter.
• If not as specified, replace the washer fluid-level sensor.
