WINDSHIELD WASHER NOZZLE
WINDSHIELD WASHER NOZZLE REMOVAL/INSTALLATION
1. Remove the cowl grille.(See COWL GRILLE REMOVAL/INSTALLATION .)
2. Remove the windshield washer hose from the windshield washer nozzle.(See WINDSHIELD WASHER
HOSE REMOVAL/INSTALLATION .)

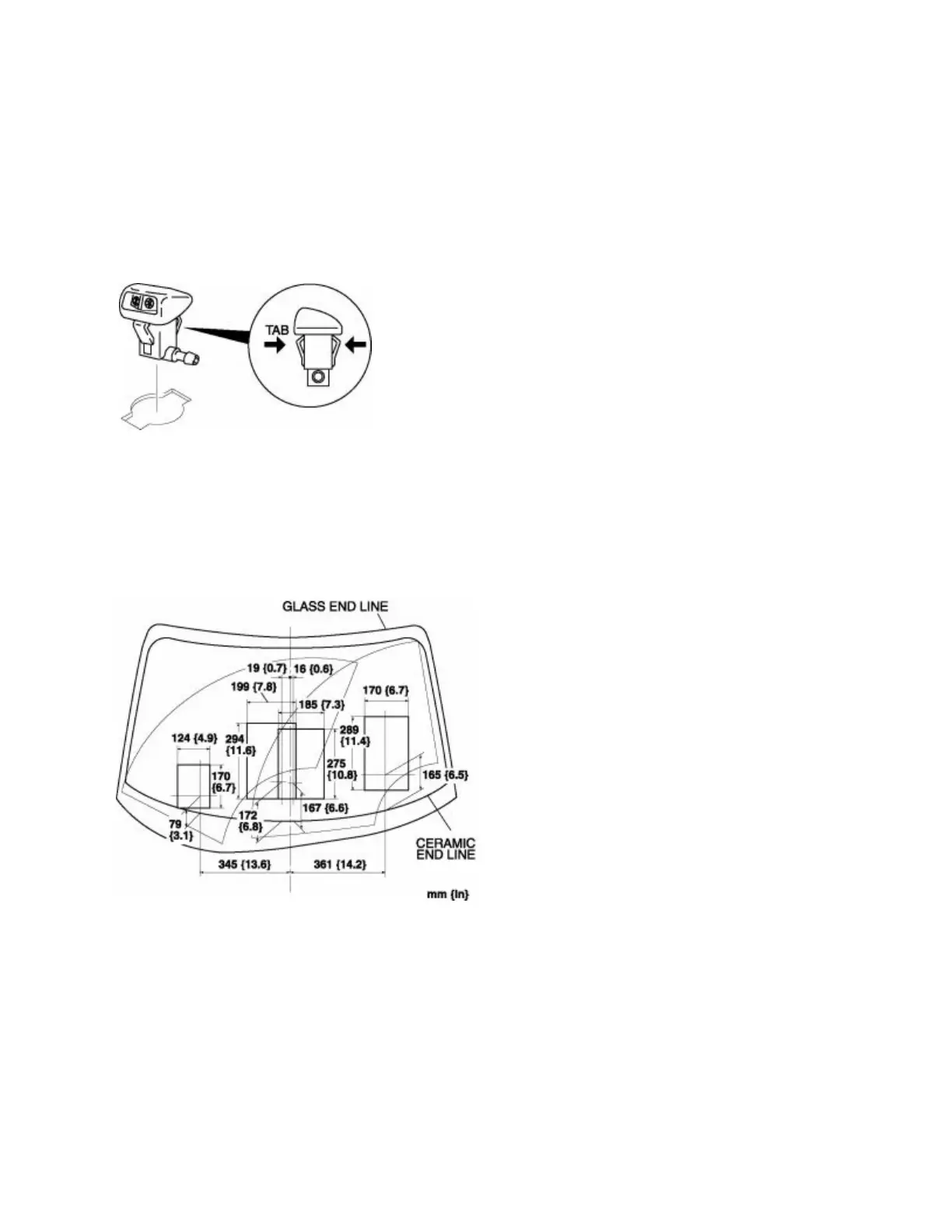

3. Squeeze the tabs of the windshield washer nozzle.
4. Pull the windshield washer nozzle out to remove it.
5. Install in the reverse order of removal.
WINDSHIELD WASHER NOZZLE ADJUSTMENT
1. Insert a needle or an equivalent tool into the spray hole of the windshield washer nozzle, and adjust the
nozzle direction as shown.
