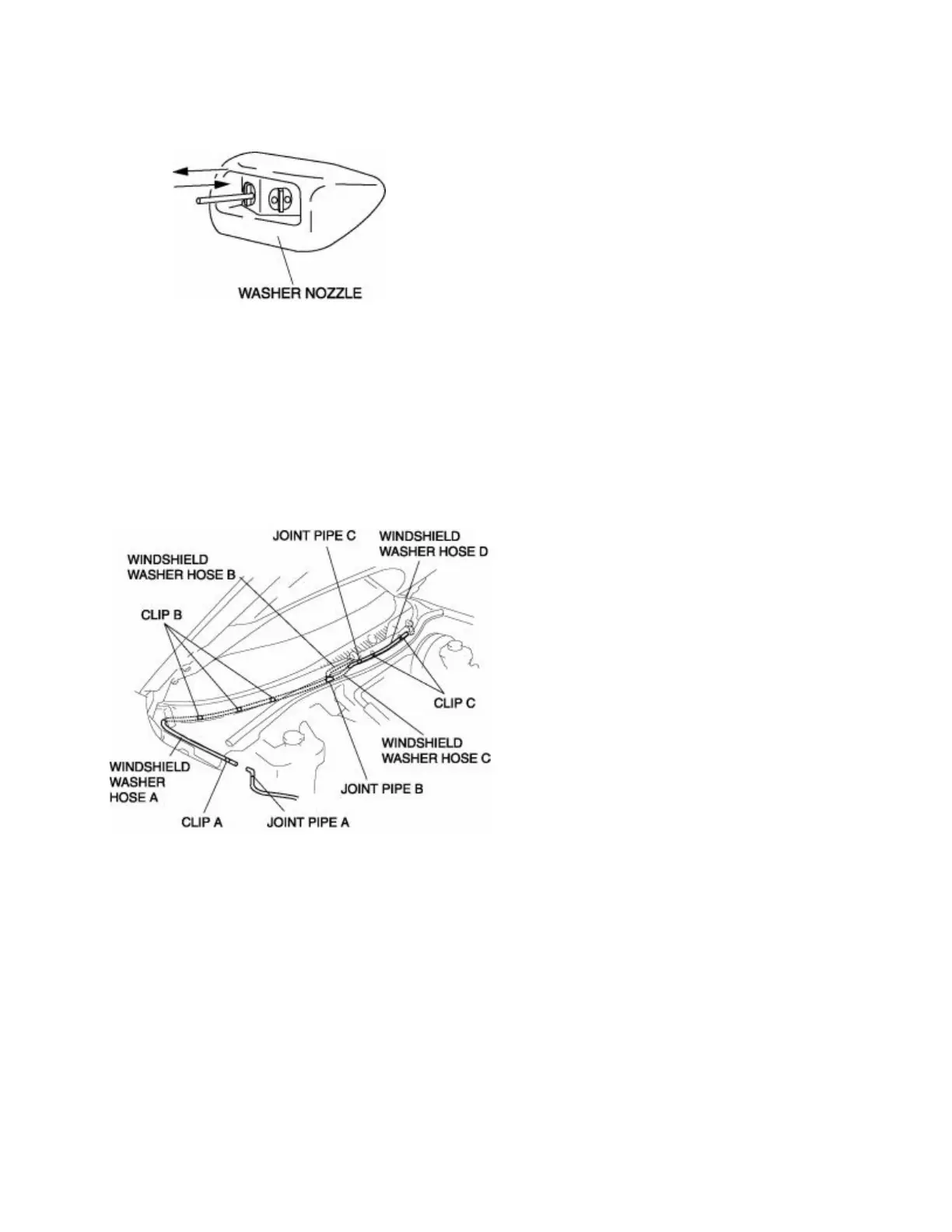

WINDSHIELD WASHER NOZZLE CLEANING
1. Clean the washer nozzle by inserting and moving a needle or an equivalent tool back and forth.
• If the nozzle becomes clogged again after cleaning, remove the hose from washer nozzle. Make
sure there is enough washer fluid. Then turn the washer switch on and flush the inside of the
hose.
WINDSHIELD WASHER HOSE REMOVAL/INSTALLATION
1. Remove the windshield wiper arm and blade.(See WINDSHIELD WIPER ARM AND BLADE
REMOVAL/INSTALLATION .)
2. Disconnect joint pipe A, then remove windshield washer hose A from clip A.
3. Remove the cowl grille.(See COWL GRILLE REMOVAL/INSTALLATION .)
4. Remove clips B.
5. Disconnect joint pipe B, then remove windshield washer hose A.
6. Disconnect windshield washer hose B from the washer nozzle, then remove windshield washer hose B.
7. Disconnect joint pipe C, then remove windshield washer hose C.
8. Remove windshield washer hose D from clips C.
9. Disconnect windshield washer hose D from the washer nozzle, then remove windshield washer hose D.
10. Install in the reverse order of removal.
