HEADLIGHT CLEANER

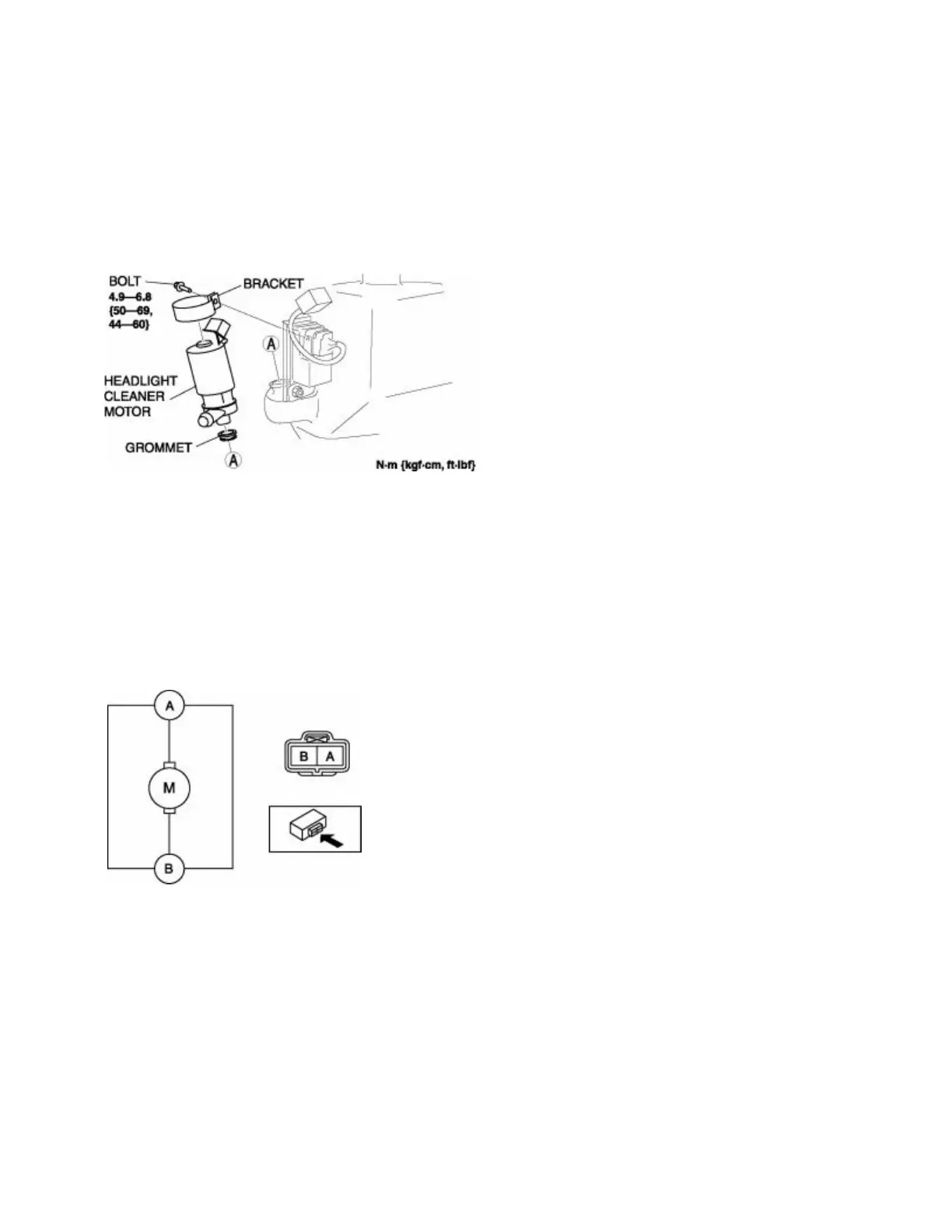

HEADLIGHT CLEANER MOTOR REMOVAL/INSTALLATION
1. Disconnect the negative battery cable.
2. Remove the windshield washer tank.(See WINDSHIELD WASHER TANK
REMOVAL/INSTALLATION .)
3. Remove the bolt, then remove the bracket.
4. Remove the headlight cleaner motor, then remove the grommet.
5. Install in the reverse order of removal.
HEADLIGHT CLEANER MOTOR INSPECTION
1. Disconnect the negative battery cable.
2. Remove the windshield washer tank.(See WINDSHIELD WASHER TANK
REMOVAL/INSTALLATION .)
3. Connect battery positive voltage to headlight cleaner motor terminal A and terminal B to ground.
4. Verify that the headlight cleaner motor operates normally.
• If there is any malfunction, replace the headlight cleaner motor.
HEADLIGHT CLEANER NOZZLE REMOVAL
1. Pull out the headlight cleaner nozzle.
2. While pushing the tab with a tape-wrapped flathead screwdriver, remove the headlight cleaner nozzle.
